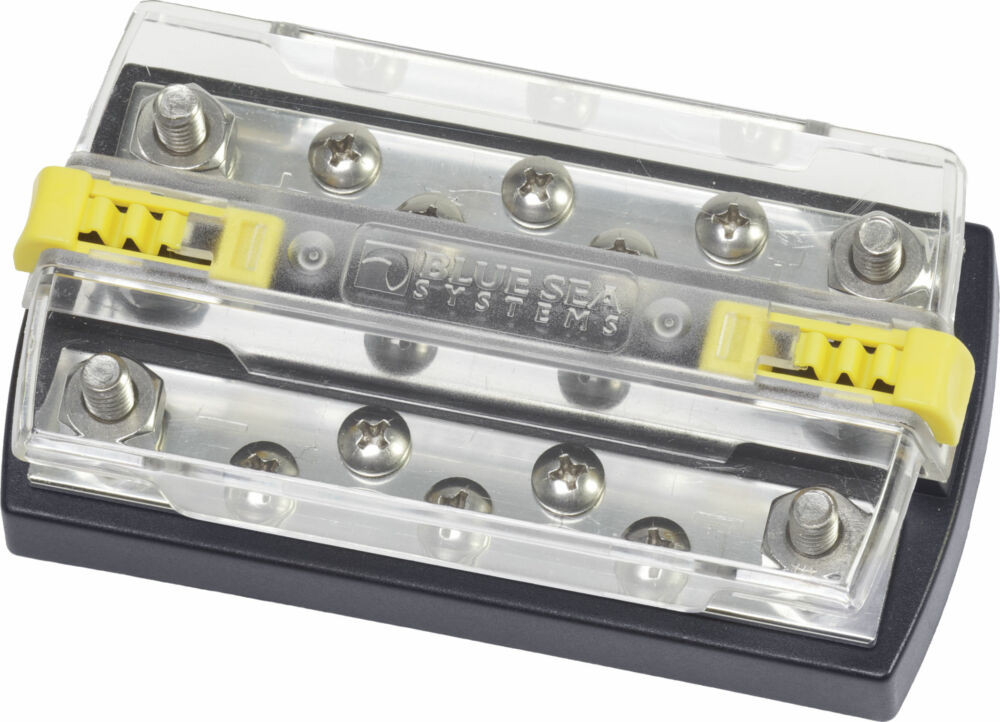

Blue Sea Systems DualBus 2x5x1/4", két soros közösítő sín +

Name: Blue Sea Systems DualBus 2x5x1/4", két soros közösítő sín +
Brand: BLUESEASYSTEMS
SKU: BSS-2722
Price: 16999 HUF
Availability: InStock

In stock

Price: 16 999 Ft
without VAT: 13 385 Ft+VAT (3 614 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

2722-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Combines negative and positive buses on one block
Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements

Details

Blue Sea Systems DualBus Plus 1/4in Stud

Combines negative and positive buses on one block
Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements

Info

Current (A):

130A AC, 150A DC

Energy distribution category:

Sín és kötőpont

Number of connection point:

11+

Max Voltage:

300V AC, 48V DC

Website:

https://www.bluesea.com/products/2722/DualBus_Plus...

Weight:

280 g/db

Technical specification

Specifications
Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	5 per bus
Number of Terminal Studs	2 per bus
Terminal Type	#10-32 Screw 1/4" Stud
Continuous Rating	130A AC 150A DC
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Cover Material	Clear Polycarbonate
Mounting Screw	#10 (M5)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Stud Torque	60 in-lb (6.78 Nm)
Weight	0.61Lb (0.28 Kg)
Weight	0.66lb (0.3 kg)
