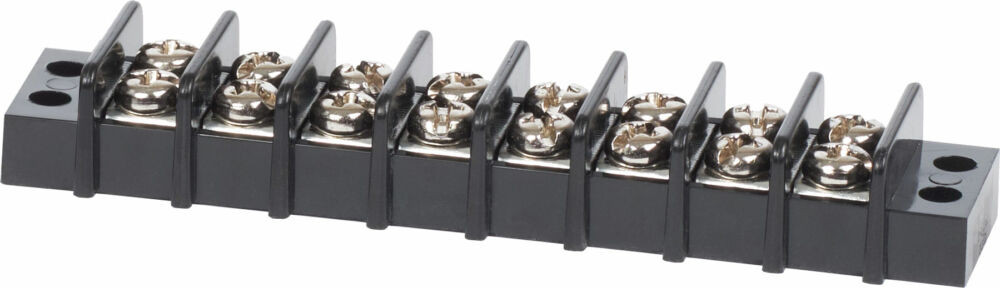

Blue Sea Systems Terminal Block/Independent 8 Circuits 20A, (Kötőpont)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
2408-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Bundle offers
Blue Sea Systems Terminal Block/Independent 8 Circuits 20A
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Current (A):
20
Energy distribution category:
Kábelrendezés
Number of connection point:
7-10
Max Voltage:
300V AC/DC
Weight:
50 g/db
| Specifications | |
|---|---|
| Circuits | 8 |
| Length | 3.66in (92.96 mm) |
| Maximum Voltage | 300V AC/DC |
Continuous Rating
|
20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.10Lb (0.05 Kg) |
| Weight | 0.10lb (0.05 kg) |
