Blue Sea Systems BusBar 20 pontos közösítő sín

Name: Blue Sea Systems BusBar 20 pontos közösítő sín
Brand: BLUESEASYSTEMS
SKU: BSS-2302
Price: 15458 HUF
Availability: InStock

In stock

Price: 15 458 Ft
without VAT: 12 172 Ft+VAT (3 286 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

2302-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The industry standard busbar for positive distribution
The industry standard busbar for the collection of negative or AC ground circuits

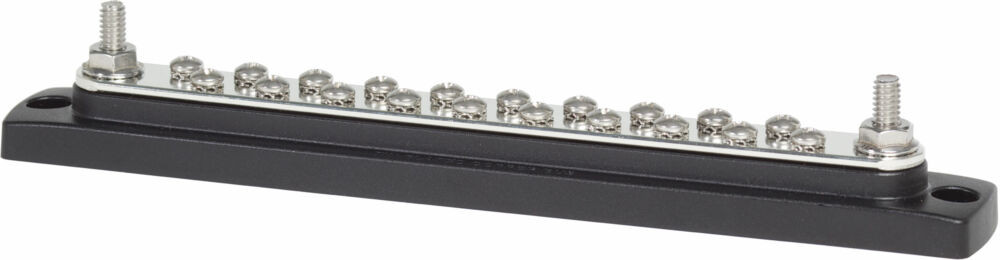

Blue Sea Systems BusBar 20 Gang Common Bus

The industry standard busbar for positive distribution
The industry standard busbar for the collection of negative or AC ground circuits

Current (A):

130A AC, 150A DC

Energy distribution category:

Sín és kötőpont

Number of connection point:

11+

Max Voltage:

300V AC, 48V DC

Website:

https://www.bluesea.com/products/2302/Common_150A_...

Weight:

240 g/db

Specifications
Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	20
Number of Terminal Studs	2
Terminal Type	1/4" Stud #8-32 Screw
Continuous Rating	130A AC 150A DC
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque	15 in-lb (1.69 Nm)
Stud Torque	60 in-lb (6.78 Nm)
Weight	0.53Lb (0.24 Kg)
Weight	0.51lb (0.23 kg)
