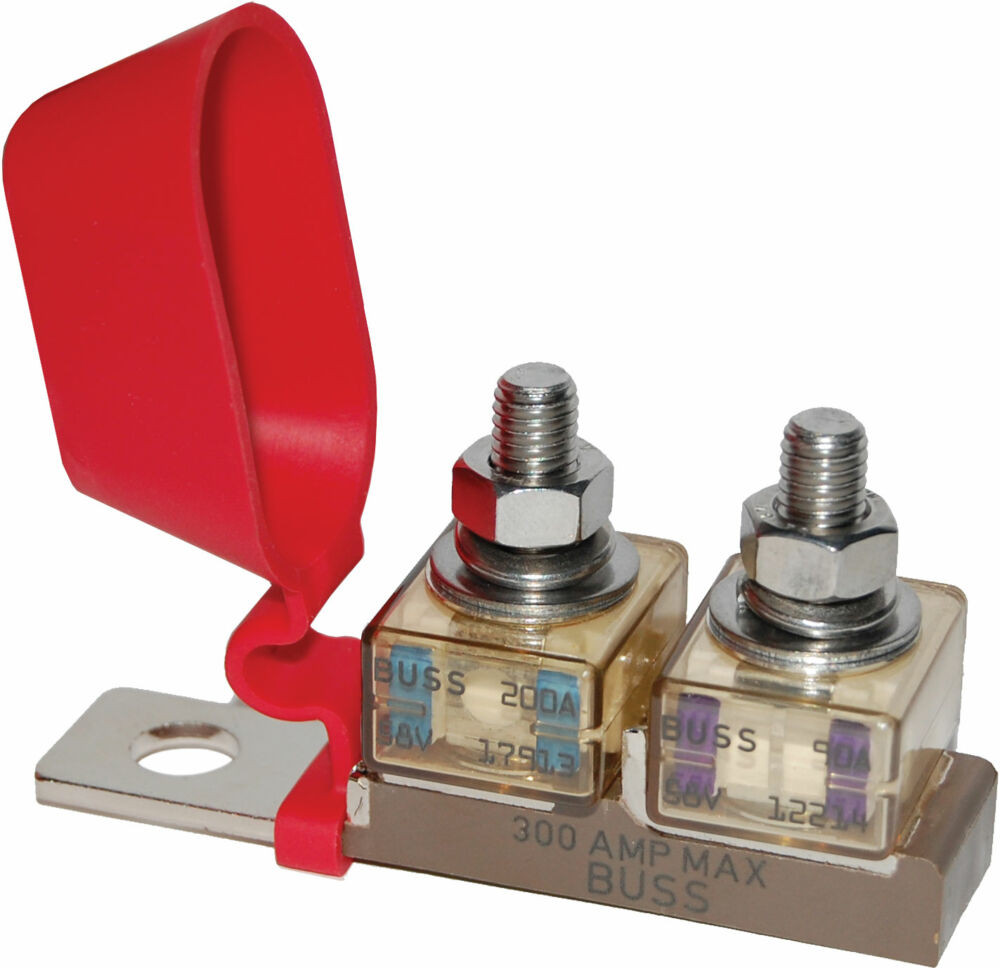

Blue Sea Systems Fuse Block TERMINAL 30-300A Dual
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
2151-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
- Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts
- Accepts 5∕16" ring terminals
- Mounts on 3/8” terminal studs
- Fuse sold separately
Bundle offers
Blue Sea Systems Fuse Block TERMINAL 30-300A Dual
- Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts
- Accepts 5∕16" ring terminals
- Mounts on 3/8” terminal studs
- Fuse sold separately
Current (A):
300
Connectable Circuit:
DC
Energy distribution category:
Biztosíték és tartó
Type of fuse holder:
MRBF Terminal Fuse
Number of fused circuits:
1
Max Voltage:
58V DC
Weight:
140 g/db
Selectable quantities:
1 db, 6 db, 11 db, 16 db, ...
| Specifications | |
|---|---|
Ignition Protected
|
No |
| Maximum Amperage
|
300A |
| Maximum Voltage | 58V DC |
| Terminal Stud | M8 (5/16") |
| Maximum Torque | 75 in-lb (8.47 Nm) |
| Weight | 0.30lb (0.14 kg) |
