Blue Sea Systems MaxiBus 4x5/16 közösítő sín
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
2127-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Busbars are used to consolidate multiple wires or feed multiple circuits
Bundle offers

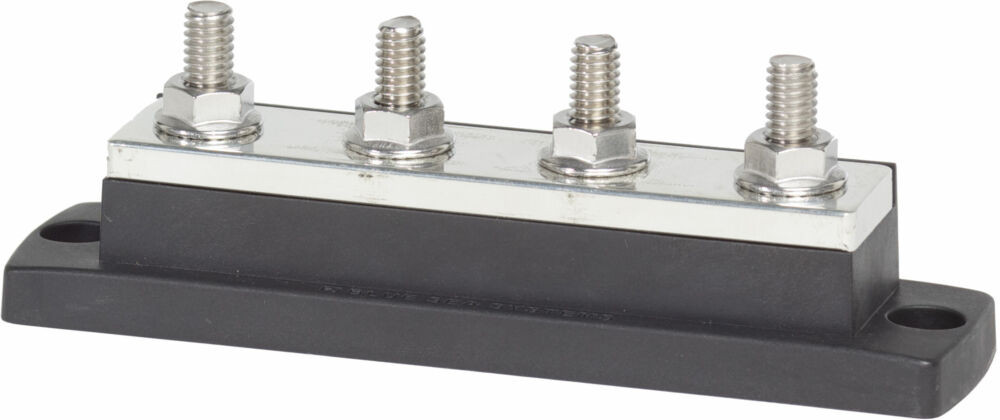

Blue Sea Systems MaxiBus 4x5/16 Stud Common
Busbars are used to consolidate multiple wires or feed multiple circuits
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
Current (A):
250
Energy distribution category:
Sín és kötőpont
Number of connection point:
4
Max Voltage:
300V AC, 48V DC
Weight:
340 g/db
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | 5/16"-18 Stud |
Continuous Rating
|
250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Stud Torque | 132 in-lb (14.91 N·m) |
| Weight | 0.75Lb (0.34 Kg) |
| Weight | 0.80lb (0.36 kg) |
