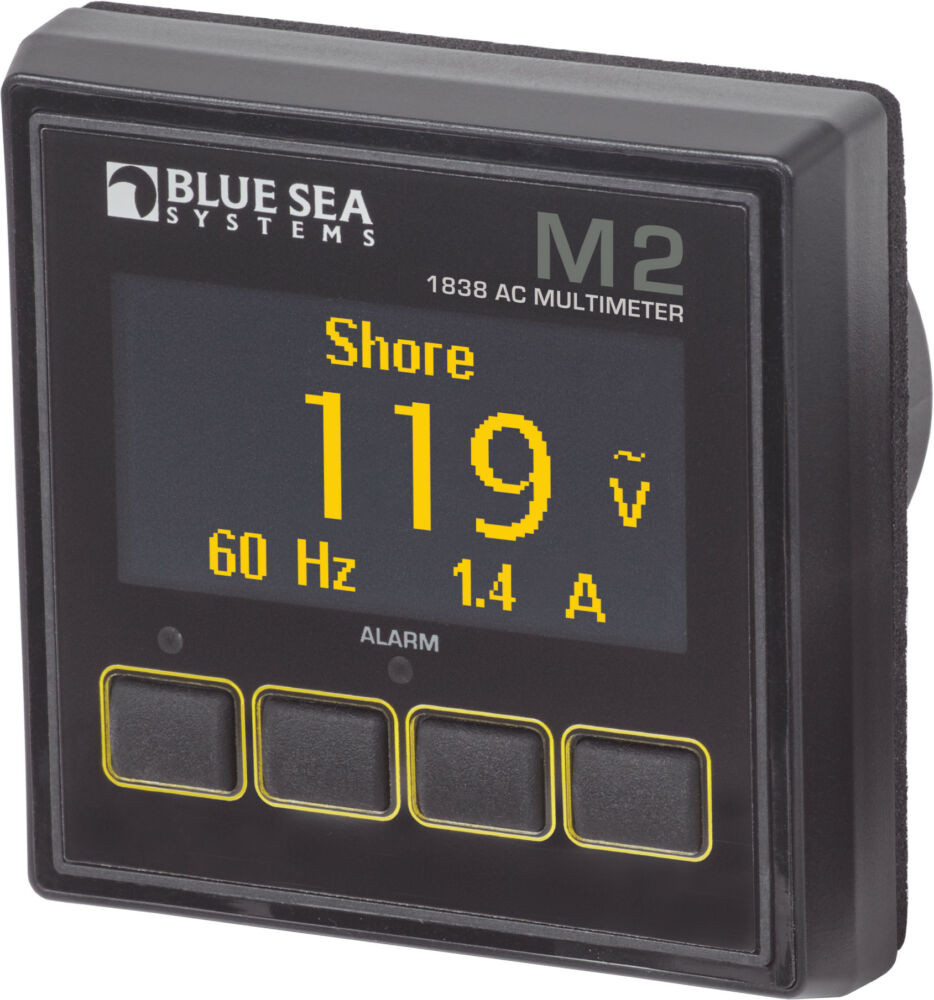

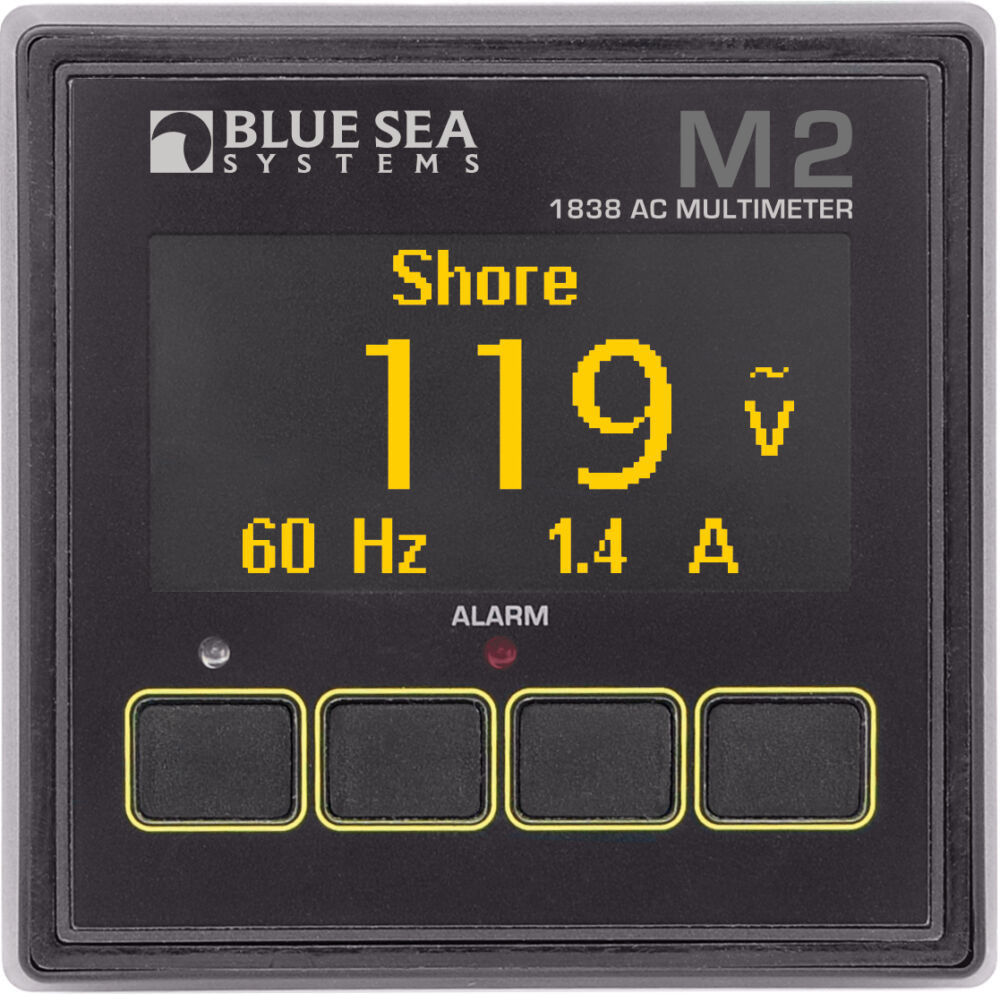

Blue Sea Systems Monitor M2 OLED AC Multimeter
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
1838-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)
Bundle offers
Blue Sea Systems Monitor M2 OLED AC Multimeter
Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)
- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 80dB alarm on all models
- Isolated MOSFET relay
Input voltage (DCV):
12/24/48
Current (A):
300
Display size (inch):
3
Number of outputs:
4
Energy distribution category:
Mérő, panel
Displayable data:
Multikijelző
Weight:
1.81 kg/db
| Specifications | |
|---|---|
| Meter | Current Frequency Power Voltage |
| Function | 50 to 250V to 300A |
| Resolution | 1V AC |
| Input Voltage | 7-70V DC |
| Alarms | High/Low Current High/Low Frequency High/Low Voltage |
| Current Accuracy | ± 2.0% |
| Display Size | 55mm x 28mm |
| Frequency Range | 40-90Hz |
| Frequency Resolution | 1Hz |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Power Range | 0-45kW |
| Power Resolution | 10W (0-9990W) 0.1kW (10-45kW) |
| Voltage Accuracy | ± 2.0% |
| Weight | 4.00lb (1.81 kg) |
