Blue Sea Systems Monitor M2 OLED DC SOC, (DC SOC kijelző)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
1830-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Accurately measure and monitor the state-of-charge of your batteries. Supports programmable shunt ratios.

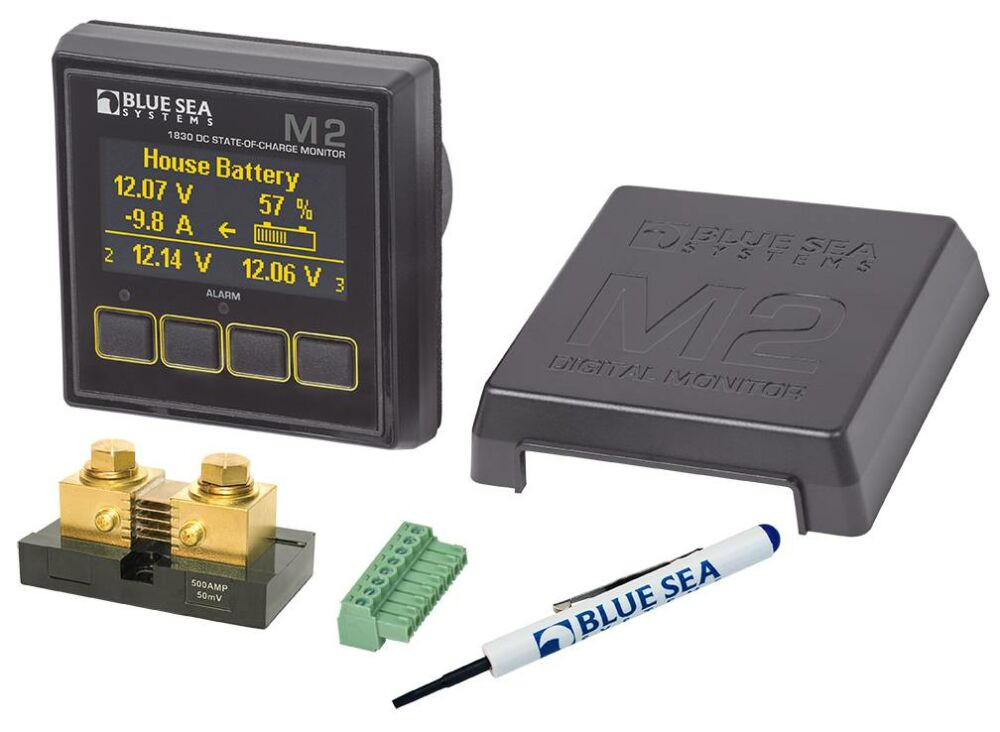

Bundle offers

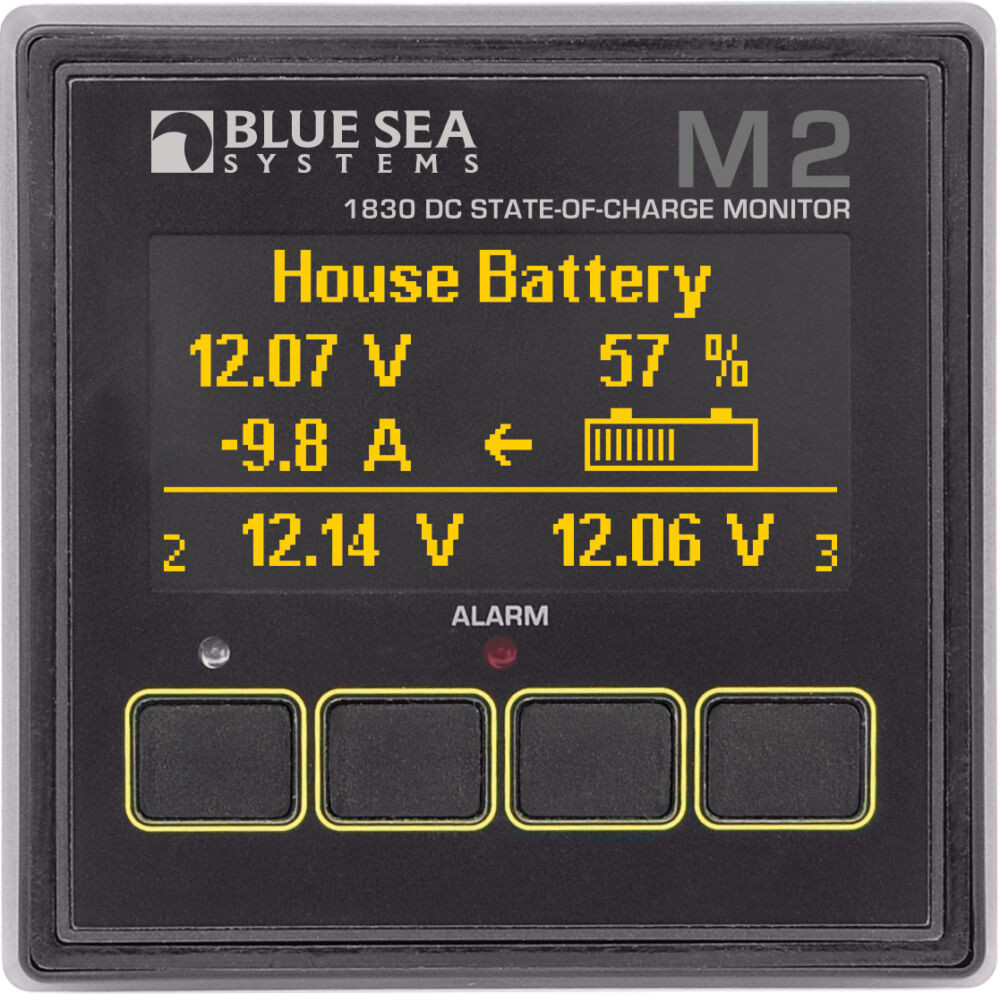

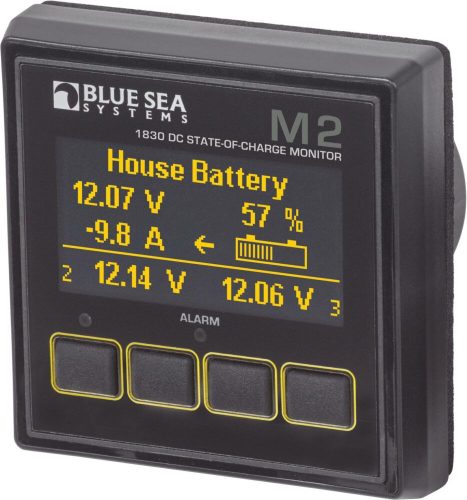

Blue Sea Systems Monitor M2 OLED DC SOC
Accurately measure and monitor the state-of-charge of your batteries. Supports programmable shunt ratios.
- Accurately measures and monitors State-of-Charge of 1 bank
- Measures 3 voltages and 1 current
- Supports programmable shunt ratios
- External relay activation
Input voltage (DCV):
12/24/48
Current (A):
500
Display size (inch):
3
Number of outputs:
4
Energy distribution category:
Mérő, panel
Displayable data:
Multikijelző
Weight:
1.81 kg/db
| Specifications | |
|---|---|
| Meter | Current State-of-Charge  Voltage |
| Function | 8 to 70V to 5000A
|
| Maximum Voltage | 12V 24V 48V |
| Resolution | 0.01V DC |
| Input Voltage | 7-70V DC |
| Alarms | High Current High/Low Voltage Low Battery |
| Current Range | -500 to 500A |
| Display Size | 55mm x 28mm |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Voltage Accuracy | ± 1.0% |
| Weight | 4.00lb (1.81 kg) |
