  1. Battery Switch
  1. Energy distribution
  2. Battery Switch

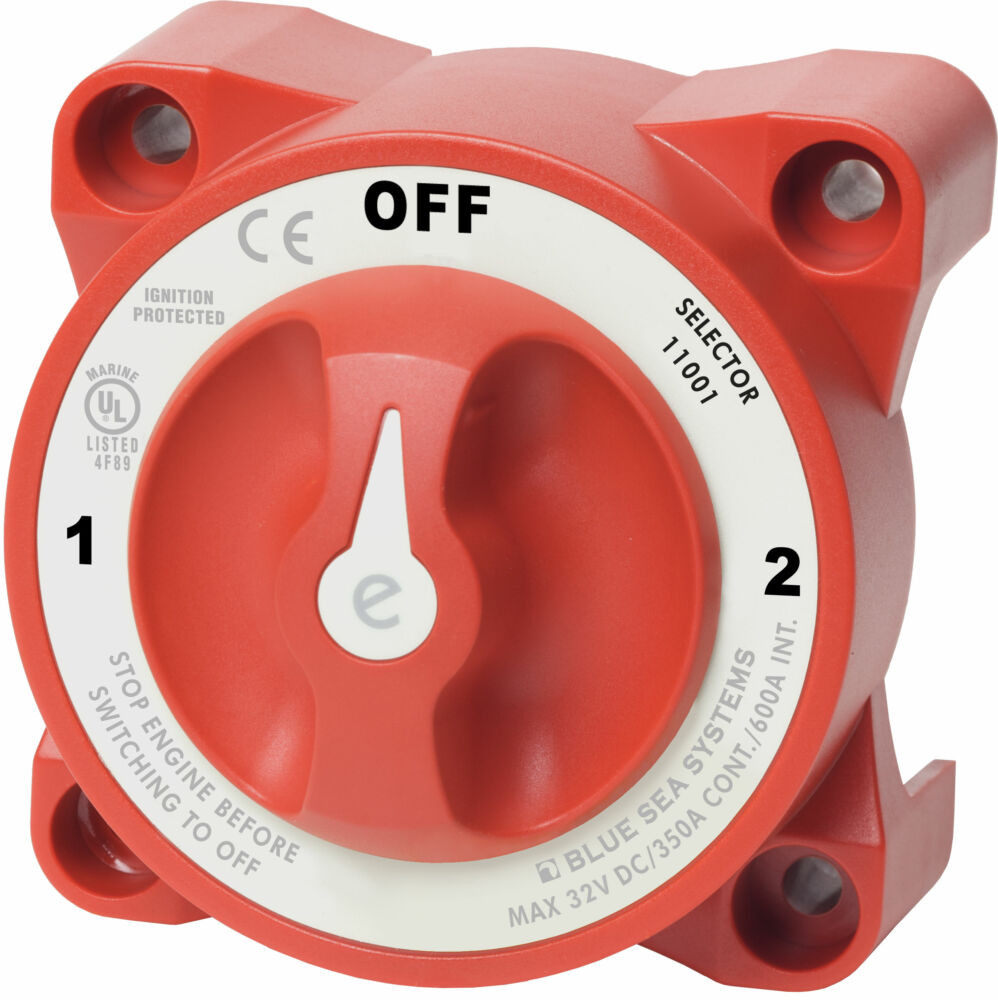

Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD, (Akkumulátor kapcsoló)

Item number:
BSS-11001
Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD, (Akkumulátor kapcsoló)
Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD, (Akkumulátor kapcsoló)
Manufacturer:
BLUESEASYSTEMS
Manufacturer Article number:
11001-BSS
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

Switches a single battery to a single load group

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats

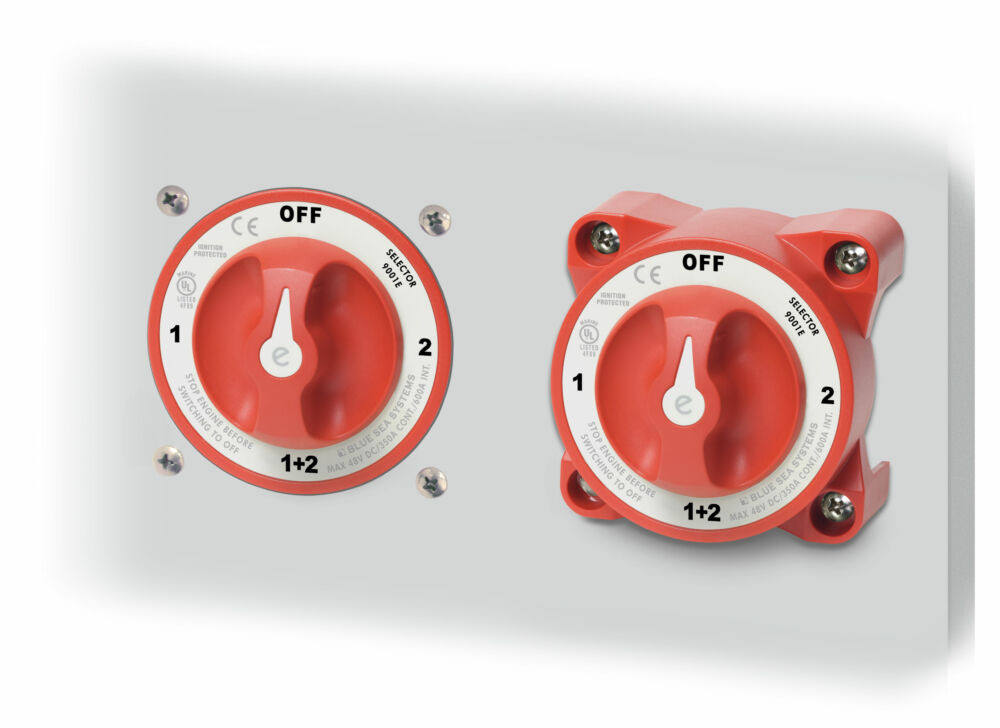

  • Case design allows surface or rear panel mounting
Bundle offers
  • Details
  • Data
  • Technical specification
  • Download User Manual
Details

Blue Sea Systems Switch Battery e-Series Selector 3 Position with AFD

Switches a single battery to a single load group

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
Data
Current (A):
350
Connectable Circuit:
DC
Energy distribution category:
Akkumulátor kapcsoló
Main switch Current (A):
350
Switch position:
OFF/1/2
Switch mechanism:
Mechanikus
Max Voltage:
32V DC
Website:
https://www.bluesea.com/products/11001/e-Series_Se...
Weight:
520 g/db
Technical specification
Specifications
Switch Type  Selector 3 Position
Color Red
Switch Positions 3
Battery Combine No
Alternator Field Disconnect Yes
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 350A
Intermittent Rating 600A (5 min)
Cranking Rating 30 sec 1200A

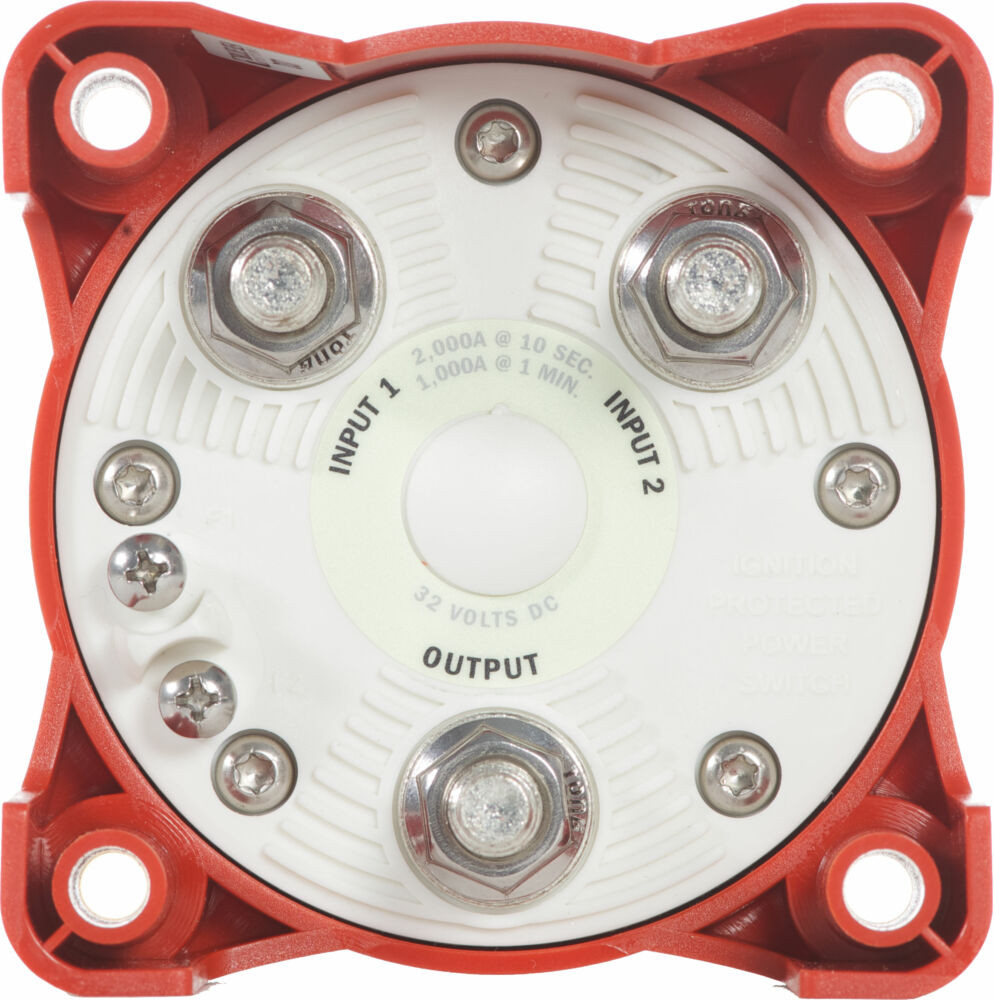

Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.15Lb (0.52 Kg)
Weight 1.30lb (0.59 kg)
Download User Manual


Download User Manual
