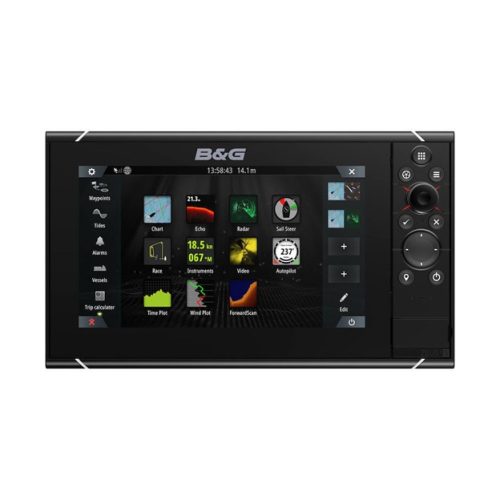

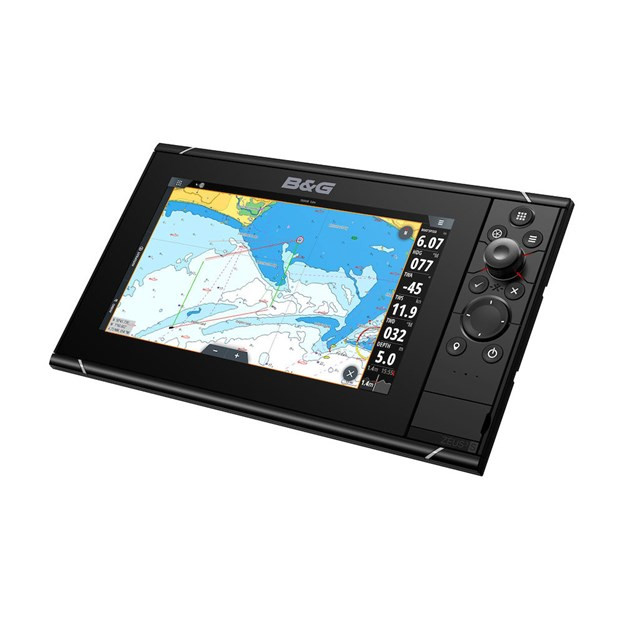

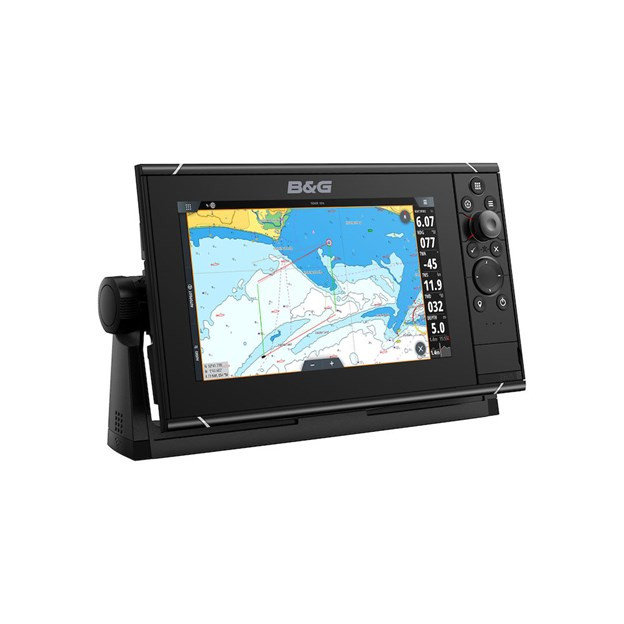

B&G Zeus® 3S 9 chartplotter with world basemap

The Zeus 3S series are the complete navigation solution for blue water cruisers and regatta racers. With superfast processors you can display up to 6 different information panels simultaneously, on the ultra-bright SolarMax IPS all- weather touchscreen, which is combined with a rotary dial and keypad for ultimate control in all conditions.

These easy to use chartplotters include all of B&G’s unique and proven sailing features such as SailSteer, Laylines, and RacePanel and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.

Exceptional Visibility

The SolarMAX IPS screen ensures perfect visibility in all conditions. Zeus 3S’s screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.

Super-fast processor for immediate response

Enjoy exceptional situational awareness thanks to Zeus 3S’s high-performance processor. There’s plenty of processing power to run charts, radar, ForwardScan and autopilot controls simultaneously without compromising on performance – giving you all the tools you need to enjoy the sailing, safe in the knowledge that you can monitor your surroundings.

Dedicated Sailing Features for Cruising and Racing

Navigate with confidence with Zeus3S's award winning sailing features:

SailSteer

See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.

Laylines

Let Zeus 3S do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.

SailingTime

Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.

RacePanel

Be on the line as the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.

Seamless integration with your instruments

Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus 3S can also take full control of on-board systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.

Integrated keypad for complete control

Zeus 3S has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.

Easy to expand your network

Just add power to enjoy Zeus 3S as a versatile standalone chartplotter with first-rate navigation functions. For the best experience and to take advantage of our award-winning sailing features, network your chartplotter with instruments and sensors using industry standard NMEA 2000 connectivity.

Autopilot control

Zeus 3S sits at the heart of your boat – and you can take command of commissioning and controlling your B&G autopilot from your Zeus 3S’s touchscreen. Tack, gybe, sail to wind or compass heading and take advantage of the advanced sailing algorithms that make B&G Pilots the best in their class.

ForwardScan

See what lies ahead under the water by adding a ForwardScan transducer. Benefit from a real-time two-dimensional view of the seabed in front of your boat. Navigate into shallow anchorages and poorly charted areas with ease and know what lies ahead with confidence.

Radar

Negotiate busy shipping lanes, see through darkness and poor visibility and track weather cells with B&G Halo Radar on your Zeus 3S.

SonicHub

Add a SonicHub to take control of your onboard entertainment from your Zeus 3S display. With integrated Bluetooth, stream music from your smartphone or tablet, or listen to music on a USB drive or AM/FM radio. Control everything including volume and individual zones from your Zeus 3S display.

Mapping options

Zeus 3S chartplotters support a wide range of leading cartography, from C-MAP and Navionics. Take advantage of advanced mapping features including autorouting, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.

Looking for a 7" display?

The Zeus 3S range comprises 9, 12 and 16" displays, but the Zeus³ 7 model from our previous Zeus³ range is still available and complements the larger screen sizes of the Zeus 3S range with a smaller display for yachts with limited installation space.

Key Features

• The fastest / most responsive sailing chartplotter and navigation display yet
• SolarMAX IPS Screens Best in class visibility from all angles with and without polarised glasses
• Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
• Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
• Up to 6-Way information panel split on the display
• Built in Wi-Fi
• Connect with smartphones, tablets, and internet hotspots



What's in the box?

• Zeus³/3S 9 Sun Cover
• Power Cable, 4-Pin
• NSS9 evo3/3S, Cruise 9 & Zeus³/3S 9 Gimbal Bracket
• NSS9 evo3/3S & Zeus³/3S 9 Dash Mount Kit
• NSS9 evo3/3S & Zeus³/3S 9 Edge Bezels

Info

Article number:

BG-000-15411-001

Display size (inch):

9

Network Protocol:

NMEA2000

Touch screen:

Igen

Water resistance rating:

IPX6 & 7

Brightness (nit):

1200

Display Resolution:

1280 x 720

Website:

https://www.bandg.com/en-gb/bg/type/chartplotter/b...

Weight:

1.41 kg/pcs

Technical specification

Category	Specification
Display
Backlight Color	White
Display Resolution	1280 x 720
Screen Brightness	1200 nits
Viewing Angles	80° top/bottom, 80° left/right

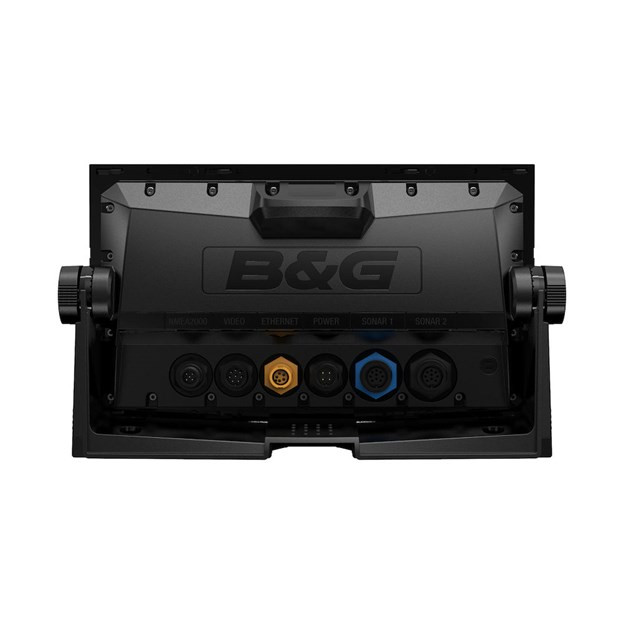

Connectivity
Bluetooth	Internal
Ethernet Ports	1 x 5-pin yellow connector, 10/100 Mbit
Wi-Fi	Internal
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
SD Card Storage	2 MicroSD slots, max. 32GB each (larger if formatted to NTFS)
Video Inputs	2 x composite (RCA connectors), optional video/data cable required (P/N 000-00129-001)
Autopilot
Maneuvers	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow-up, Non-follow-up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals
Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.2
Electrical
Power Consumption	Max 21 W
Recommended Fuse	5A
Supply Voltage	10 - 31.2 V DC
Environment
Humidity	IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)
Operating Temperature	-15°C to +55°C (5°F to 131°F)
Shock Vibration	100,000 cycles of 20 G
Storage Temperature	-20°C to +60°C (-4°F to 140°F)
Waterproof Rating	IPX6 and IPX7
GPS
Correction	WAAS, MSAS, EGNOS, GLONASS, Galileo, Beidou, QZSS, SBAS
GPS Receiver Channels	34 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix	Cold start 50 sec, Satellite Reacquisition 5 sec
Update Rate	10 Hz
MFD
AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 must be wired to all NSS processors)
Autopilot	Full autopilot control and commissioning
Cartography Included	World basemap
Digital Switching	C-Zone, Naviop
GPS	Built-in 10 Hz GNSS receiver (GPS, GLONASS), supports Galileo, Beidou, QZSS, SBAS (WAAS, EGNOS, MSAS, GAGAN)
Internal Storage	16 GB
Multimedia	Via SonicHub2, FusionLink, *Sirius, **JL Audio (*USA only, **AUS & NZ only)
Sonar Compatibility	Two 9-pin Xsonic Sonar ports: Port 1 - Single channel CHIRP, 50/200 kHz, HDI; Port 2 - Single channel CHIRP, 50/200 kHz, TotalScan, LSS HD, ForwardScan. Compatible with SonarHub, BSM-3, BSM-2, network echo sounders
Waypoints, Routes, Tracks	6000 waypoints, 500 routes (max 100 route points), 50 tracks (max 12,000 track points)
Weather	SiriusXM via WM-3 / WM-4 (USA only), GRIB
Physical
Compass Safe Distance	50 cm (1.7 ft)
Dimensions (W x H x D)	287 x 166 x 90 mm (11.30 x 6.55 x 3.50")
With Bracket	311 x 180 x 95 mm (11.30 x 7.07 x 3.72")

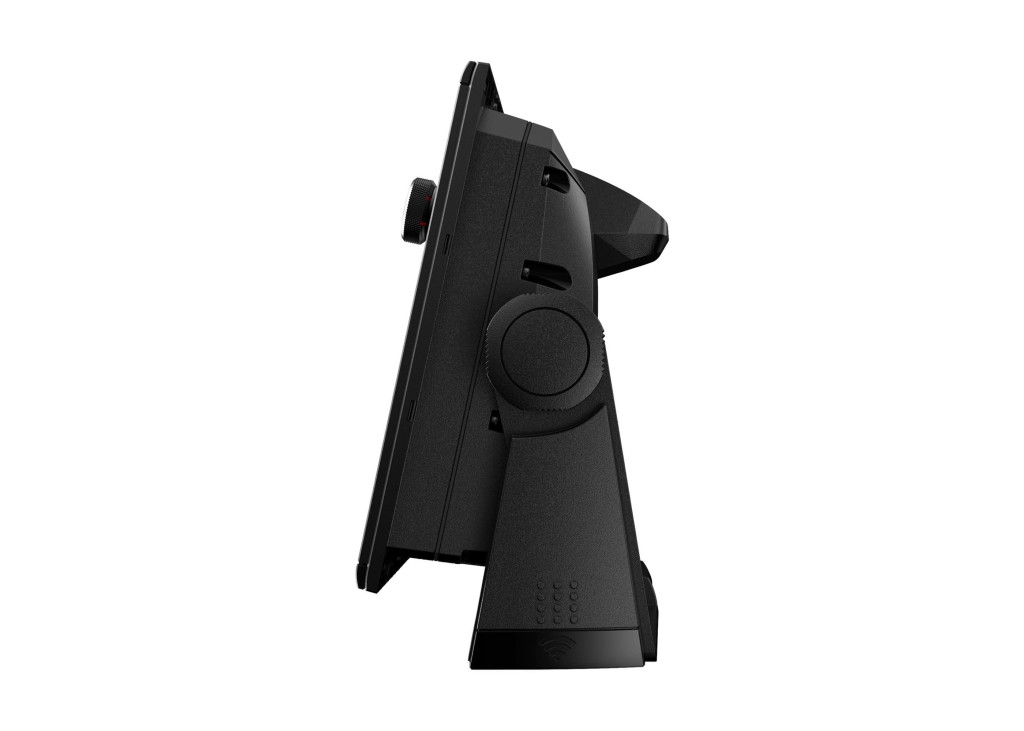

Mounting Type	Bracket (supplied) or panel mount
Weight	1.41 kg (3.11 lbs.)
Other
Interface	Full touchscreen (multi-touch) and full keypad control, OP50 remote controllers
Languages	Standard: English (US, UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
Extra Languages (Unlock)	Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
