B&G Zeus™ S 12 GLOBAL Chartplotter

Csomagajánlatok

• Details
• Info
• Technical specification

Details

B&G Zeus™ S 12 GLOBAL Chartplotte

Intuitive and easy-to-use Chartplotter

Zeus^® S is our most intuitive chartplotter for sailing yet. It comes with new and unique Sailing Modes with preset dashboards and data for your situation, along with many enhanced sailing features for a simpler sailing experience. All of which is backed up by clear and accurate C-MAP^® charting options for the safest and easiest navigation.



Sailing Modes



Improve your sailing with easy to interpret pointers from B&G^®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more.

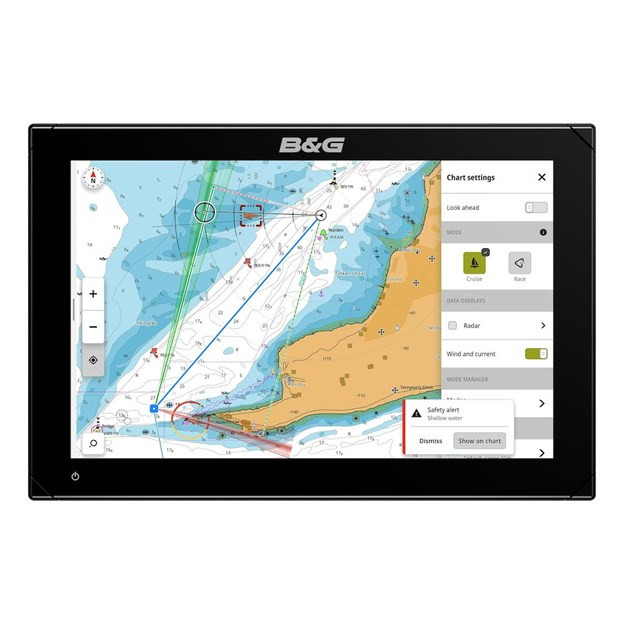

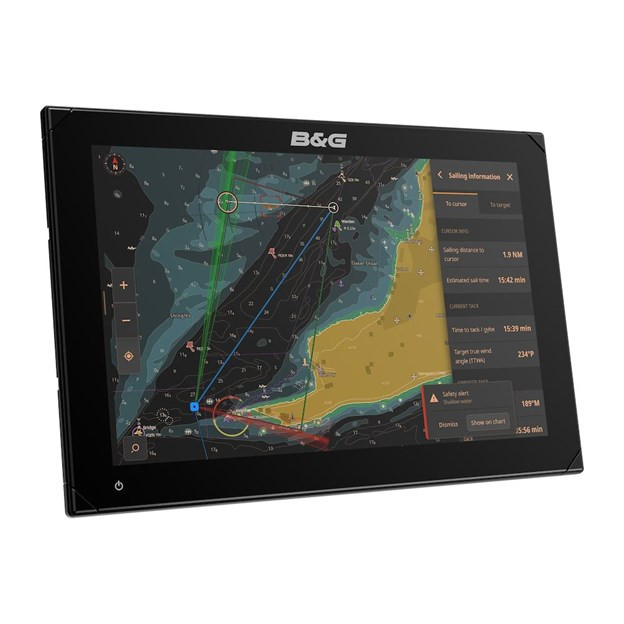

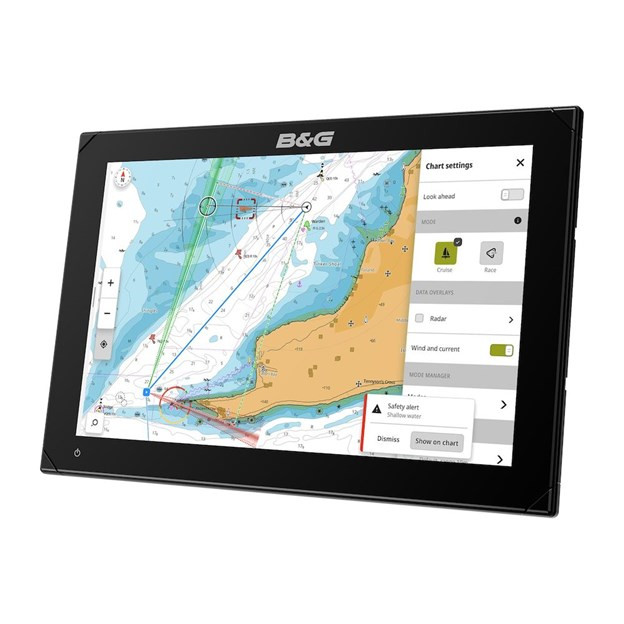

C-MAP^® powered Safety Alerts guard against grounding and dangerous objects.



Mapping

C-MAP^® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for clear and easy navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.



Integration

Zeus^® S is designed to be the heart of your sailing system. With built-in Wi-Fi^®, Ethernet, and NMEA 2000^®, it’s easy to connect to Autopilots, Radar, Instruments and Sensors including wind, depth, speed, GPS and compass.











Connecting with the B&G App offers further control and navigation options, both on and off the boat.



Intuitive

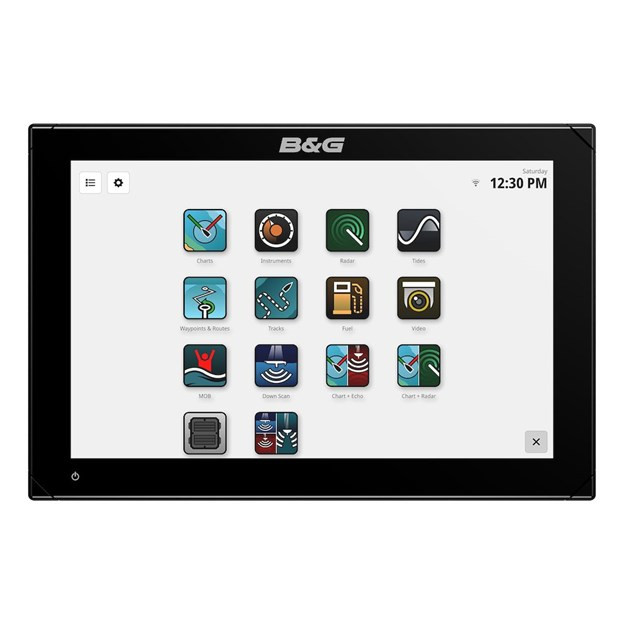

Zeus^® S makes data easy to read, and even easier to digest. The interface is designed to feel familiar – with a new Setup Wizard to get you started, and helpful feature tips to guide you along the way. Get hassle-free software updates, on- and off-the-water trip planning, and the same clear, accurate chart displays across your Zeus S, App and Web.



Key Features

• Sailing Modes for Cruising and Racing, providing exactly the data you need for your situation.
• NEW C-MAP-powered Safety Alerts feature, to avoid shallow water and dangerous objects on a collision course
• Includes B&G’s award-winning sailing features, as well as unique new updates to Laylines, Routes, SailSteer™ and StartLine
• C-MAP^® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with intuitive viewing options for easy navigation
• High definition SolarMAX™ IPS touch screen, viewable from all angles and in all conditions, even with polarised sunglasses
• Full integration with HALO^® Radars, Triton™2 Pilots, Triton™2 and Nemesis^® instruments, sensors and more
• Set-up Wizard to get you up and running quickly
• B&G^® App integration - access data and charting both on and off the water
• Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
• IP Video camera support

What's in the box?

• Power Cable, 4-Pin
• GO12 / Vulcan 12 Bracket Accessory
• NSX 3012, Vulcan2 12" Dash Mounting Kit
• Zeus S corner clip accessory
• Suncover for B&G Zeus S 12

Info

Article number:

BG-000-15225-001

Display size (inch):

12

Touch screen:

Igen

Navigation category:

Navigációs kijelző

Water resistance rating:

IPX6 & 7

Brightness (nit):

1200

Display Resolution:

1280 x 800

Website:

https://www.bandg.com/en-gb/bg/type/chartplotter/b...

Weight:

2.2 kg/pcs

Technical specification

Category	Specification
Display
Backlight Color	White
Display Resolution	1280 x 800
Display Size	12 inches
Screen Brightness	1200 nits
Viewing Angles	85° (top, bottom, left, and right)

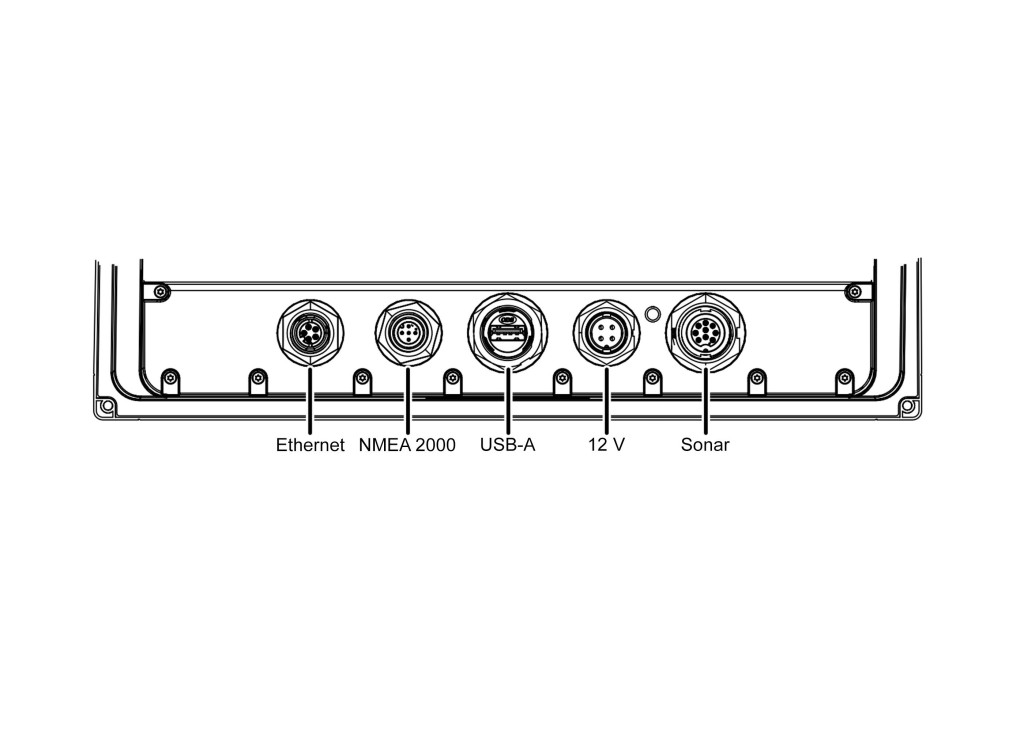

Connectivity
Bluetooth	Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports	1 port (5-pin yellow connector)
Wi-Fi	IEEE 802.11b/g/n
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
SD Card Storage	1 MicroSD slot, 1 x USB (A)
Video	IP Camera support
Cartography
Charts Supported	C-MAP Tile (CMT) Discover X, Reveal X
Autopilot
Steering Modes	Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
Electrical
Power Consumption max	29.7 W
Recommended Fuse Rating	3A
Supply Voltage	12 V DC (10 - 17 V DC)
Environment
Humidity	IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Operating Temperature Range	-15°C to 55°C (5°F to 131°F)
Shock Vibration	100,000 cycles of 20 G
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Waterproof rating	IPx6 and IPx7
GPS
Correction	10 Hz high-speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels	32 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Update rate	10Hz
MFD
AIS	Receive AIS data over NMEA 2000
Autopilot	NAC-1, NAC-2, NAC3, NAC-D, H5000 compatible
Cartography included	Worldwide basemap (not for navigation). Detailed chart card required
Digital Switching	Czone
GPS	Internal, 10Hz, WASS, MSAS, EGNOS
Sonar Compatibility	One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Physical
Compass Safe Distance	50 cm (1.7 ft)

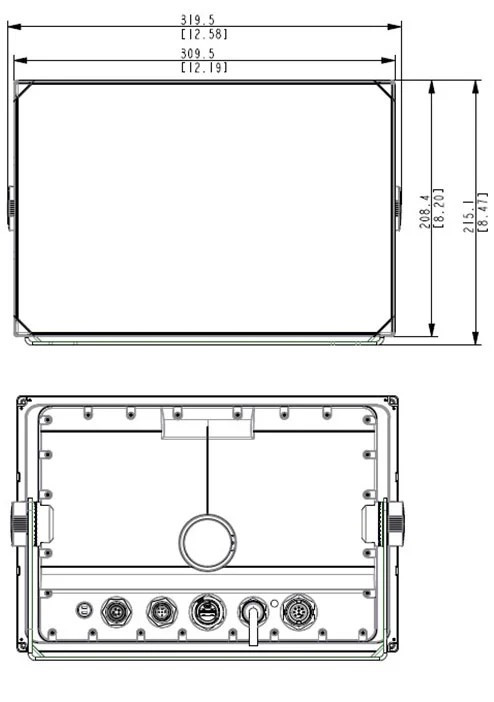

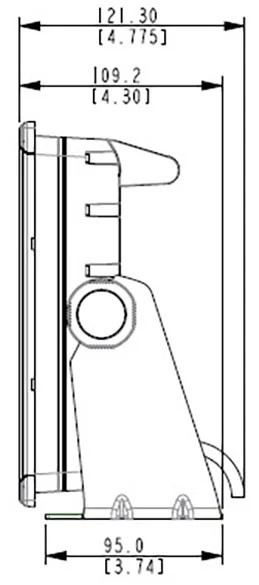

Dimensions (W x H x D)	310 x 208 x 78mm (12.2 x 8.2 x 3.1")
Mounting Type	Bracket (supplied), panel mount, or flush mount
Weight	2.2 kg (4.9 lbs)
Other
Interface	Multi-touch screen
Languages	English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Swedish
