B&G Triton™ Edge Sailing Processor

Name: B&G Triton™ Edge Sailing Processor
Brand: B&G
SKU: BG-000-15134-001

Manufacturer:

B&G

Manufacturer Article number:

000-15134-001

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Triton™ Edge Sailing Processor delivers an enhanced suite of sailing data such as advanced Start line calculations, advance true wind data and autocalibration, boat speed calibration and correction, wind correction for heel/trim, support for polar tables, improving accuracy of your autopilot and sailing information. Wi-Fi and Ethernet allows for expanded integration with Triton 2 and Nemesis™ displays, and Vulcan and Zeus™ Chartplotters, whilst integration with the B&G App also enables the ability to review or replay your sailing data, and web-browser based control allows for easy set-up and commissioning, improving the accuracy and calibration of sailing data, as well as the ability to backup/restore and advanced diagnostics.

Details

B&G Triton™ Edge

SAIL SMARTER

Triton™ Edge™ Sailing Processor delivers an enhanced suite of more accurate sailing data to your Triton™ and Nemesis^® displays, and Vulcan and Zeus^® Chartplotters. It allows for increased control and the ability to access information both on and off the yacht, via App integration and web browser control.

The Triton Edge Sailing Processor is the brains behind the ultimate cruiser racer system. Its ultra-fast processor delivers an enhanced suite of accurate sailing data to displays and chartplotters.

Expanded Data

Enhanced Accuracy

Simple Connectivity

Best-in-class Datasets

Triton Edge brings a wealth of enhanced sailing data and intelligent sailing features. Benefit from improved StartLine calculations, and advanced calibration of boat speed and true wind data. Wind correction for heel/trim angles feeds better information to both the user and the system, improving your efficiency through the water.

Superior Data Management

Triton Edge isn’t just about giving you better data. It also changes what you can do with that data. Wi-Fi, NMEA 2000^®, and Ethernet provide superior connectivity to other sensors and modules. And easy integration with the B&G^® Companion App lets you upload data to the cloud to view and replay your trips from anywhere.

Support for Polar Tables

This new feature allows the sailing processor to calculate Target Boat Speed and Target Wind information across a range of wind speeds.

Triton Edge is designed for sailors running a cruising or dual-purpose cruising/racing system, providing the sophistication and expansion you need, without over-complication.

MORE POWER

Latest Powerful micro processor provides all core instrument calculations

ENHANCED FEATURES

Enhanced feature set for serious cruising yachts

APP INTEGRATION

B&G App Integration - Data recording and review using the Companion App

WEB CONTROL

Web server integration provides easy access to system config and control

SUPERIOR CONNECTIVITY

Industry standard compatible NMEA2000^® network

FLEXIBLE POWER

Compatible with both 12V and 24V power

Key Features

Latest Powerful micro processor provides all core instrument calculations
Enhanced feature set for serious cruising yachts
Support for Polar Tables - calculate Target Boat Speed and Target Wind information across a range of wind speeds
B&G App Integration - Data recording and review using the Companion App
Integrated webserver provides easy access to system configuration and control
Ethernet Interface
Industry standard compatible NMEA2000(R) network
12/24V Power

N2K-T-RD Network T-Connector
N2KEXT-2RD 2ft Network Extension Cable
Power Cable, 4-Pin

Data

Article number:

BG-000-15134-001

Network Protocol:

NMEA2000

Website:

https://www.bandg.com/en-gb/bg/type/instruments/sa...

Weight:

260 g/pcs

Technical specification

Category	Details
Connectivity
Ethernet Ports	1 x 100 Mbit
Wi-Fi	WiFi 802.11 b/g
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	1 x Ethernet (web server)
Approvals
Compliance	IEC/EN 60945
Electrical
Recommended Fuse Rating	3 A
Supply Voltage	12/24V DC (9.0 - 31V DC)
Environment
Operating Temperature Range	−15°C to 55°C (5°F to 131°F)
Storage Temperature Range	−40°C to 85°C (−40°F to 185°F)
Waterproof Rating	IPX6 and IPX7
Physical
Compass Safe	300 mm (1.0")

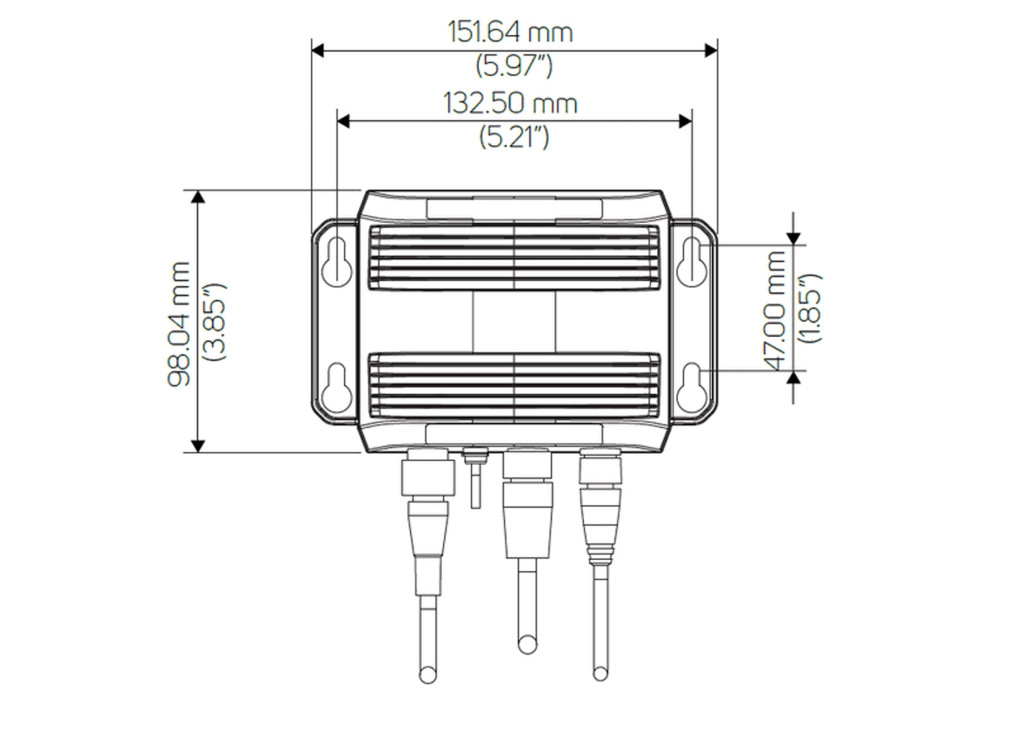

Dimensions W x H x D	152 x 98 x 53 mm (6 x 3.9 x 2.1")
Mounting Type	Surface Mount
Weight	0.26 kg (0.6 lbs)
Other
Interface	Web server
