B&G Zeus³S Glass Helm 16" Display Only

Name: B&G Zeus³S Glass Helm 16" Display Only
Brand: B&G
SKU: BG-000-15048-001

Manufacturer:

B&G

Manufacturer Article number:

000-15048-001

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Build your navigation system around the Zeus³S Glass Helm Display. The new iMX 8 high-performance processor ensures 2x faster responses than the previous model, while the Full HD display gives you stunning clarity. Connect with GPS, radar, sonar, keypad controllers and other accessories to create your ideal onboard sailing system.

Details

B&G Zeus³S Glass Helm 16" Display Only

Supreme Performance

The new Zeus³S Glass Helm display has twice the previous version’s performance, delivering category leading response times for incredibly smooth transitions. It gives you instant access to the sailing and system information you need, when you need it, all thanks to the new iMX 8 integrated six-core processor.

Unbeatable sailing performance

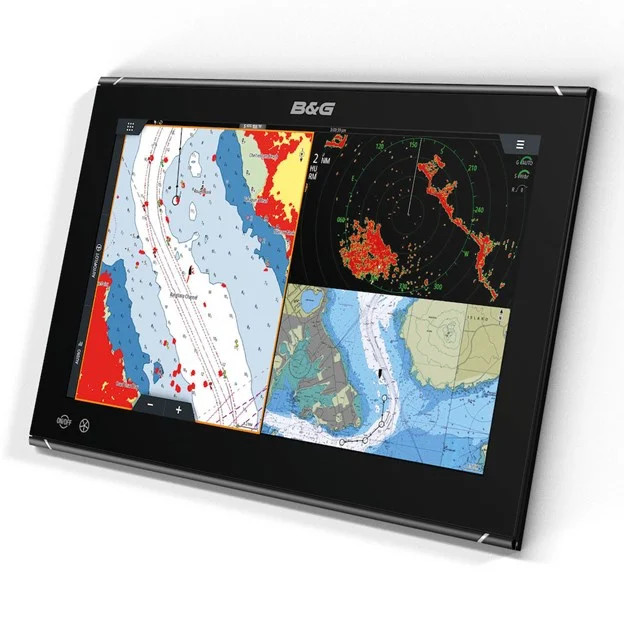

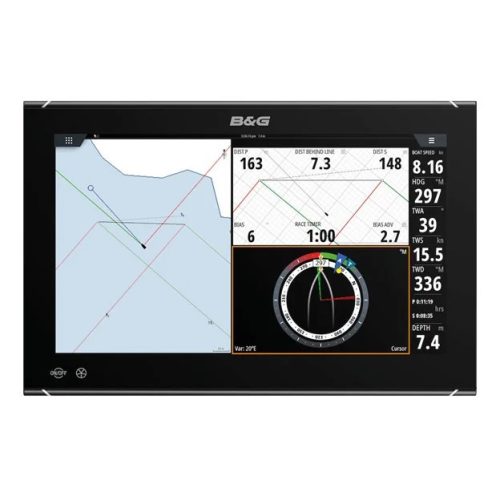

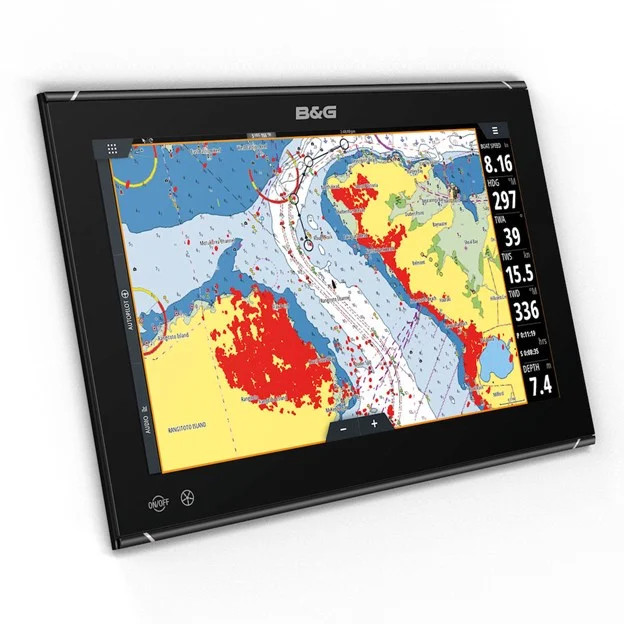

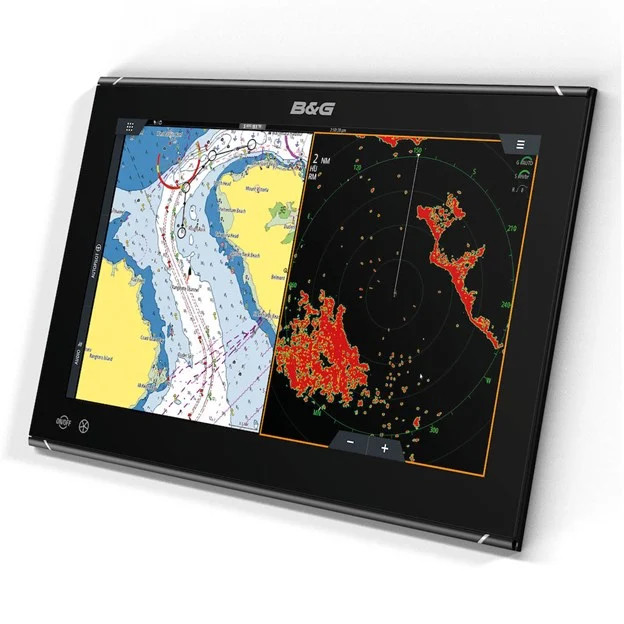

Zeus³S Glass Helm delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen visible, even if you’re wearing polarised sunglasses. Experience stunning clarity with full HD resolution, and the option to combine up to six panels in a split-screen layout. Navigate charts and use your sailing features such as RacePanel and SailSteer, whilst also viewing connected systems such as autopilot, radar and sonar, with a single touch.

Fully Connected

Built-in wireless connectivity links Zeus³S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, autopilot and much more.

Key Features

The Fastest / Most Responsive B&G System yet
Large Wide Format Displays (16”/19”/24)” – all in Full HD 1920x1080
Best in class visibility from all angles with and without polarized glasses
Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
6-Way display panel split
Built in Wi-Fi
HDMI and Video Inputs
Connect with smartphones, tablets, and internet hotspots

NMEA 2000 Micro-C Low Loss 4 Way Joiner
N2K-PWR-RD Network Power Node
TR-120-KIT Network Terminator Kit
NMEA 2000 6ft Network Extension Cable
RJ45 - Ethernet Adapter Cable
MO16/19/24 Cable Retention Bracket
Rear mount bracket kit for MO16/19/24 monitors
MO16 Bezels
B&G Zeus³ Glass Helm 16" Monitor Sun Cover

Data

Article number:

BG-000-15048-001

Display size (inch):

Network Protocol:

NMEA2000

GPS:

Igen

Website:

https://www.bandg.com/en-gb/bg/type/chartplotter/z...

Weight:

3.9 kg/pcs

Technical specification

Category	Details
Display
Backlight Color	White
Display Resolution	1920x1080
Display Size	16 inches
Screen Brightness	1200 nits
Viewing Angles	80° top/bottom, 80° left/right
Connectivity
Bluetooth	Internal
Ethernet Ports	4 x 100 Mbits/s ports, RJ 45 (adaptable to 5-pin yellow using adapter cable 000-11246-001)
Wi-Fi	Internal 802.11b/g/n
N2K PG Ns	Receive only: 59392 ISO Acknowledgement, 59904 ISO Request, ...
NMEA 0183 Sentences Supported	Input: GGA, GLL, GSA, ... Output: GGA, GLL, GSA, ...
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	HDMI video input from a PC
SD Card Storage	1 Micro SD slot, max. 32GB (over 32 GB requires NTFS formatting)
Video	2 x composite video (BNC), 1 x high-definition video (1080p, HDCP 1.4, HDMI-A)
Autopilot
Maneuvers	Turn Patterns: Tack / Gybe, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind, Wind NAV. (*Boat type set to Sail)
Approvals
Approvals Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1
Electrical
Maximum Power Consumption	40 W ± 4 W
Recommended Fuse Rating	6 A @ 12 V DC
Supply Voltage	10 - 32 V DC
Environment
Operating Temperature Range	-15°C to +55°C (5°F to 131°F)
Shock and Vibration Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof Rating	IPX6 on the front (when correctly panel-mounted) rear not waterproof
MFD
AIS	Receive AIS data over NMEA 2000 or NMEA 0183 (AIS is not bridged to N2K)
Autopilot	Wind, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography	World basemap
Digital Switching	BEP C-Zone, Naviop
GPS	External GPS required
Internal Storage	16 GB
Multimedia	SonicHub2, Fusion Link, Sirius, JL Audio. (USA only, **AUS & NZ only)
Sonar Compatibility	External echo sounder module or connection to an MFD with built-in echo sounder that can share sonar over Ethernet
Waypoints, Routes, Tracks	6000 waypoints, 500 routes with a maximum of 100 route points, 50 tracks with up to 12,000 track points
Weather	SiriusXM (USA only), GRIB, Predict Wind
Physical
Compass Safe	50 cm (20")
Dimensions	W x H x D: 400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27") With bracket: 474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76”)
Mounting Type	Panel or Bracket mount (use optional heavy-duty bracket 000-13547-001)
Weight	3.9 kg (8.6 lbs.)
