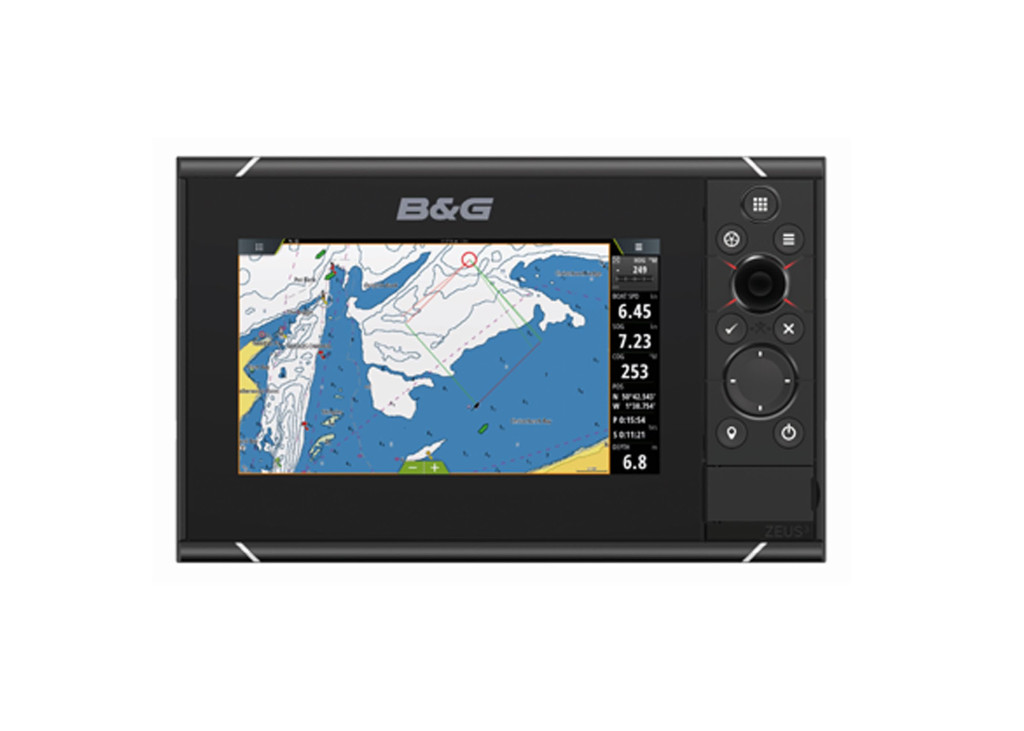

B&G Zeus³ 7 MFD Chartplotter with World Basemap

Zeus³ Series

Enjoy full control whatever the conditions with Zeus³. Ideal for the serious cruising or racing sailor, Zeus³ boasts a stunning touschscreen and keypad, high-speed processor and B&G’s award-winning sailing features. Let Zeus³ guide you to your destination.

*For 9, 12 and 16 inch models, see our new Zeus³S range.

Exceptional visibility

The SolarMAX HD screen ensures perfect visibility in all conditions. Zeus³’s screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.

Integrated keypad for complete control

Zeus³ has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.

Super fast processor for immediate response

Enjoy exceptional situational awareness thanks to Zeus³‘s high-performance processor. There’s plenty of processing power to run charts, radar, ForwardScan and autopilot controls simultaneously without compromising on performance – giving you all the tools you need to enjoy the sailing, safe in the knowledge that you can monitor your surroundings.

Perfect for twin helms

Opt for a dual-station installation and Zeus³ will ensure you’ve got the data you need, where you need it. Share your charts, radar and sonar between multiple Zeus³ displays at the helm, nav station and elsewhere on board over a lag-free Ethernet connection, for simple installation and lightning fast networking  between displays.

Dedicated Sailing Features for Cruising and Racing

Navigate with confidence with Zeus³’s award winning sailing features:

SailSteer

See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.

Laylines

Let Zeus³ do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.

SailingTime

Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.

RacePanel

Be on the line as the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.

Autopilot control

Zeus³ sits at the heart of your boat – and you can take command of commissioning and controlling your B&G autopilot from your Zeus³ touchscreen. Tack, gybe, sail to wind or compass heading and take advantage of the advanced sailing algorithms that make B&G Pilots the best in their class.

Mirror the screen on your phone

Built in WiFi allows you to mirror and control the screen from anywhere on board on a Smartphone or Tablet using the Link App, for a cost-effective dual-station solution. Back up your settings and waypoints, or connect to a Wireless hotspot or marina WiFi to download weather forecasts and download software updates straight to your device. Connect your phone via Bluetooth to read and respond to text messages from the chartplotter’s display.

Seamless integration with your instruments

Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus³ can also take full control of onboard systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.

Mapping options

Zeus³ chartplotters support a wide range of leading cartography, from C-MAP, Navionics and NV Digital. Take advantage of advanced mapping features including autorouting, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.

Easy to expand your network

Just add power to enjoy Zeus³ as a versatile standalone chartplotter with first-rate navigation functions. For the best experience and to take advantage of our award-winning sailing features, network your chartplotter with instruments and sensors using industry standard NMEA 2000 connectivity.

ForwardScan

See what lies ahead under the water by adding a ForwardScan transducer. Benefit from a real-time two-dimensional view of the seabed in front of your boat. Navigate into shallow anchorages and poorly charted areas with ease and know what lies ahead with confidence.

Radar

Negotiate busy shipping lanes, see through darkness and poor visibility and track weather cells with B&G Broadband Radar on your Zeus³.

SonicHub

Add a SonicHub to take control of your onboard entertainment from your Zeus³ display. With integrated Bluetooth, stream music from your smartphone or tablet, or listen to music on a USB drive or AM/FM radio. Control everything including volume and individual zones from your Zeus³ display.

Key Features

• Excellent screen visibility with ultra-wide viewing angles
• Easy to control, even in wet conditions or rough seas
• High performance for responsive operation and quick chart redraw
• Dedicated sailing features such as SailSteer, Laylines and RacePanel
• Built-in Wi-Fi for easy access to charts, weather, updates, support, and screen mirroring
• Built-in ForwardScan™ sonar support for safer passage through shallow waters
• Integrates seamlessly with other B&G displays and accessories in a boat-wide system

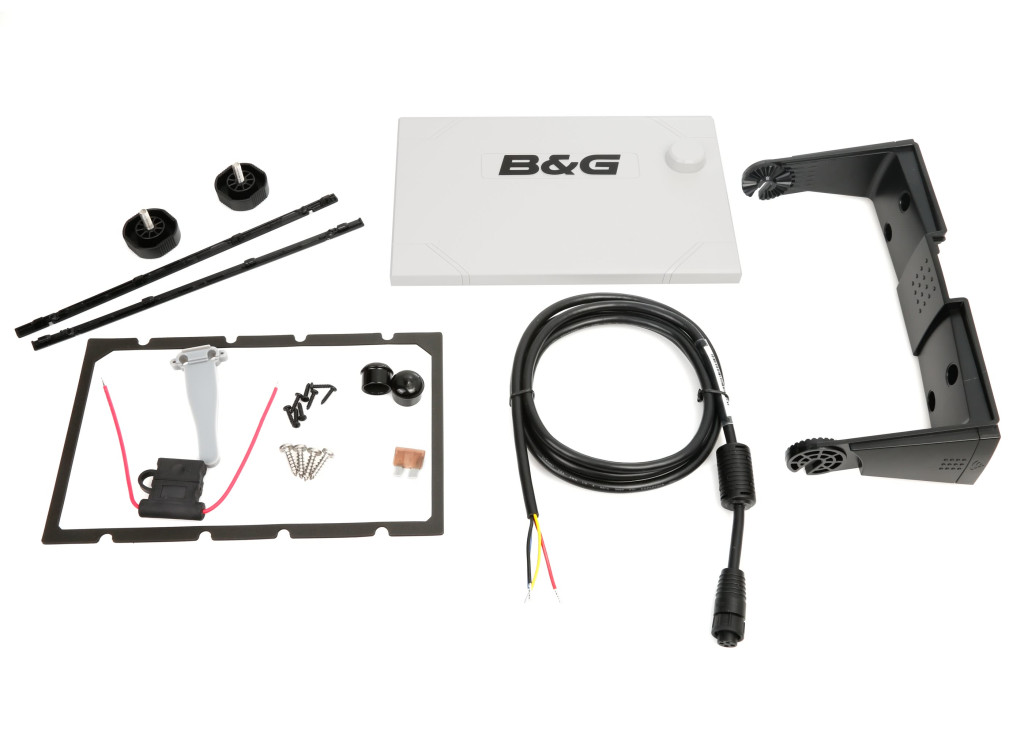

What's in the box?

• Bracket Knobs for NSS evo2/Zeus2/HDS gen2T
• Zeus³ 7 Sun Cover
• NSS7 EVO3 & ZEUS3 - 7 DASH MOUNT KIT

Info

Article number:

BG-000-13245-001

Display size (inch):

7

Network Protocol:

NMEA2000

Touch screen:

Igen

Navigation category:

Navigációs kijelző

Water resistance rating:

IPX6 & 7

Brightness (nit):

1200

Display Resolution:

1024 x 600

Website:

https://www.bandg.com/en-eu/bg/type/chartplotter/b...

Weight:

1.1 kg/pcs

Technical specification

Category	Specification
Display
Backlight Color	White
Resolution	600 x 1024
Size	7 inches
Viewing Angles	80° top/bottom, 80° left/right

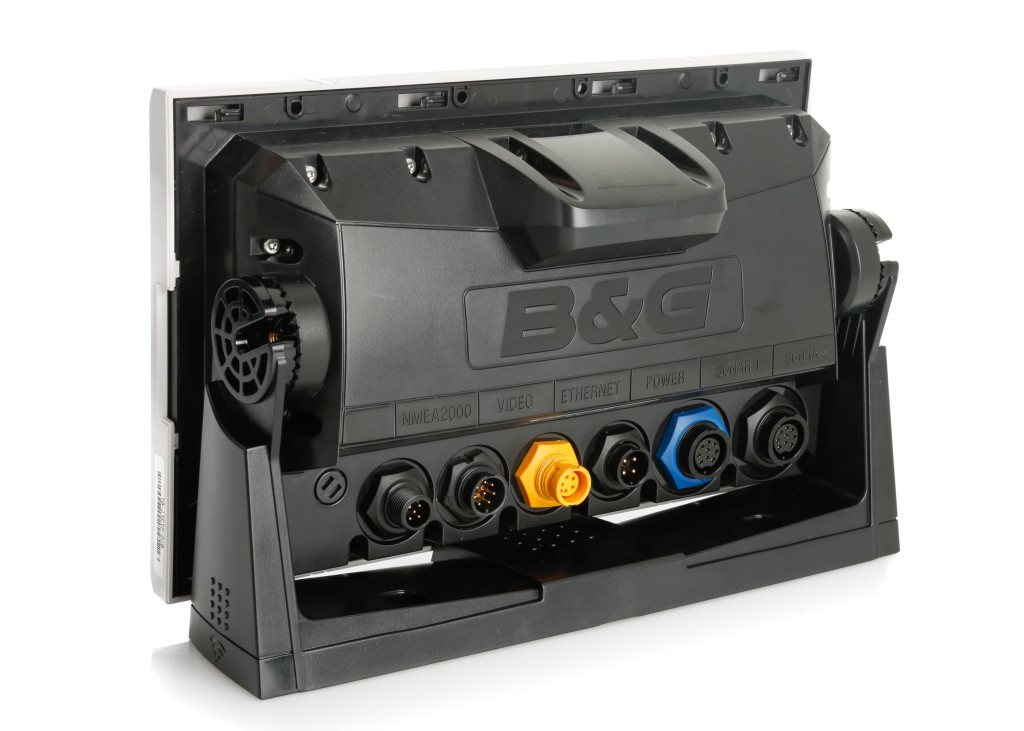

Connectivity
Bluetooth	Internal
Ethernet Ports	1 x 5-pin yellow connector, 10/100 Mbit
Wi-Fi	Internal
NMEA 2000 PGNs (Receive Only)	59392, 59904, 60160, 60416, 65240, 60928, 126208, 126992, 126996, 126998, 127233, 127237, 127245, 127250, 127251, 127252, 127257, 127258, 127488, 127489, 127493, 127500, 127501, 127503, 127504, 127505, 127506, 127507, 127508, 127509, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129041, 129283, 129284, 129539, 129540, 129545, 129549, 129551, 129793, 129794, 129798, 129801, 129802, 129808, 129809, 129810, 130060, 130074, 130306, 130310, 130311, 130312, 130313, 130314, 130316, 130569, 130570, 130571, 130572, 130573, 130574, 130576, 130577, 130578, 130579, 130580, 130581, 130582, 130583, 130584, 130585
NMEA 2000 PGNs (Transmit)	60160, 60416, 126208, 126992, 126993, 126996, 127237, 127250, 127258, 127502, 128259, 128267, 128275, 129025, 129026, 129029, 129283, 129284, 129285, 129539, 129540, 130074, 130306, 130310, 130311, 130312, 130577, 130578
NMEA 0183 Sentences (Input)	GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM
NMEA 0183 Sentences (Output)	GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No

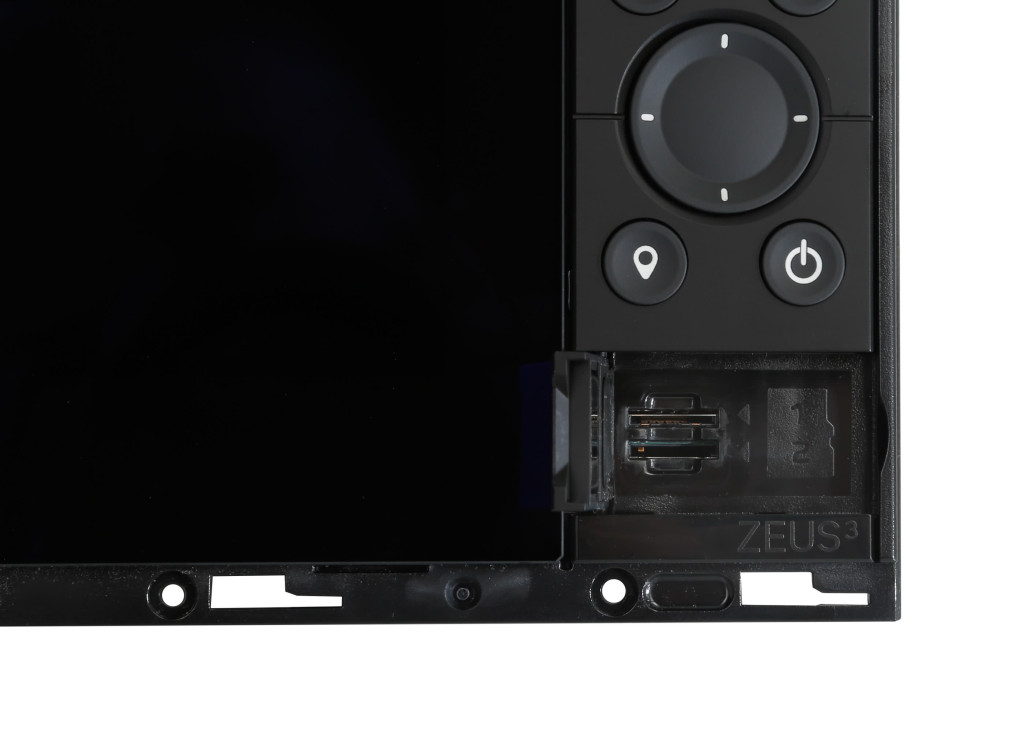

SD Card Storage	2 Micro SD slots, max. 32GB each (larger if formatted to NTFS)
Video Inputs	2 x composite (RCA connectors), optional video/data cable required
Autopilot
Maneuvers	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals
Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.2
Electrical
Power Consumption	Max 20 W
Recommended Fuse Rating	3A
Supply Voltage	10 - 31.2 V DC
Environment
Operating Temperature	-15°C to +55°C (5°F to 131°F)
Storage Temperature	-20°C to +60°C (4°F to 140°F)
Waterproof Rating	IPX6 and IPX7
GPS
Correction	WAAS, MSAS, EGNOS, GLONASS
Receiver Channels	34 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix	Cold start 50 sec, Satellite Reacquisition 5 sec
Update Rate	10 Hz
MFD
AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 must be wired to all NSS processors)
Autopilot	Full autopilot control and commissioning
Cartography	World basemap (no detailed charts)
Digital Switching	C-Zone, Naviop
GPS	Internal
Internal Storage	16 GB
Multimedia	SonicHub2, FusionLink, *Sirius (USA only), **JL Audio (AUST. & NZ only)
Sonar Compatibility	Two 9-pin Xsonic Sonar ports: CHIRP, 50/200 kHz, HDI, Active Imaging, TotalScan, LSS HD, ForwardScan. Compatible with: S5100, SonarHub, BSM-3, BSM-2, network echo sounders
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
Weather	SiriusXM via WM-4 / WM-3 (USA only), GRIB

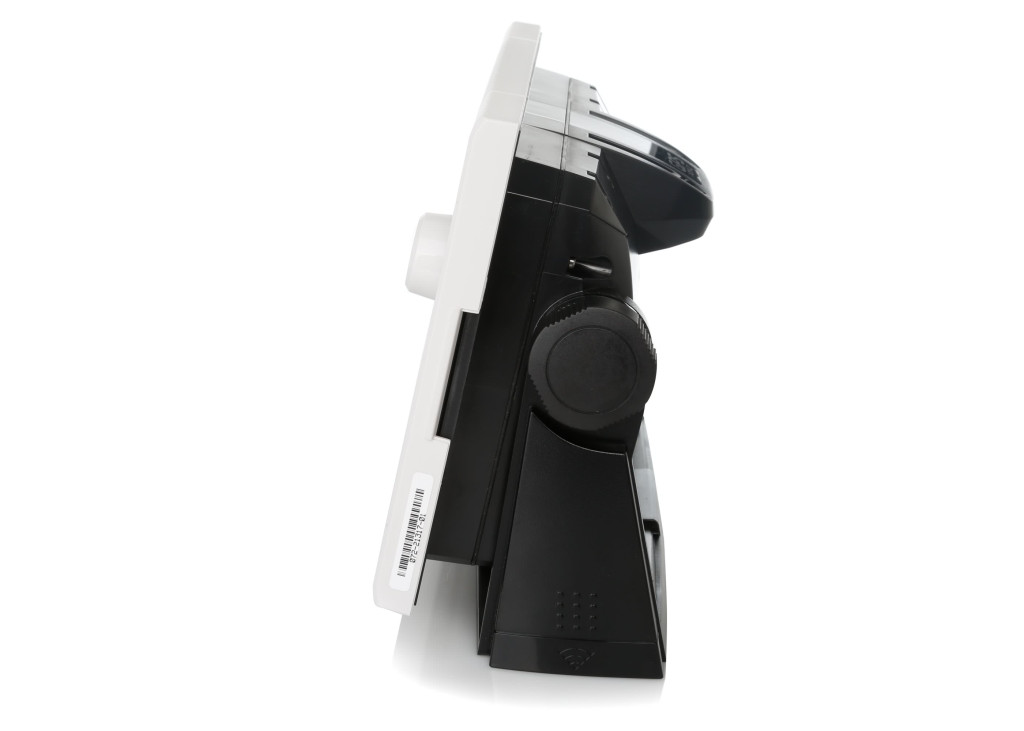

Physical
Dimensions W x H x D	239 x 150 x 90 mm (9.4 x 5.9 x 3.5")
With bracket	263 x 161 x 93 mm (10.35 x 6.31 x 3.66")
Mounting Type	Bracket (Supplied) or panel mount
Weight	1.1 kg (2.42 lbs.)
Other
Interface	Full touch screen (multi-touch) and full keypad control, ZC2 remote controllers
Languages	English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
Additional Languages	Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
