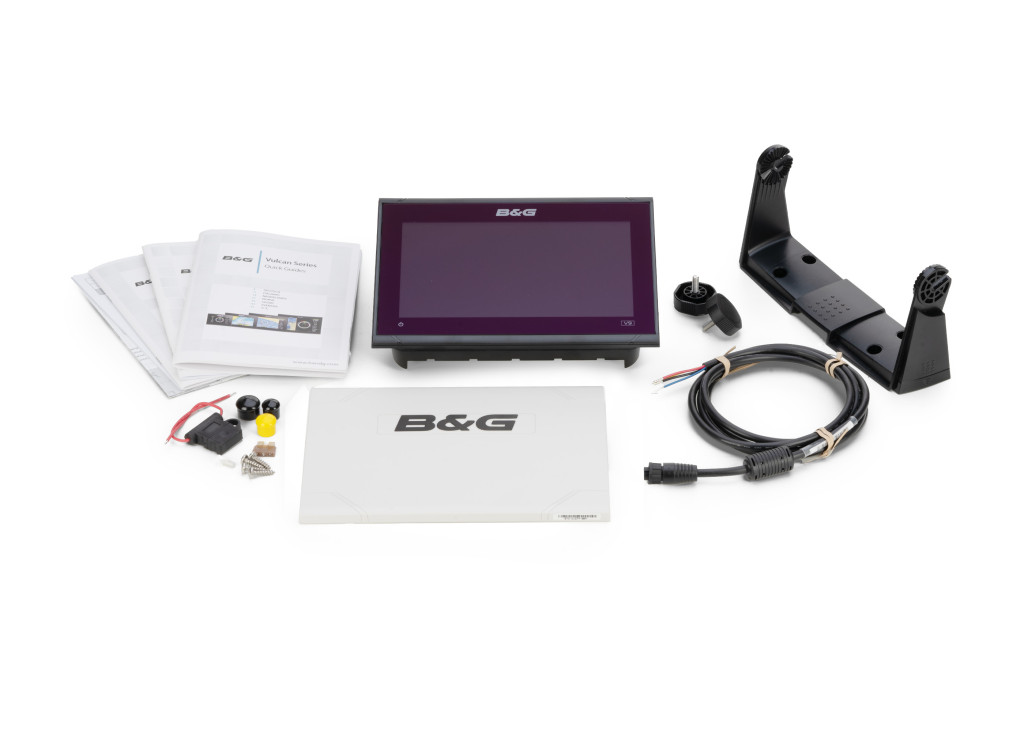

B&G Vulcan 9FS Chartplotter

Welcome to the B&G Vulcan range

B&G's Vulcan range of sailing chartplotters take the guesswork out of sailing. Whether you’re an experienced sailor or just starting out, Vulcan is packed with features that will help you get the most from your time on the water.

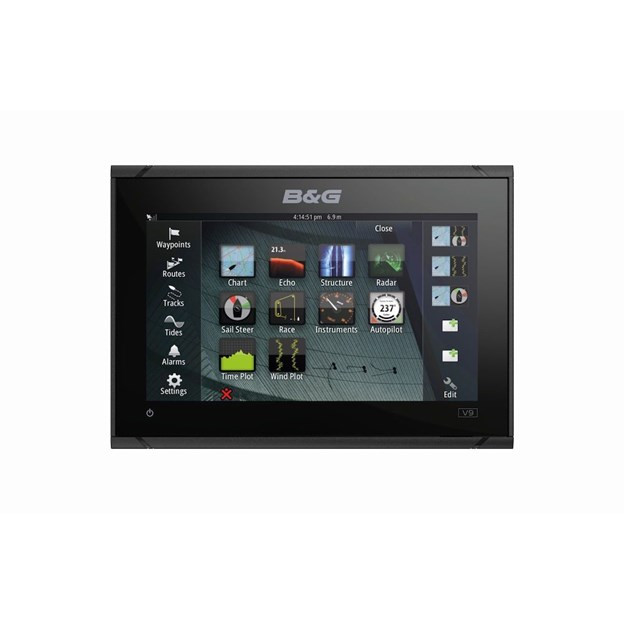

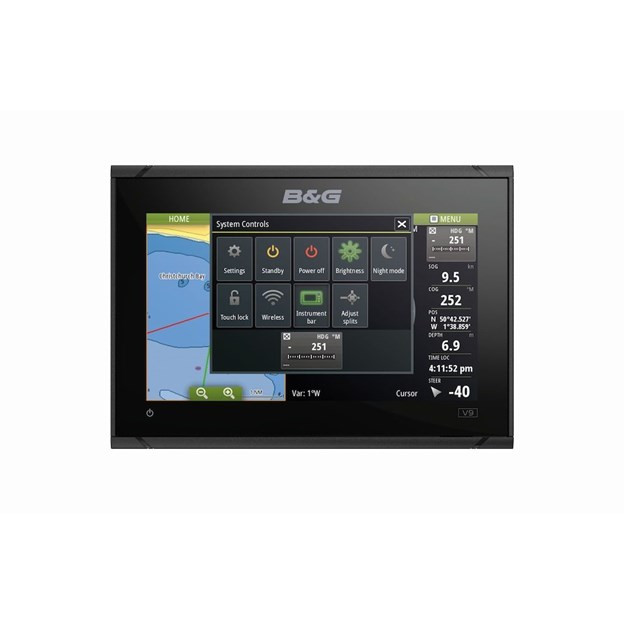

Easy to use touch screen

We’ve designed our Vulcan chartplotters to be as intuitive as a tablet or smartphone. The low-profile, super-bright display is visible even in direct sunlight, and the responsive touch screen gives fingertip control, even in flying spray and a rough sea state. Pinch-to-zoom, swipe and tap controls let you input waypoints and routes and view chart details with ease.

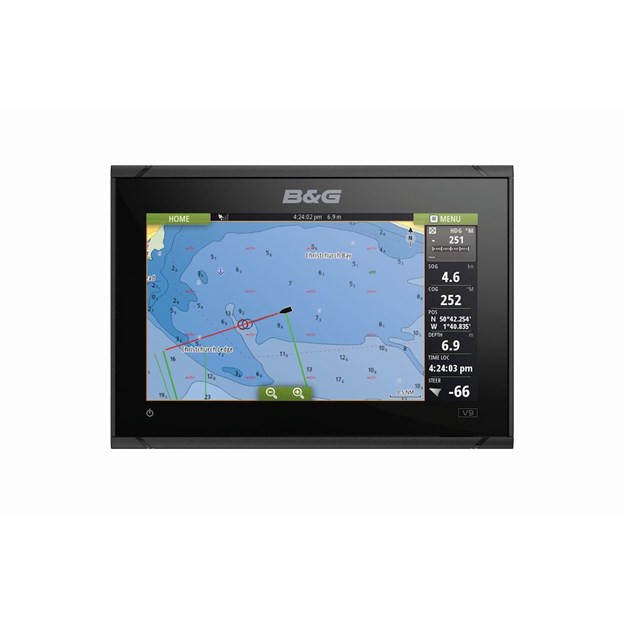

Simple to add Waypoints and Routes

Let Vulcan guide you safely to your destination: place waypoints and routes with a single tap on the chart and let Vulcan take you there with clear, intuitive graphics and data for guidance. Add a compatible chart card to benefit from autorouting and let Vulcan’s intelligent software choose the best and safest route to your destination.

Dedicated Sailing Features for cruising and racing

You can use Vulcan as a simple chartplotter as soon as you connect it to power, or for more advanced features, add to speed, depth and wind instruments. Let Vulcan take care of the complex calculations – leaving you free to relax and enjoy the sailing.

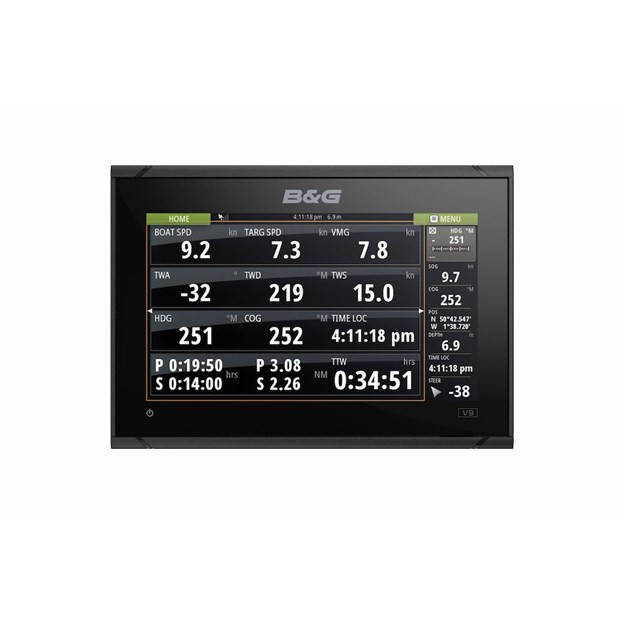

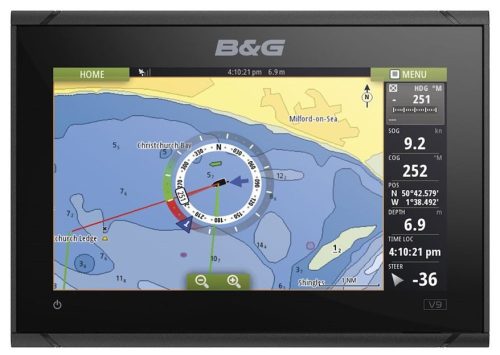

SailSteer

See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.

Laylines

Let Vulcan do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.

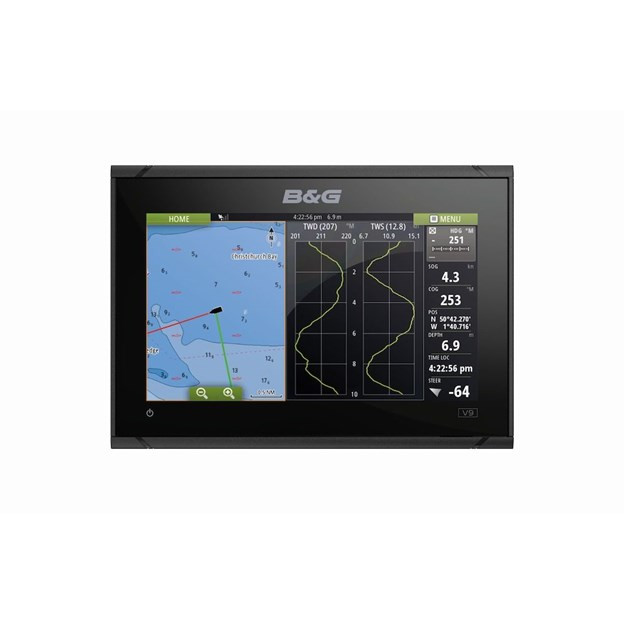

SailingTime

Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.

RacePanel

Be on the line when the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.

Autopilot Control

Put Vulcan at the heart of your boat and take control of your B&G autopilot from your Vulcan’s touchscreen. With an installed controller elsewhere, the intuitive controls can be accessed from any screen with a simple tap and allow you to alter course, tack, gybe, sail to wind or compass. Take advantage of the advanced sailing algorithms that make B&G Pilots as good as the best helmsman – all from your Vulcan’s touch screen.

A range of mounting options

Get up and running quickly: Vulcan chartplotters are optimised for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile ‘glass helm’ look. Alternatively, mount in minutes using the supplied bracket on horizontal, vertical or overhead surfaces.

Key Features

• Easy to use multi-touch display
• Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
• Easy to integrate – Connect Vulcan to an existing system and add basic sailing components

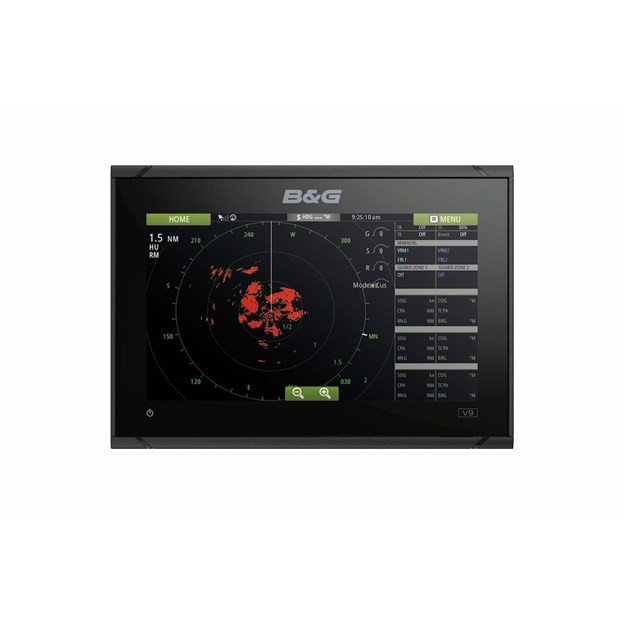

• Broadband Radar™ and ForwardScan™ ready
• Integrated Wi-Fi
• Control your B&G Pilot

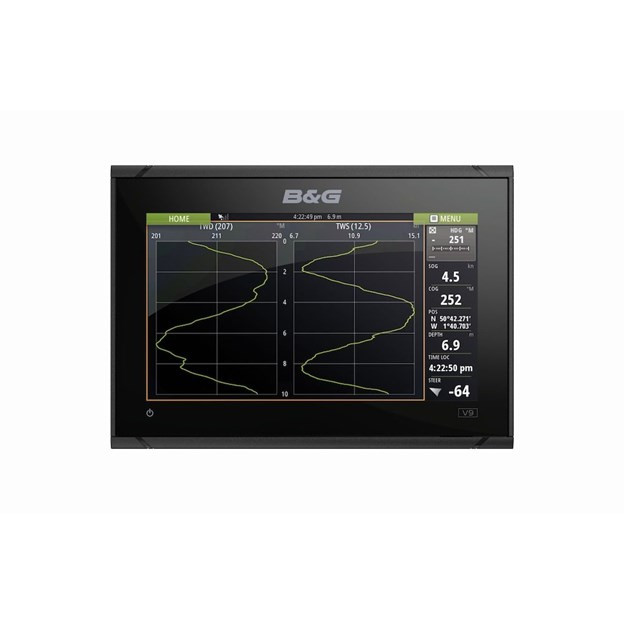

• Instrument data display

Info

Article number:

BG-000-13214-001

Display size (inch):

9

Network Protocol:

NMEA2000

GPS:

Igen

Touch screen:

Igen

Navigation category:

Navigációs kijelző

Water resistance rating:

IPX6 & 7

Brightness (nit):

1200

Website:

https://www.bandg.com/en-gb/bg/type/chartplotter/v...

Weight:

1.32 kg/pcs

Technical specification

Category	Details
Display
Backlight Color	White
Display Resolution	800 x 480
Display Size	9 inches
Screen Brightness	1200 nits
Viewing Angles	80° top/bottom, 80° left/right
Connectivity
Bluetooth	Internal
Ethernet Ports	1 x 5 pin yellow connector x 100 Mbits/s. Radar and Sirius (USA only) connectivity only
Wi-Fi	Internal
N2K PG NsReceive	59392, 59904, 60928, 126208, 126992, 126996, 127237, 127245, 127250, 127251, 127257, 127258, 127488, 127489, 127493, 127503, 127504, 127505, 127506, 127507, 127508, 127509, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129041, 129283, 129284, 129539, 129540, 129794, 129801, 129283, 129284, 129539, 129540, 129794, 129801, 129802, 129808, 129809, 129810, 130074, 130306, 130310, 130311, 130312, 130313, 130314, 130576, 130577
NMEA 0183 Sentences supported	Exports NMEA0183 over WiFi
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	None
SD Card Storage	2 Micro SD slots, max. 32GB each. >32 GB format to NTFS
Video	None
Cartography
Charts Supported	Insight, Navionics (Gold, NAV+, Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Autopilot
Manouevres Turn Patterns	Tack / Gybe, Depth contour tracking
Steering Modes	Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail)
Approvals
Approvals Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1
Electrical
Power Consumption max	20 W
Power Consumption typical	12 W
Recommended Fuse Rating	3A
Supply Voltage	12V (10 – 17V)
Environment
Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Shock Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX6 & 7
GPS
Correction	WAAS, MSAS, EGNOS, GLONASS
GPS Receiver Channels	32 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft.)
Time to First Fix	Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
Update rate	10 Hz
MFD
AIS	Receive AIS data over NMEA 2000 only
Autopilot	Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included	TBD
Digital Switching	BEP C-Zone, NaviOP
GPS	Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage	90MB
Multimedia	via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)
Sonar Compatibility	Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Weather	Sirius XM WM-3 (USA only), GRIB
Physical
Dimensions (W x H x D)	243 mm x 171 mm x 83 mm (9.56" x 6.71" x 3.26") (no bracket)
Mounting Type	Bracket or Panel
Weight	1.32 kg (2.9 lbs)
