B&G ZC2 Remote - Portrait

Name: B&G ZC2 Remote - Portrait
Brand: B&G
SKU: BG-000-12365-001

Manufacturer:

B&G

Manufacturer Article number:

000-12365-001

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

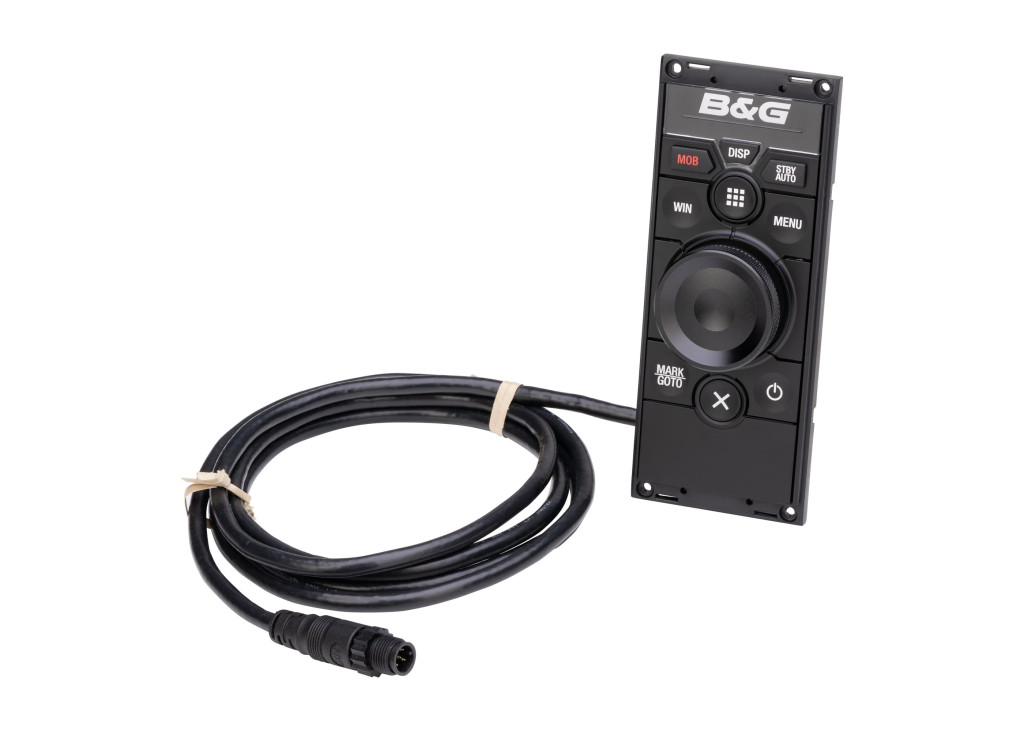

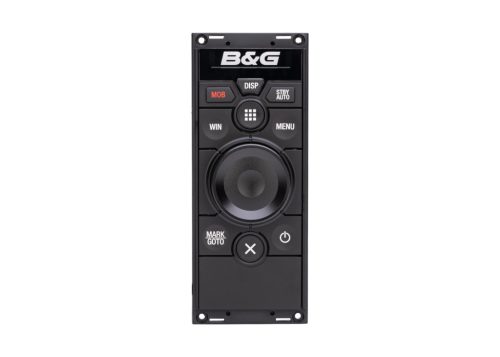

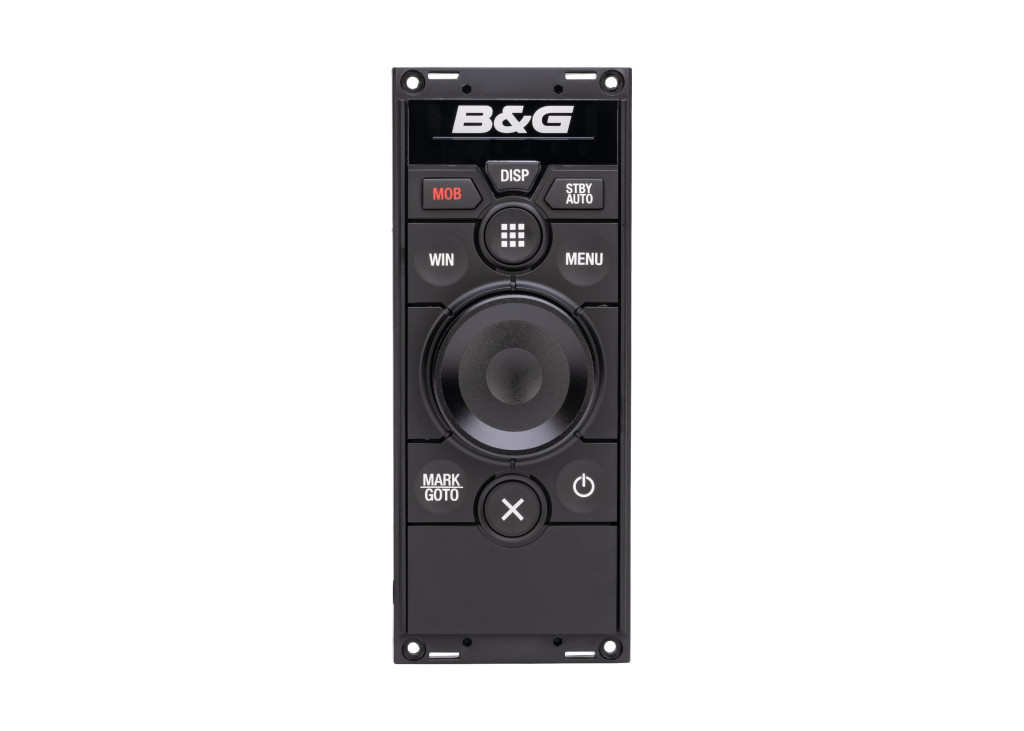

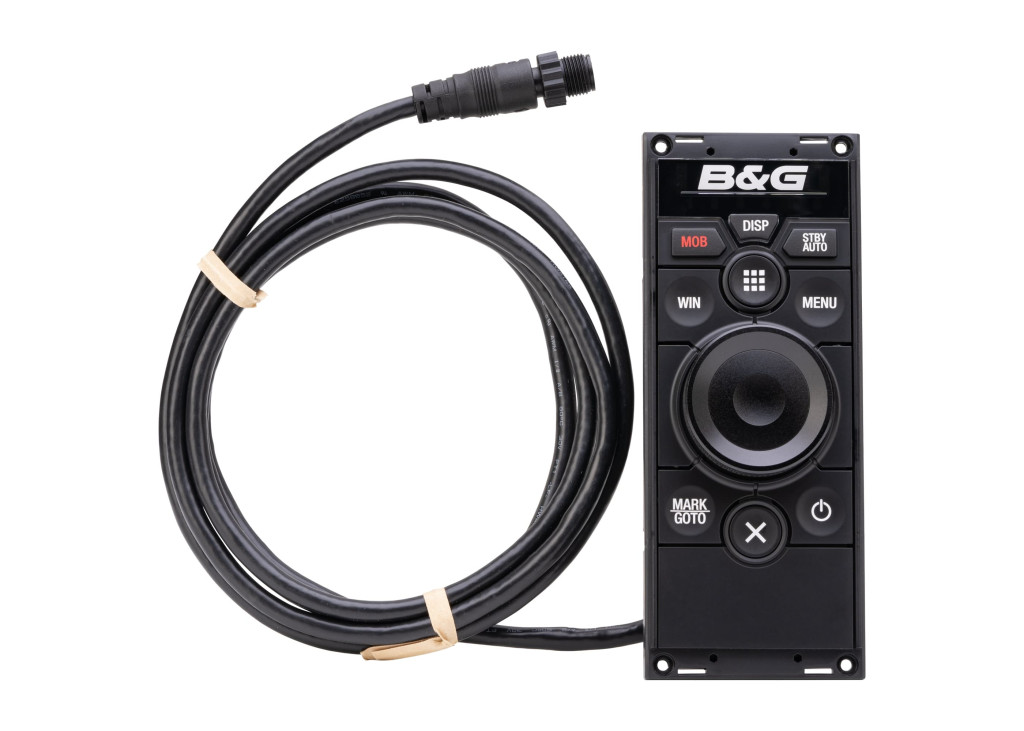

Perfectly designed for mounting in a cockpit pedestal, by the chart table or in other locations suiting a ‘portrait’ orientation. The B&G ZC2 Remote Controller provides intuitive keypad and rotary-dial command of up to six Zeus², Zeus³, Glass Helm or Vulcan multifunction displays; and can be used to control a B&G autopilot via any networked display.

Details

B&G ZC2 Remote - Portrait

Manage Multiple Displays
Networked with a single NMEA 2000® connection for both power and control, one ZC2 Remote Controller can operate up to six networked multifunction displays. Integrated LED indicator lights clearly show the selected display number, while a dedicated button cycles quickly through the available displays. The ZC2 can also be used as an autopilot remote control via any networked display; while the MOB function enables a remote MOB alert to be issued across all networked displays.

Controls Optimised for Zeus², Zeus³, Glass Helm or Vulcan
The ZC2 Remote Controller features a keypad specifically designed to operate the latest Zeus², Zeus³, Glass Helm or Vulcan multifunction displays efficiently and reliably in all conditions. The controller’s high-quality aluminium dial features a knurled edge for precise rotary control, and built-in cursor functions for easy on-screen navigation.

Easy Mounting in Vertical or ‘Portrait’ Orientation

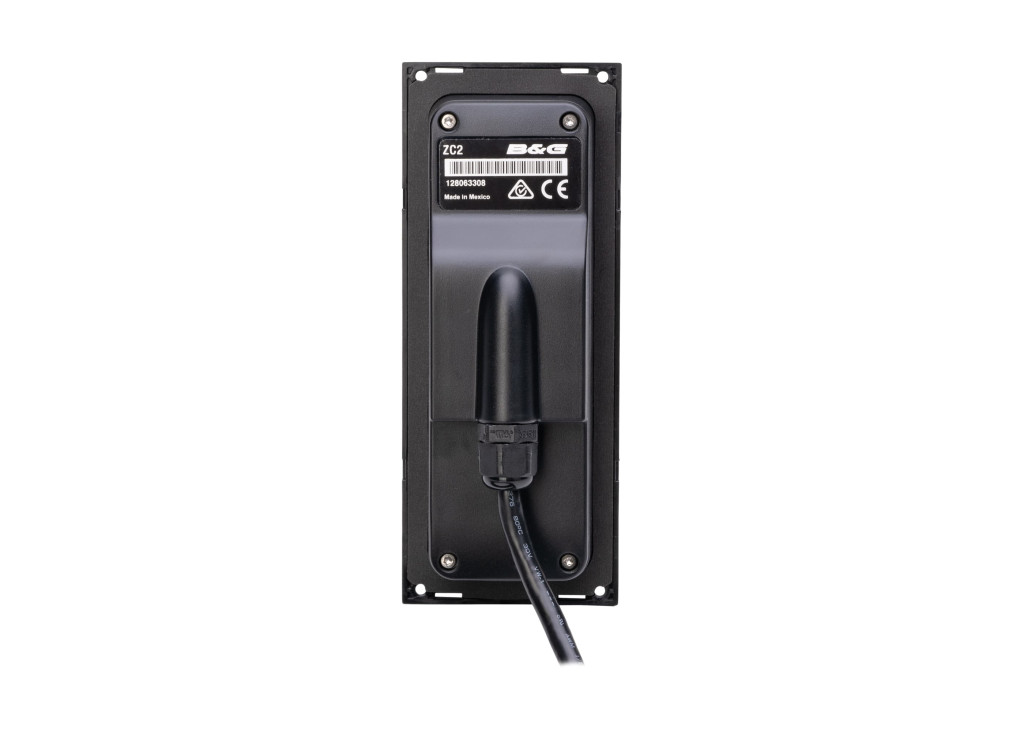

The ‘portrait’ ZC2 is perfectly suited to mounting in the pedestal or chart table, with its narrow design and cable positioned specially to fit such installations. Dash mounting provides a slim 8mm profile, while an optional bracket allows total flush-mount installation.

Key Features

Control up to six Zeus², Zeus³, Glass Helm or Vulcan multifunction displays
Autopilot remote control via any networked display

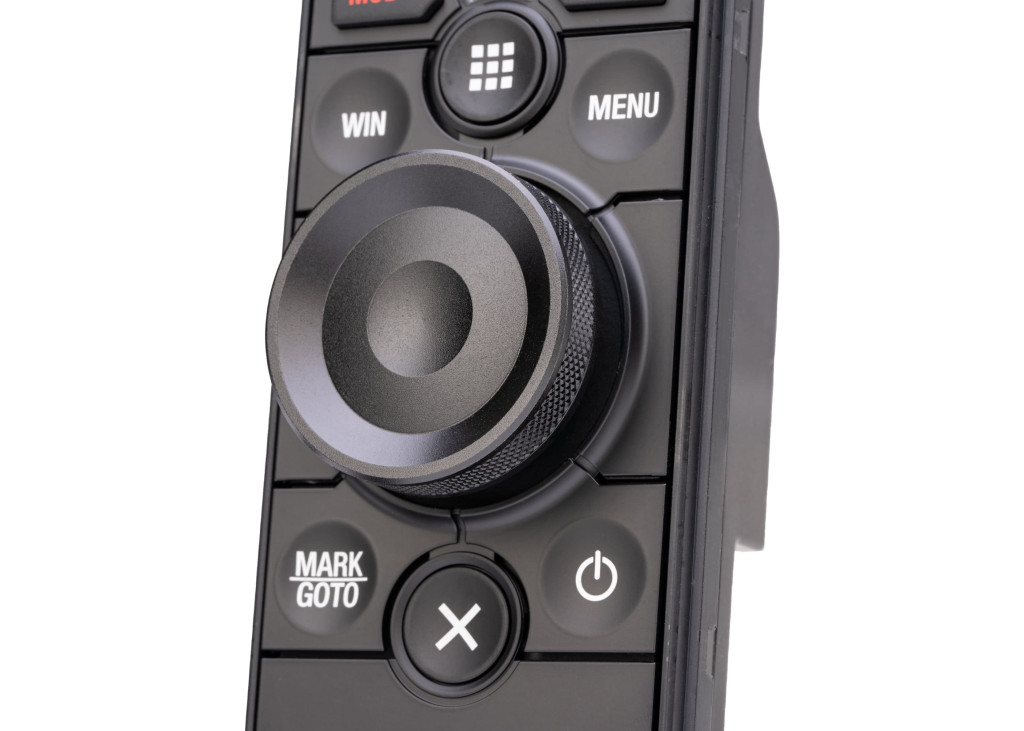

High-quality aluminium control dial with built-in cursor functions
MOB function
Portrait orientation (landscape version also available)
Narrow design perfect for chart table mounting
Dash mount with low 8mm profile
Zero-profile flush mount with optional bracket
Integrated high-decibel speaker for critical alarms

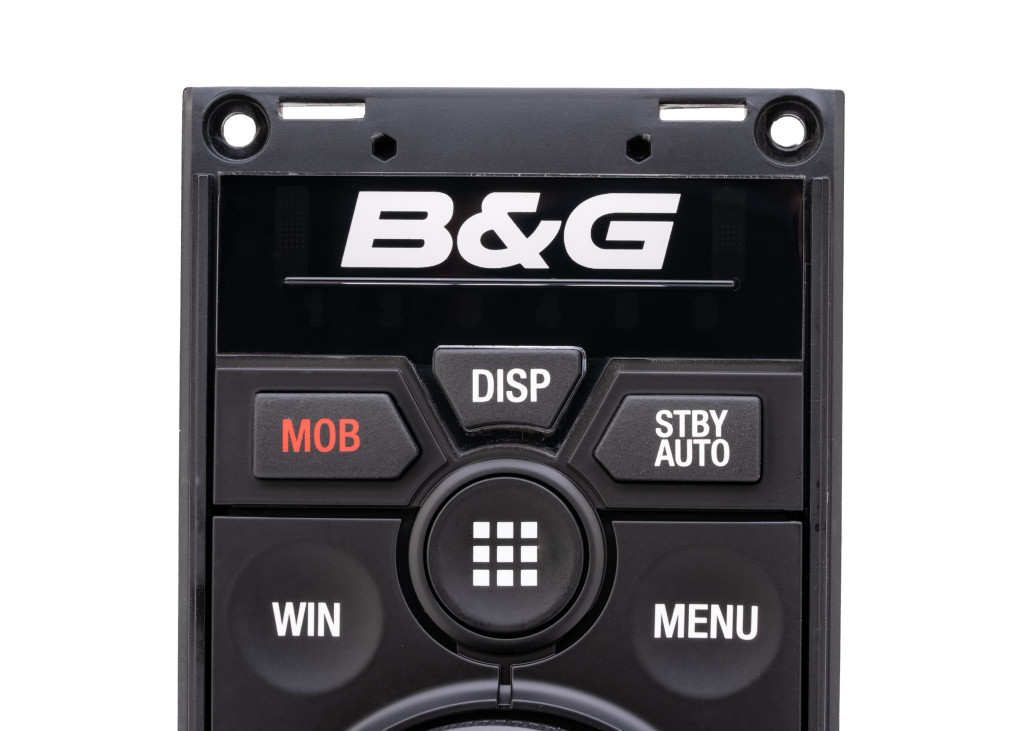

Quickly switch displays with dedicated button and LED indicators
Single NMEA 2000® connection

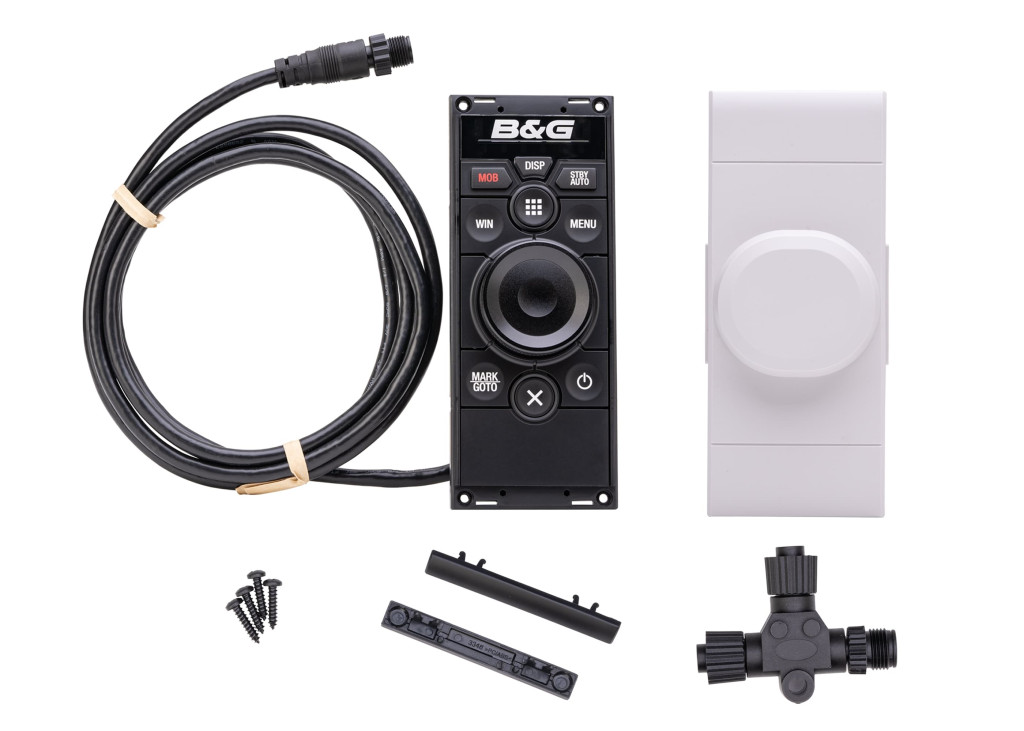

N2K-T-RD Network T-Connector

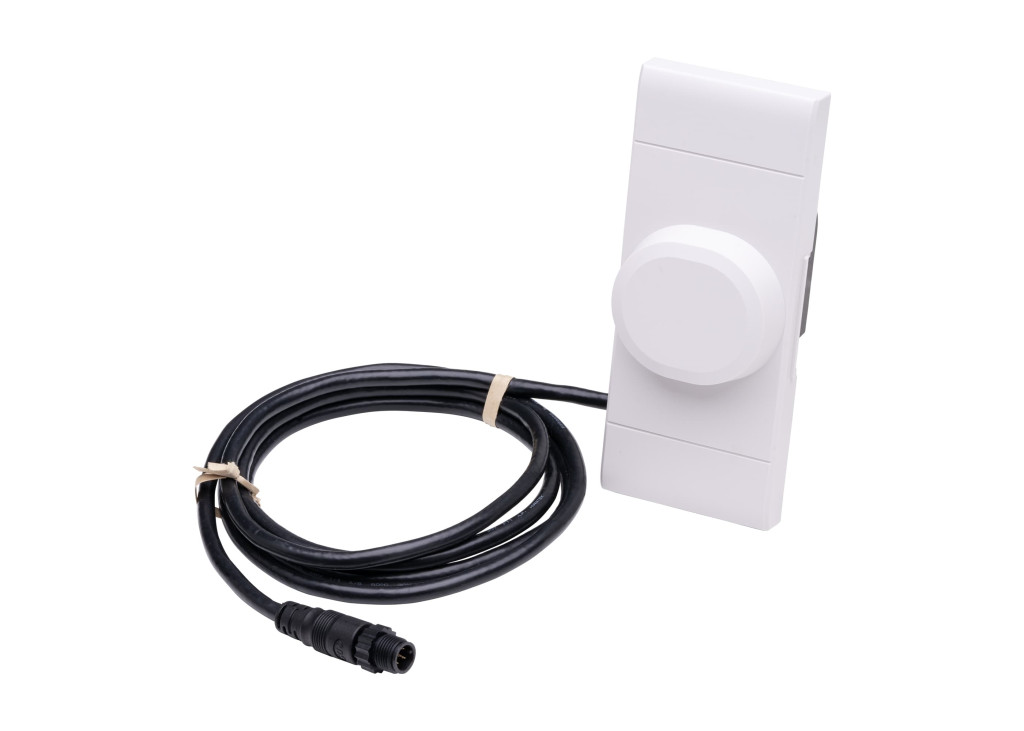

OP50/ZC2 Keypad Sun Cover
ZC2 Dash Kit (Gasket Bezel Screw)

Data

Article number:

BG-000-12365-001

IP rating:

IPX6

Website:

https://www.bandg.com/en-eu/bg/type/chartplotter/b...

Weight:

300 g/pcs

Technical specification

Category	Specification

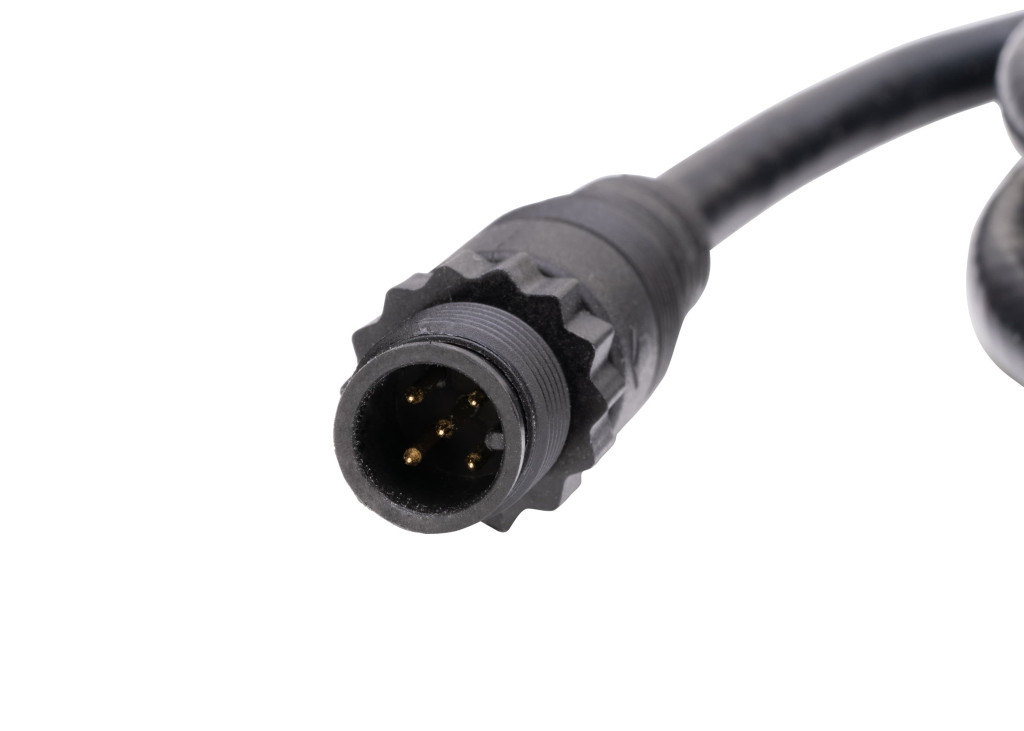

Connectivity	NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 2 LEN
Approvals	Compliance: IEC/EN 60945
Electrical	Power Consumption (max): 1.0W
	Power Consumption (min): 0.5W
	Power Consumption (typical): 0.6W
	Recommended Fuse Rating: 5A
	Supply Voltage: 12V DC (10-16V DC)
Environment	Humidity: Up to 95% RH
	Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
	Waterproof Rating: IPX6
Physical	Compass Safe Distance: 200 mm (0.9')
	Dimensions (W x H x D): 60 x 150 x 45 mm (2.4 x 5.9 x 1.8")
	Mounting Type: Flush
	Weight: 0.3 kg (0.66 lbs)
Other	Interface: Keypad

Download User manual

Download User manual
