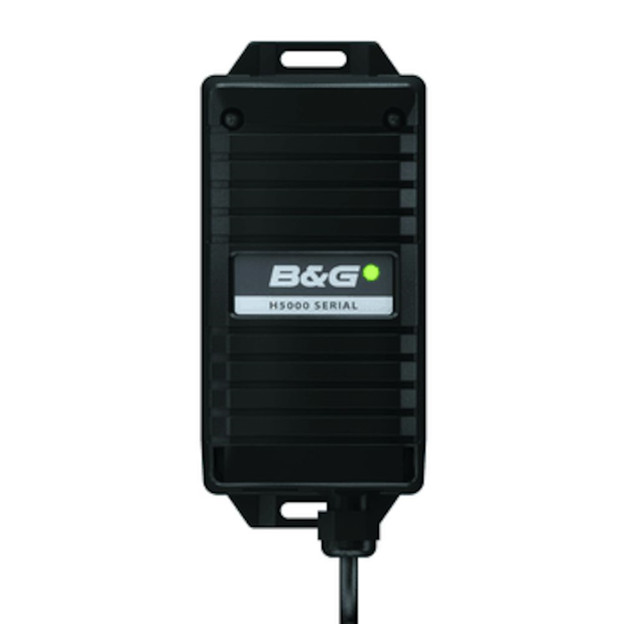

B&G H5000 Serial Expansion
Manufacturer:
B&G
Manufacturer Article number:
000-11726-001
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Allows expansion of an H5000 system. Provides additional serial interfacing options. Typically used for interfacing B&G HGSC heading sensor, GPS sensors, 3rd party heading sensors and other NMEA 0183 devices.
Bundle offers
B&G H5000 Serial Expansion
Allows expansion of an H5000 system to enable additional serial interfacing options. Typically used for interfacing HGSC compass, GPS units, Gyro Compasses and other NMEA 0183 devices. The H5000 CPU, calculating precise data up to 50 times faster than its predecessor, provides Hydra, Hercules and Performance level software options tailored for all users from serious cruisers to professional racers. This powerful 5-inch, sunlight viewable, colour display with a straightforward user interface is packed with unique sailing features including SailSteer and Start Line. From clever sailing algorithms, including B&G’s unique boat motion corrections, to dedicated start line features, the H5000 won’t be beaten.
Key Features
- 2x bi-directional Serial ports
- Configurable NMEA 0183 input/output sentences
- Configurable baud rate and data update rates
- Support for HGSC Compass
- Configuration via H5000 CPU web browser
- Industry standard compatible CAN network
0.4m Micro-C cable, metal
Micro-C T-piece, metal
Article number:
BG-000-11726-001
IP rating:
IP66
Weight:
170 g/pcs
| Category | Details |
|---|---|
| Connectivity | |
| NMEA 2000 Connectivity | 1 x NMEA2000 Micro-C port, 1 LEN |
| Approvals | |
| Approvals Compliance | IEC/EN 60945 |
| Electrical | |
| Power Consumption (typical) | 0.6 W |
| Recommended Fuse Rating | 5 A |
| Supply Voltage | 12 V DC (10-16 V DC) |
| Environment | |
| Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
| Waterproof Rating | IP66 |
| Physical | |
| Dimensions (W x H x D) | 61 x 131 x 45 mm (2.4 x 5.2 x 1.8") |
| Weight | 0.17 kg (0.37 lbs) |
| Other | |
| Interface | via Webserver on CPU |
