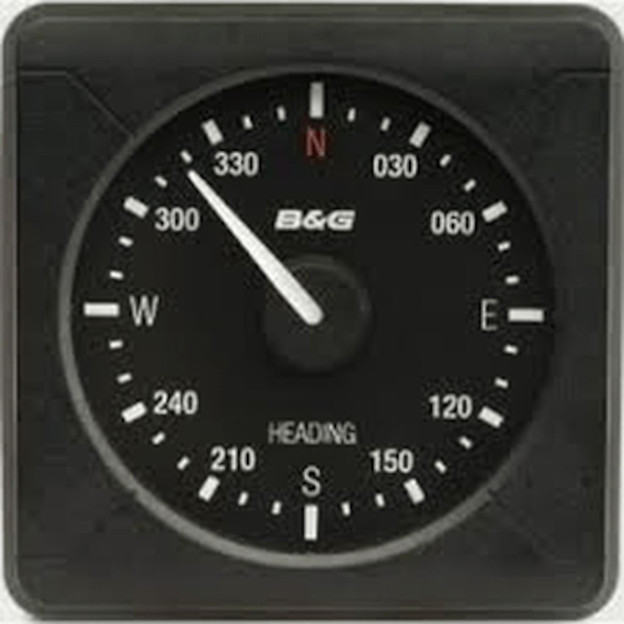

B&G H5000 Analogue Heading Display

The B&G H5000 Analogue Heading display provides information for offshore sailors and racers. A component in the complete B&G H5000 instrument and autopilot system line, which offers a wide range of accurate sensors, processors, and displays that can be combined to create a complete and personalized system for your vessel. H5000 navigation, instrument and autopilot systems provide accuracy, choice and performance for offshore sailors and racers. Proven over literally millions of ocean miles, H5000 provides a wide range of displays, sensors and processors to provide a complete and personal system.

Key Features

• Front mounted, low profile design
• ‘Daisy-chain’ option for ease of installation
• Clear night lighting
• High integrity mechanical construction including toughened glass display window
• Compatible with H5000 and H3000 systems

Data

Article number:

BG-000-11722-001

IP rating:

IP67

Website:

https://www.bandg.com/en-eu/bg/type/instruments/h5...

Weight:

500 g/pcs

Technical specification

Category	Details
Display
Backlight Color	White
Connectivity
N2K PG Ns	127250, 130577, 129026, 127237, 127258
NMEA 2000 Connectivity	2 x NMEA2000 Simnet port, 2 LEN
Approvals
Approvals Compliance	IEC/EN 60945
Electrical
Recommended Fuse Rating	5 A
Supply Voltage	12 V DC (10-16 V DC)
Environment
Humidity	Up to 95% RH
Operating Temperature Range	-10 to +55ºC (+14 to 131ºF)
Waterproof Rating	IP67
Physical
Compass Safe Distance	200 mm (7.9")
Dimensions (W x H x D)	115 x 115 x 68 mm (4.5 x 4.5 x 2.7")
Mounting Type	Flush
Weight	0.5 kg (1.1 lbs)
