B&G H5000 Analogue AWA 360 display
Manufacturer:
B&G
Manufacturer Article number:
000-11714-001
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

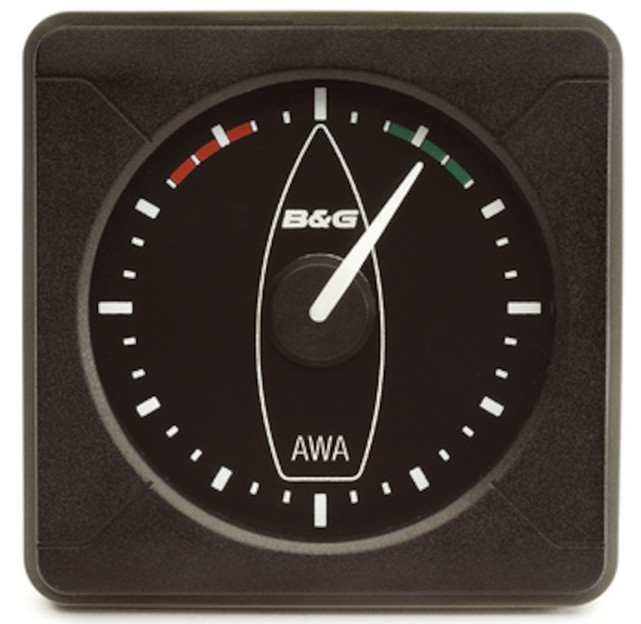

The B&G H5000 Analogue Apparent Wind Angle display provides accurate apparent 360 degree wind angles for offshore sailors and racers.
Bundle offers
B&G H5000 Analogue AWA 360 display
The B&G H5000 Analogue Apparent Wind Angle display provides accurate AWA for offshore sailors and racers. A component in the complete B&G H5000 instrument and autopilot system line, which offers a wide range of accurate sensors, processors, and displays that can be combined to create a complete and personalized system for your vessel. H5000 navigation, instrument and autopilot systems provide accuracy, choice and performance for offshore sailors and racers. Proven over literally millions of ocean miles, H5000 provides a wide range of displays, sensors and processors to provide a complete and personal system.
Key Features
- Front mounted, low profile design
- ‘Daisy-chain’ option for ease of installation
- Clear night lighting
- High integrity mechanical construction including toughened glass display window
- Compatible with H5000 and H3000 systems
- H3000 Analogue Bezel (Black)
H5000/H3000 Sun Cover (Analogue)- B&G Simnet cable 0.35m (RA-RA)
Article number:
BG-000-11714-001
Weight:
500 g/pcs
| Category | Details |
|---|---|
| Display | |
| Backlight Color | White |
| Connectivity | |
| N2K PG Ns | 130306 |
| NMEA 2000 Connectivity | 2 x NMEA2000 Simnet port, 2 LEN |
| Approvals | |
| Approvals Compliance | IEC/EN 60945 |
| Electrical | |
| Recommended Fuse Rating | 5 A |
| Supply Voltage | 12 V DC (10-16 V DC) |
| Environment | |
| Humidity | Up to 95% RH |
| Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
| Waterproof Rating | IP67 |
| Physical | |
| Compass Safe Distance | 200 mm (7.9") |
| Dimensions (W x H x D) | 115 x 115 x 68 mm (4.5 x 4.5 x 2.7") |
| Mounting Type | Flush |
| Weight | 0.5 kg (1.1 lbs) |
