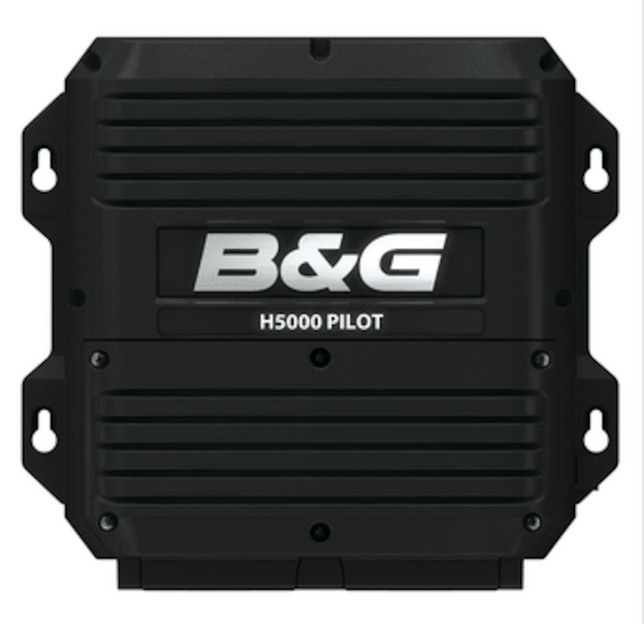

B&G H5000 Pilot Computer

Name: B&G H5000 Pilot Computer
Brand: B&G
SKU: BG-000-11554-001

Manufacturer:

B&G

Manufacturer Article number:

000-11554-001

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The record-breaking B&G Pilot features dedicated steering modes and sailing algorithms including Gust Response, Recovery and High Wind Response.

Details

B&G H5000 Pilot Computer

The record-breaking B&G Pilot has been refined to complement the powerful H5000 family and features dedicated sailing algorithms to meet the precise needs of a performance sailboat and its crew. Whether a short-handed cruiser or solo racer, you’ll benefit from dedicated steering modes and sailing algorithms including Gust Response, Recovery and High Wind Response. Developed in the Grand Prix sailing arena, the H5000 Pilot Computer networks seamlessly with your H5000 system.

Key Features

Selectable steering modes:The H5000 Pilot CPU lets you elect to steer to Heading, Wind or Waypoint
AWA and TWA steering: The H5000 Pilot CPU can utilise Apparent, True or Polar wind modes for optimum performance under sail.
Intuitive and responsive: Provides gust and high-wind response modes for rapid response to changing conditions
Optimum course keeping
Features auto response switching and recovery mode for optimum course keeping in varying sea-states.

Data

Article number:

BG-000-11554-001

Website:

https://www.bandg.com/en-eu/bg/type/autopilots/aut...

Weight:

1.1 kg/pcs

Technical specification

Category	Details
Connectivity
NMEA 0183 Sentences	Input: AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA. Output: HDG (10Hz) or HDT (10Hz), RSA (5Hz).
NMEA 2000 Connectivity	1 x CAN terminal, 1 LEN
Autopilot
Compass Sensor Support	NMEA2000, NMEA0183
Drive Output	12/24 VDC. Reversible motor control: 30A, 50A peak (1 sec.). Solenoid control: 10A (min. 10mA).
Engine Drive Systems Integration	Reversible pump, Solenoid valve on/off
Rudder Sensor Support	RF300, RF45X, RF25N, RF70
Electrical
Power Consumption Max	50 mA (from CAN)
Power Consumption Typical	50 mA (from CAN)
Recommended Fuse Rating	Internal fuse 30A (Slow)
Supply Voltage	12/24 VDC +30% / -10%
Environment
Operating Temperature Range	-15 to +55ºC (5 to 131ºF)
Storage Temperature Range	-30 to +70ºC (-22 to +158ºF)
Waterproof Rating	IPx5
Physical
Compass Safe Distance	0.3 m (11.8")
Dimensions (W x H x D)	211 x 196 x 65.5 mm (8.29 x 7.72 x 2.58")
Mounting Type	Bulkhead
Weight	1.1 kg (2.4 lbs)
