B&G H5000 Performance Base Pack
Manufacturer:
B&G
Manufacturer Article number:
000-11550-001
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Provides core components to start your H5000 system design
Bundle offers
Key Features

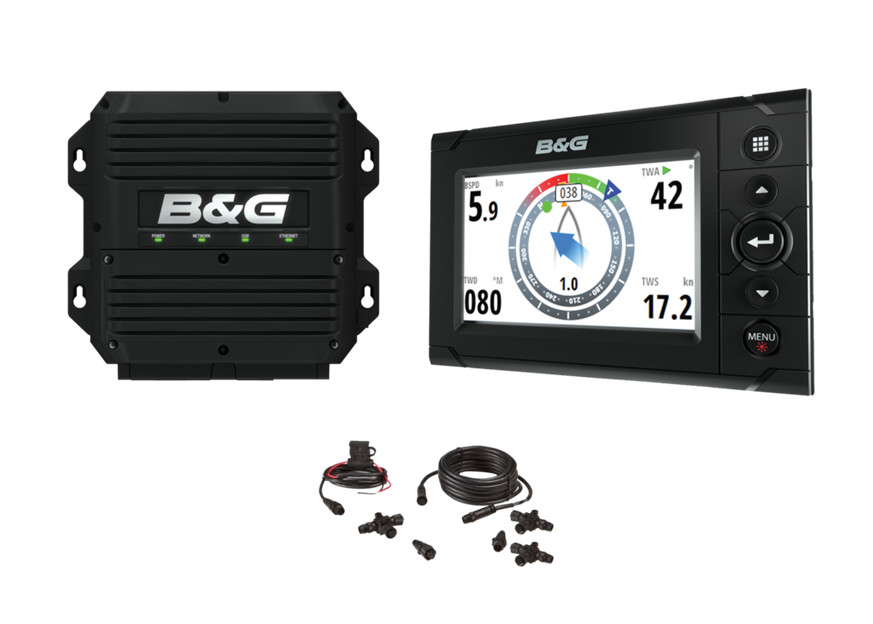

- Provides core components to start your H5000 system design
H5000 Graphic Display

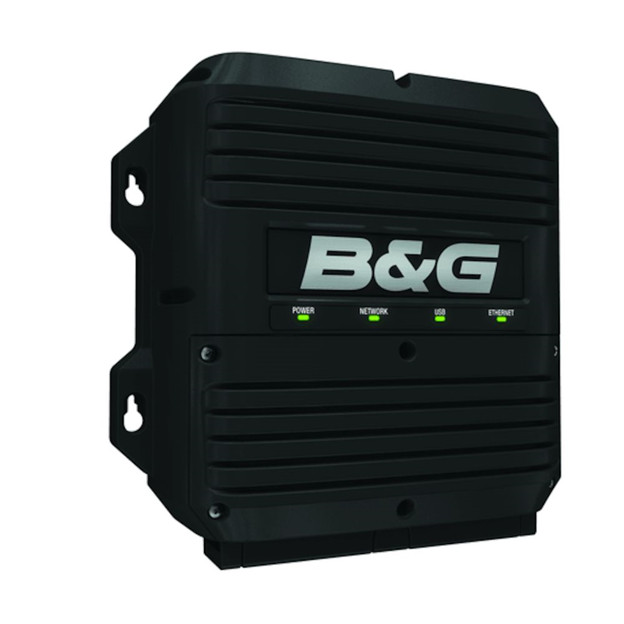

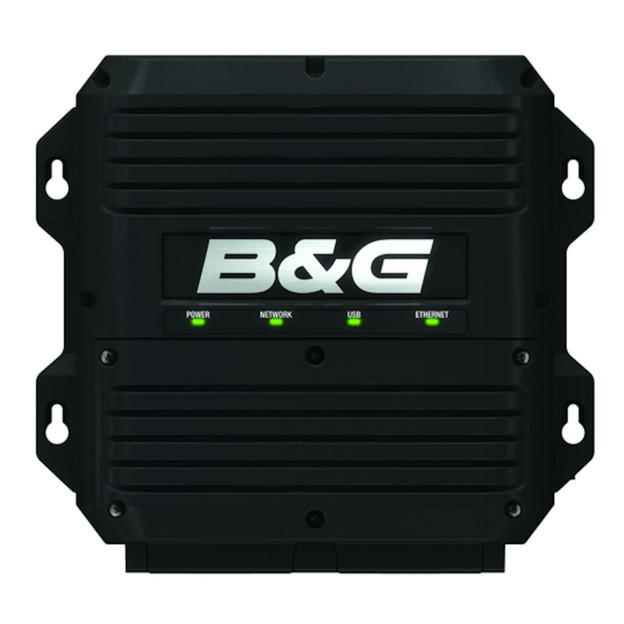

H5000 CPU Performance Central Processor Unit
Micro-C Backbone Kit
Article number:
BG-000-11550-001
Weight:
700 g/pcs
| Category | Details |
|---|---|
| Connectivity | |
| Ethernet Ports | 1 x 100 Mbit |
| NMEA 0183 Sentences | Input: GGA, GLL, RMA, RMB, RMC, VTG, ZDA, VBW, APB, BOD, BWC, GSA, GSV, AAM, DPT, HDT, HDG, XTW, MWV, THS, XDR, MTW. Output: GGA, GLL, RMB, RMC, VTG, ZDA, VBW, APB, BWC, GSA, GSV, AAM, VHW, VLW, DPT, HDT, HDG, ROT, XTE, MWV, THS, XDR, MTW, MWD, VDR. |
| NMEA 2000 Connectivity | 1 x NMEA2000 Micro-C port, 1 LEN |
| PC Connectivity | 1 x Ethernet (webserver), 1 x USB (software update) |
| Approvals | |
| Approvals Compliance | IEC/EN 60945 |
| Electrical | |
| Power Consumption Typical | 2.4 W |
| Recommended Fuse Rating | 5 A |
| Supply Voltage | 12 V DC (9-16 V DC) |
| Environment | |
| Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
| Waterproof Rating | IPX4 |
| Physical | |
| Compass Safe Distance | 300 mm (1.0') |
| Dimensions (W x H x D) | 211 x 196 x 66 mm (8.3 x 7.7 x 2.6") |
| Weight | 0.7 kg (1.6 lbs) |
| Other | |
| Interface | Webserver |
| Languages | English |
