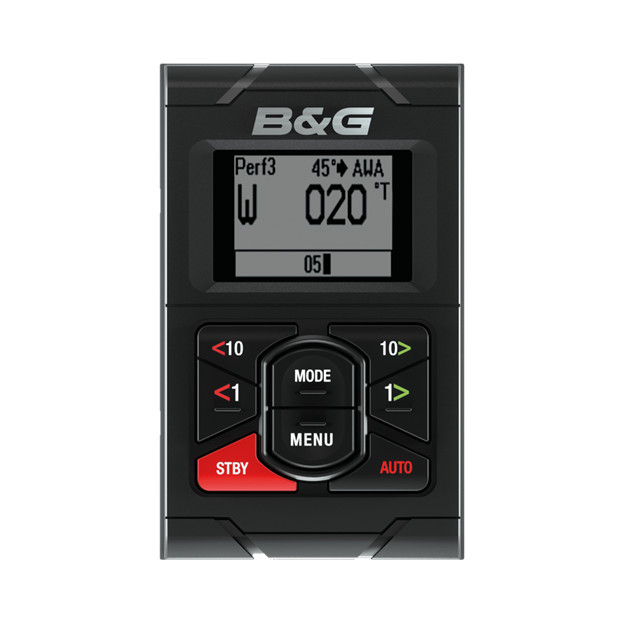

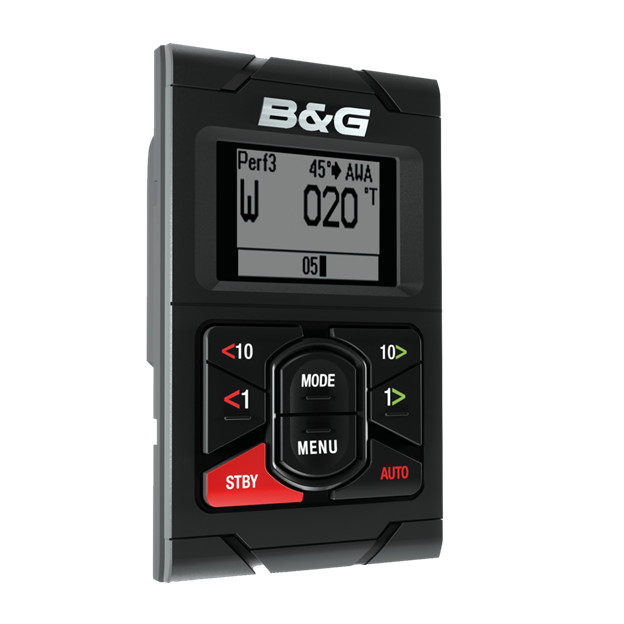

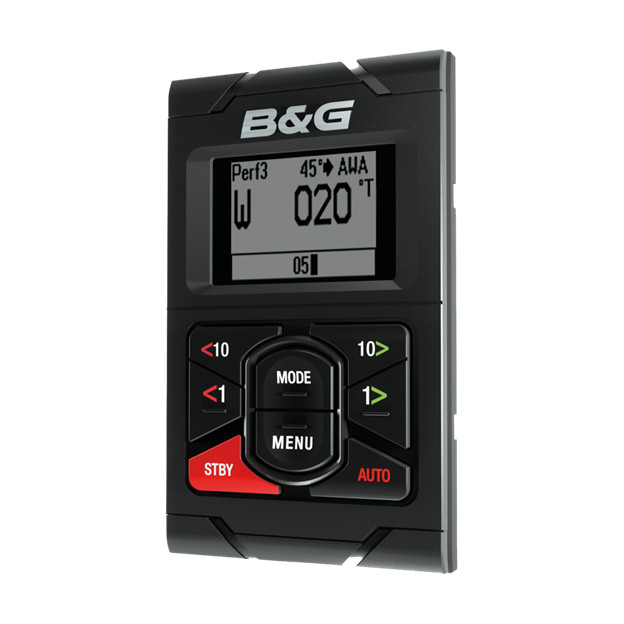

B&G H5000 Pilot Controller
Manufacturer:
B&G
Manufacturer Article number:
000-11544-001
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Provides secure autopilot control and setup from its dedicated keypad. As the primary Pilot controller, or as a second station to a Zeus chartplotter, the Pilot Controller provides assured control and feedback via its high-resolution display.
Bundle offers
B&G H5000 Pilot Controller
Enjoy straightforward and secure control and setup of B&G’s powerful H5000 Pilot from the dedicated keypad of this Pilot Controller unit. As the primary Pilot controller, or combined with a Zeus chartplotter, the H5000 Pilot Controller provides assured control and feedback via a high-resolution compact monochrome display. Waterproof to IPx7 and with a tough optically bonded display, this dedicated controller lets you manage everything to do with the Pilot whatever the conditions, from commissioning to control. It features the same mechanical design as the H5000 displays, for rugged durability and consistent aesthetics.
Key Features
- Dedicated Pilot control: Developed to complement the H5000 Pilot Computer, this Controller manages every function of this powerful and trusted tool – from commissioning to control
- Glass-bonded monochrome display: The bonded glass LCD display is tough, waterproof and condensation-resistant in the most testing environments with high-resolution monochrome screen, with wide viewing angle, for optimum readability and clear presentation of Pilot data in all light conditions.
- Straightforward interface: The controller’s dedicated keypad and intuitive operation makes commissioning and control of the Pilot straightforward, flexible and convenient.
- Waterproof to IPX7
N2K-T-RD Network T-Connector
Article number:
BG-000-11544-001
Weight:
180 g/pcs
| Category | Property | Value |
|---|---|---|
| Display | Backlight Color | White |
| Display Resolution | 128 x 64 | |
| Viewing Angles | 6 o'clock | |
| Connectivity | NMEA 2000 Connectivity | 1x CAN Micro-C port, 3 LEN |
| Autopilot | Engine Drive Systems Integration | n/a |
| Steering Modes | Non Follow Up (NFU), Auto, NoDrift, Wind, Nav | |
| Electrical | Power Consumption max | 130 mA (from CAN) |
| Power Consumption typical | 100 mA (from CAN) | |
| Supply Voltage | 12-16 V via CAN | |
| Environment | Operating Temperature Range | 10°C to +55°C (+32°F to +131°F) |
| Storage Temperature Range | -30°C to +70°C (-22°F to +158°F) | |
| Waterproof rating | IPX7 | |
| Physical | Compass Safe | 0.3 m (11.8") |
| Dimensions (W x H x D) | 70 x 114 x 41 mm (2.76 x 4.49 x 1.61") | |
| Mounting Type | Flush | |
| Weight | 0.18 kg (0.4 lbs) | |
| Other | Interface | Keypad |
| Languages | English, German, French, Spanish, Italian, Dutch, Swedish, Norwegian |
