B&G H5000 Race Display
Youtube video
Manufacturer:
B&G
Manufacturer Article number:
000-11543-001
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
The H5000 Race Display features a clear segmented display for viewing essential data at a glance, with update rates up to 10Hz.
Bundle offers
B&G H5000 Race Display
Product details

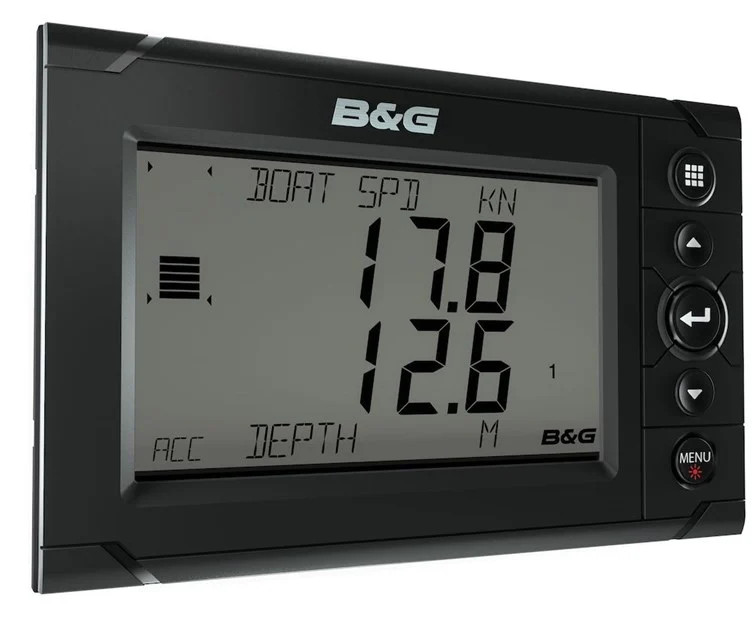

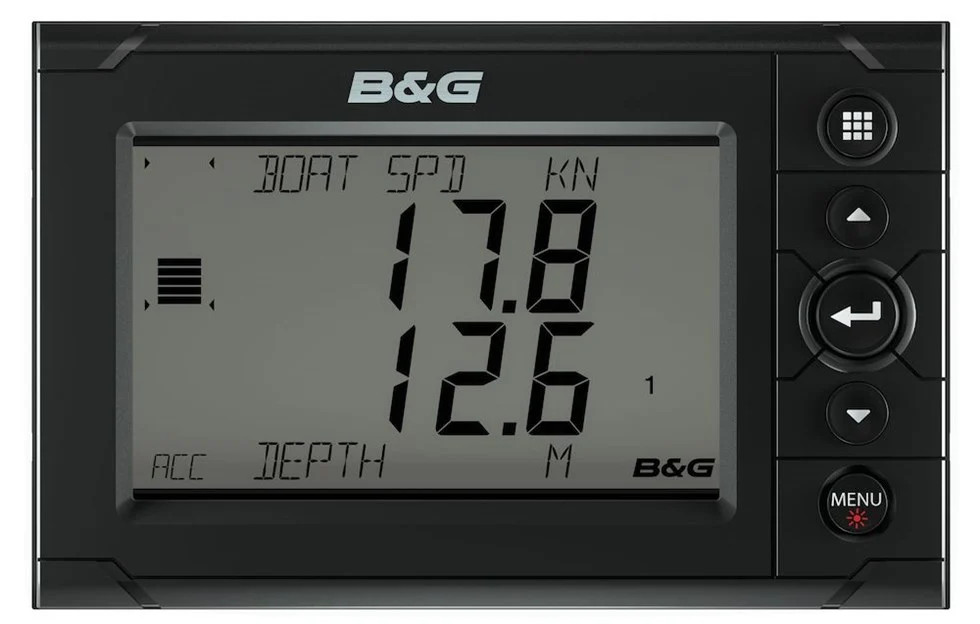

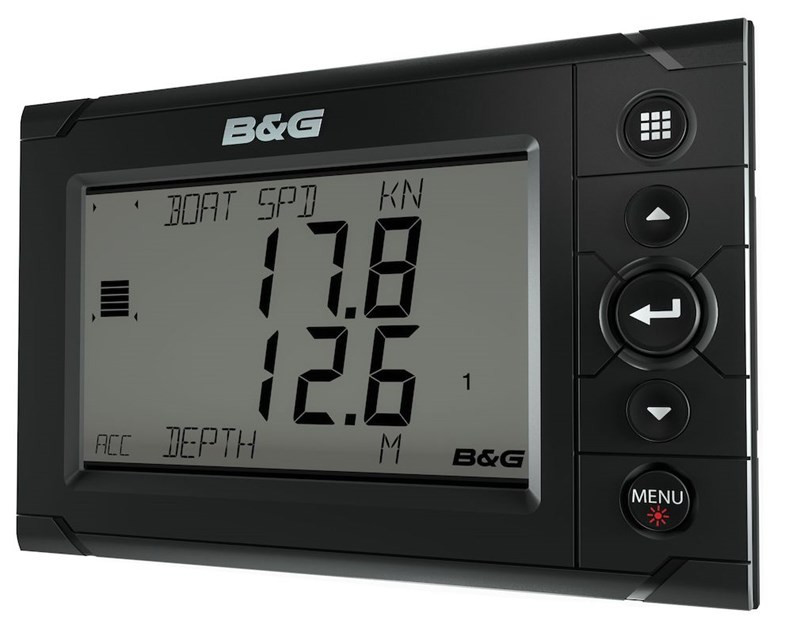

The bonded glass H5000 Race Display features large, clear custom display to deliver essential race data at a glance. A unique bar graph adjacent to the numbers provides an immediate visual indicator of target data and trends.
With huge viewing angles and excellent visibility, this 5-inch LCD screen is sunlight readable and the backlight can be dimmed to almost zero for night sailing.
- Clear, highly visible display in all conditions
- Transflective, Custom display
- Optically bonded glass screen
- Ultra-low power consumption
- Tough design - built to last
- HV display control
Key Features
- Extremely High-Contrast Optically Bonded LCD
- 5" sunlight viewable, segmented monochrome, wide-screen display
- Straight-forward user interface
- System status icons
- Bargraph option for graphical view of selected data
- Robust, lightweight ABS construction
- HV, Race TImer and backlight control for H5000
N2K-T-RD Network T-Connector
Article number:
BG-000-11543-001
Weight:
450 g/pcs
| Category | Property | Value |
|---|---|---|
| Display | Backlight Color | Red, White |
| Connectivity | NMEA 2000 Connectivity | 1 x NMEA2000 Micro-C port, 2 LEN |
| Approvals | Approvals Compliance | IEC/EN 60945 |
| Electrical | Power Consumption max | 1.0 W |
| Power Consumption typical | 0.6 W | |
| Recommended Fuse Rating | 5 A | |
| Supply Voltage | 12 V DC (10-16 V DC) | |
| Environment | Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
| Waterproof rating | IPX7 | |
| Physical | Compass Safe | 300 mm (1.0') |
| Dimensions (W x H x D) | 172 x 114 x 40 mm (6.8 x 4.5 x 1.6") | |
| Mounting Type | Flush | |
| Weight | 0.45 kg (1 lbs) | |
| Other | Interface | Keypad |
| Languages | English, German, Spanish, French, Italian |
