BEP Marine Pro Installer 400A Dual Bank Control Switch, (Dupla akkumulátor kapcsoló)

Name: BEP Marine Pro Installer 400A Dual Bank Control Switch, (Dupla akkumulátor kapcsoló)
Brand: BEPMARINE
SKU: BEP-772-DBC

Manufacturer:

BEPMARINE

Manufacturer Article number:

772-DBC

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Another addition to our multi award winning Pro Installer EZ Mount range, the innovative Dual Bank Control switch is like 3 switches in one, House, Start, and Emergency Parallel.

Details

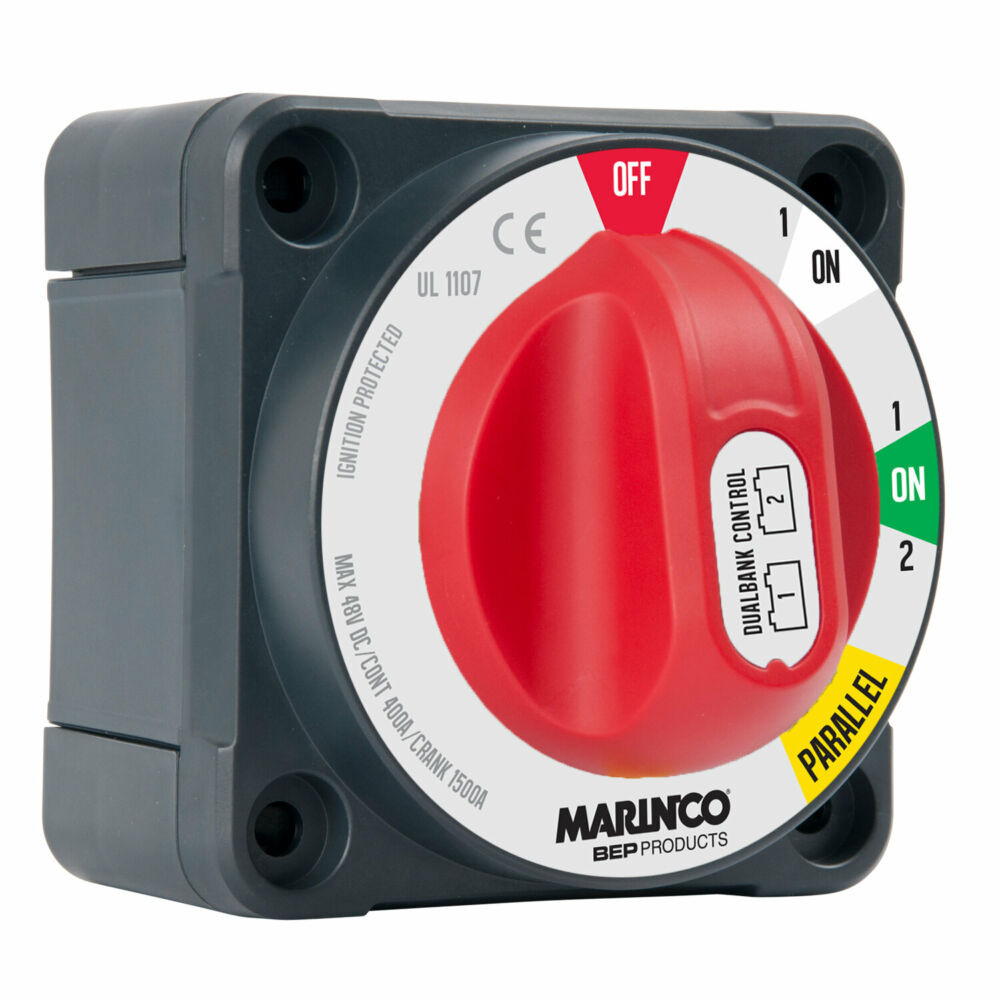

BEP Marine Pro Installer 400A Dual Bank Control Switch

Another addition to our multi award winning Pro Installer EZ Mount range, the innovative Dual Bank Control switch is like 3 switches in one, House, Start, and Emergency Parallel. Offering easy intuitive control for the boater, the Dual Bank Control switch features a unique isolated-On position which allows use of house loads and VHF radio if the engine needs to be electrically isolated, or allows the engine to be isolated during servicing while still providing power to house loads (for lighting, stereo, fridge etc). For boats or vehicles with single Engine and House battery bank, Dual Bank Control allows the use of optimized battery banks for their respective loads; an appropriately sized deep cycle bank for House loads, and thin plate starting batteries for the Engine. Further, sensitive electronics are isolated from starter motor induced voltage spikes because House and Engine loads are separated during normal operation, unlike Selector battery switches. As easy as 1, 2, 3, these revolutionary EZ Mount battery switches allow you to wire from the front for the easiest surface mounting. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze.

Tested to UL1107 ignition protection, CE
Tinned copper 10mm (3/8 inch) studs
Stainless steel washers and nuts
Fiber reinforced plastics
400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking (cable size to achieve ratings 120mm², 4/0, smaller cable size will reduce the Amp rating)
Waterproof to IP67
Same interconnection height as Pro Installer
Removable knob allows isolation during servicing
3 removable side plates for protection
Industry standard 3.85 x 3.85 inch footprint
For surface mounting only
Each Pro Installer battery switch is fully tested for pressure sealing, rotation force and electrically load tested
4x M10 (3/8 inch) Connection Studs
Module Dimensions LxWxH: 98 x 98 x 93mm (3.85 x 3.85 x 3.64”)

Data

Input voltage (DCV):

12/24/48

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

400

Switch position:

OFF/ON1/ON1+ON2

Switch mechanism:

Mechanikus

Website:

https://www8.bepmarine.com/en/p/772-DBC/Pro-Instal...

Weight:

612 g/db

Technical specification

Out of Package Height (in)	3.64
Out of Package Height (metric)	93 mm
Out of Package Width (in)	3.85
Out of Package Width (metric)	98 mm
Out of Package Length/Depth (in)	3.85
Out of Package Depth (metric)	98 mm
Each in Package Height (in) *	2.4
Each in Package Width (in) *	6
Each in Package Length/Depth (in) *	7.4
Each in Package Weight (oz) *	21.6
