BEP Marine Dual Operation VSS (Voltage Sensitive Switch) 275A Cont Motorized, (Feszültségérzékeny kapcsoló)

Bundle offers

• Details
• Data
• Technical specification
• Download User Manual

Details

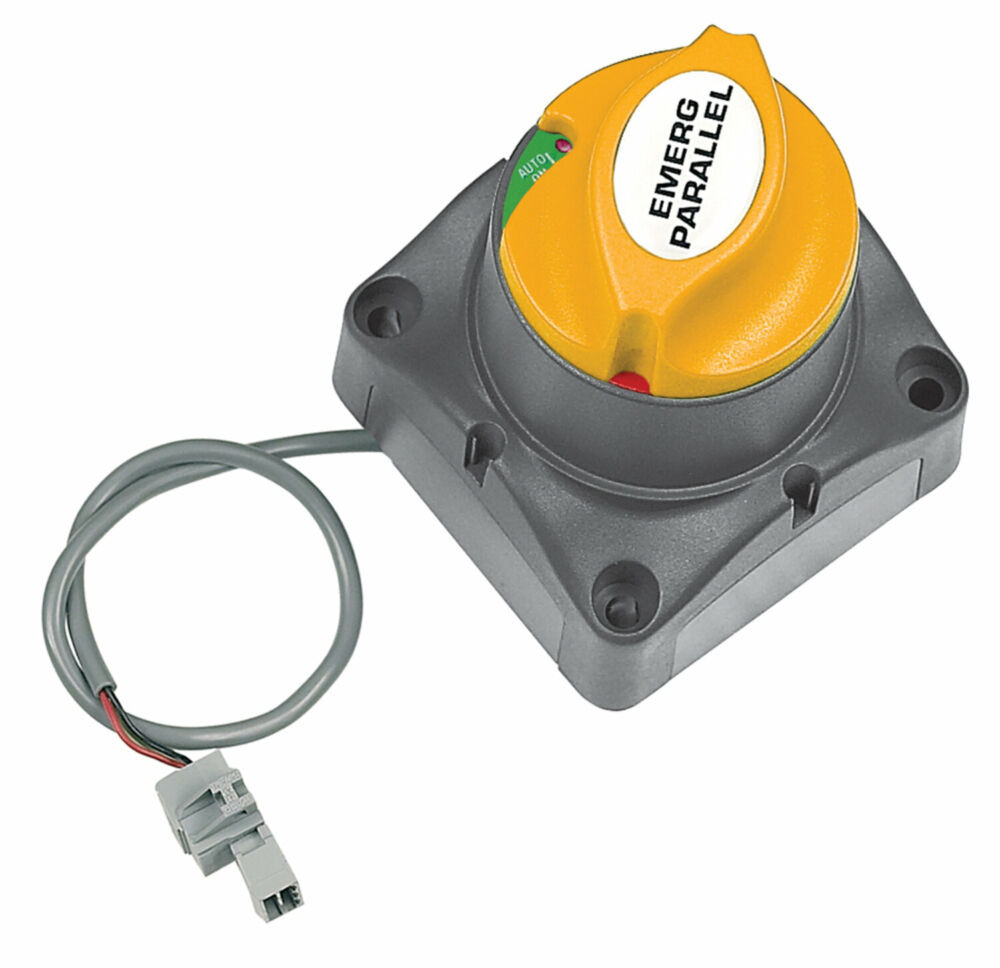

BEP Marine Dual Operation VSS (Voltage Sensitive Switch) 275A Cont Motorized

These Voltage Sensitive Switches (VSS) automatically sense connected battery bank voltages and provide optimal, efficient charging of the second bank. The VSS allows for independent battery banks to be combined or isolated based on the presence of a charging source (such as an engine alternator or battery charger), while also offering remotely activated, high current, emergency parallel connection. Designed and constructed for longevity in the marine environment with tinned copper conductors, stainless steel nuts, and high temperature, fibre reinforced plastics. The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted. The remote emergency parallel function can be operated through a momentary button on the dash which will parallel the batteries for 10 minutes. Once this 10 minutes has passed, if the voltage is high enough, the voltage sensitive switch will stay engaged. If not, it will disengage.

• Dual battery sensing
• Manual override option



Data

Input voltage (DCV):

12

Connectable Circuit:

DC

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

275

Switch position:

OFF/ON

Switch mechanism:

Motoros

Website:

https://www8.bepmarine.com/en/p/701-MDVS/Dual-Oper...

Weight:

260 g/db

Technical specification

Each in Package Height (in) *	4.1
Each in Package Width (in) *	3
Each in Package Length/Depth (in) *	2.9
Each in Package Weight (oz) *	9.17

Download User Manual

Download PDF
