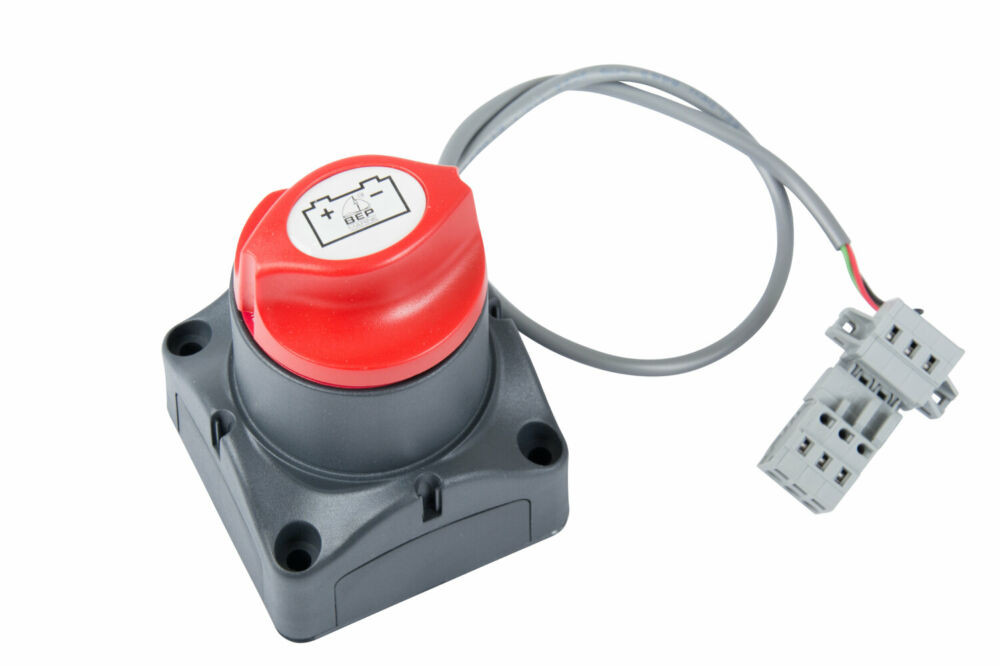

BEP Marine Switch, Battery 275A Motorized CZone Optimised - Wago Plug, (Czone - akkumulátor kapcsoló)

Name: BEP Marine Switch, Battery 275A Motorized CZone Optimised - Wago Plug, (Czone - akkumulátor kapcsoló)
Brand: BEPMARINE
SKU: BEP-701-MDCZ

Manufacturer:

BEPMARINE

Manufacturer Article number:

701-MDCZ

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Optimised for use with, or alongside CZone digital switching systems, the 701-MDCZ is a further development of our proven 701-MD motorized remote battery switches.

Details

BEP Marine Switch, Battery 275A Motorized CZone Optimised - Wago Plug

Optimised for use with, or alongside CZone digital switching systems, the 701-MDCZ is a further development of our proven 701-MD motorized remote battery switches.

Simplifies and speeds CZone installations. Positive activation allows direct wiring from CZone output modules instead of wiring a relay to convert to negative activation.
Allows multiple remote switches to be connected to the same battery switch by using momentary positive remote activation e.g. connecting a wireless remote control, plus a switch on the dashboard
Red wire output can directly drive a piezo buzzer, so "ON" (2 chirps) and "OFF" (1 chirp) signals are sounded to acknowledge remote control activation
Provides greater fail-safe reliability as battery switch remains in the same state even if remote control power/connections are lost
275A Continuous / 455A 5 minutes Intermittent / 1250A 10 seconds Cranking (cable size to achieve ratings 70mm², 2/0, smaller cable size will reduce the Amp rating)
Tested to UL1107 ignition protection, CE
Tinned copper 10mm (3/8") studs
Stainless steel washers/nuts
Fiber reinforced high temperature plastics
Waterproof to IP66
Removable knob allows isolation during servicing
3 removable sideplates for protection Note: Not suitable for emergency parallel applications
Wago and Deutsch plug versions
Note: Piezo buzzers that work directly with the 701-MDCZ switches are 54-27C4/DSP (OEM: 54-27C4) 85 dB and 54-35C2/DSP (OEM: 54-35C2) 97 dB

Data

Input voltage (DCV):

12/24

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

275

Switch position:

OFF/ON

Switch mechanism:

Motoros

Website:

https://www8.bepmarine.com/en/p/701-MDCZ/Switch-Bt...

Weight:

300 g/db

Technical specification

Out of Package Height (in)	4
Out of Package Height (metric)	101 mm
Out of Package Width (in)	2.7
Out of Package Width (metric)	69 mm
Out of Package Length/Depth (in)	2.7
Out of Package Depth (metric)	69 mm
Each in Package Height (in) *	2.9
Each in Package Width (in) *	3
Each in Package Length/Depth (in) *	4.2
Each in Package Weight (oz) *	10.4
