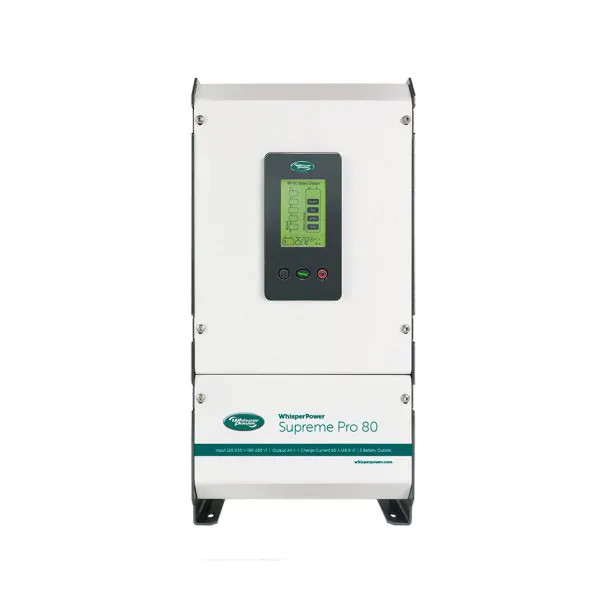

WhisperPower Supreme Pro 24 VDC – 80 A

Best choice for AGM, GEL, Lead acid and Lithium

Commercial vessels, yachts, vehicles and industrial installations carry an enormous amount of electrical and electronic devices that require a safe and non-stop power provision. WhisperPower’s Supreme professional battery chargers combine three vital functions. Smooth, ripple free multiple step battery charging, a power supply function to buffer DC appliances in a direct way and a complete alarm and monitoring device for the entire 24 VDC system. All Supreme Pro models are prepared to operate from 90 – 265 VAC / 50 – 60 Hz input and are fitted with three separate outputs.

Standard features

• Compact, light weight, Aluminum enclosure for bulk head or table top mounting
• Full functional LCD front display with backlight, ON-OFF switch, read-out selector button Battery monitor operational, at “ON” or “OFF” position
• Charge protocol selection by dipswitch, USB and laptop, including Lithium
• Temperature sensor with 12 meter cable and plug
• Robust AC and DC M8 bold connections to connect 3 separate batteries
• Conformal coating protection of power module inside
• Perfectly suitable to back up GMDSS systems
• 5 years product warranty

Alarms and monitoring

• Potential free contacts to detect “AC failure” and “charger failure” alarms, “DC voltage high/low alarm” and “charger temperature” alarm
• WhisperConnect CAN-bus connection possible to connect to other can systems, incl. NMEA 2000
• Analogue interfaces, + and – sense
• USB interface for charge characteristic programming

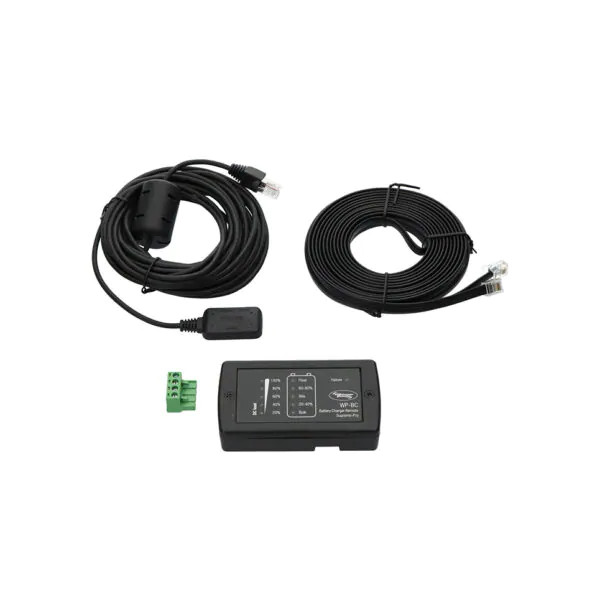

• Remote panel with current adjust, to reduce AC consumption

Optional

• WhisperTouch 5, 7 or 10 remote panel
• Analogue remote panels showing “charge status” and “current” control
• AGM, GEL, Lead acid or Lithium batteries

Suitable to charge any battery

Any battery, either AGM, GEL, Lead acid, traction or Lithium can be connected to the Supreme Pro. Easy programming by dip switch, USB connect or laptop. Three separate batteries can be connected (1 main, 2 x 6 Amp, all multiple step).
