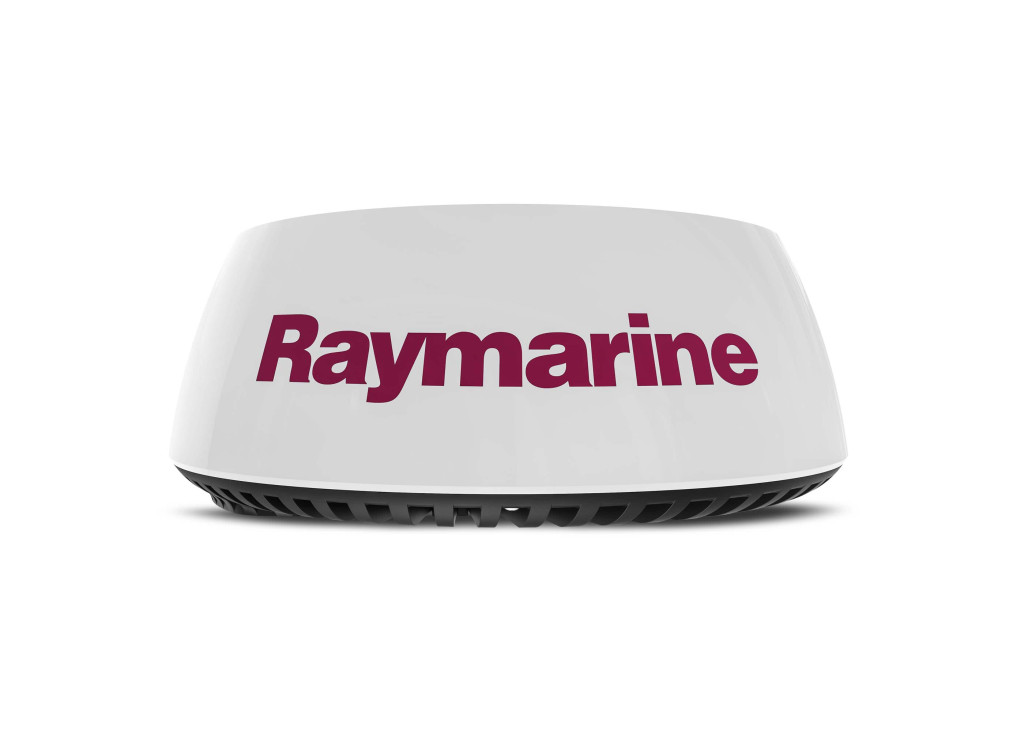

Raymarine Quantum Q24C 18" Radar with 15m Power and 15m Data Cable

Manufacturer:

RAYMARINE

Manufacturer Article number:

T70266

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

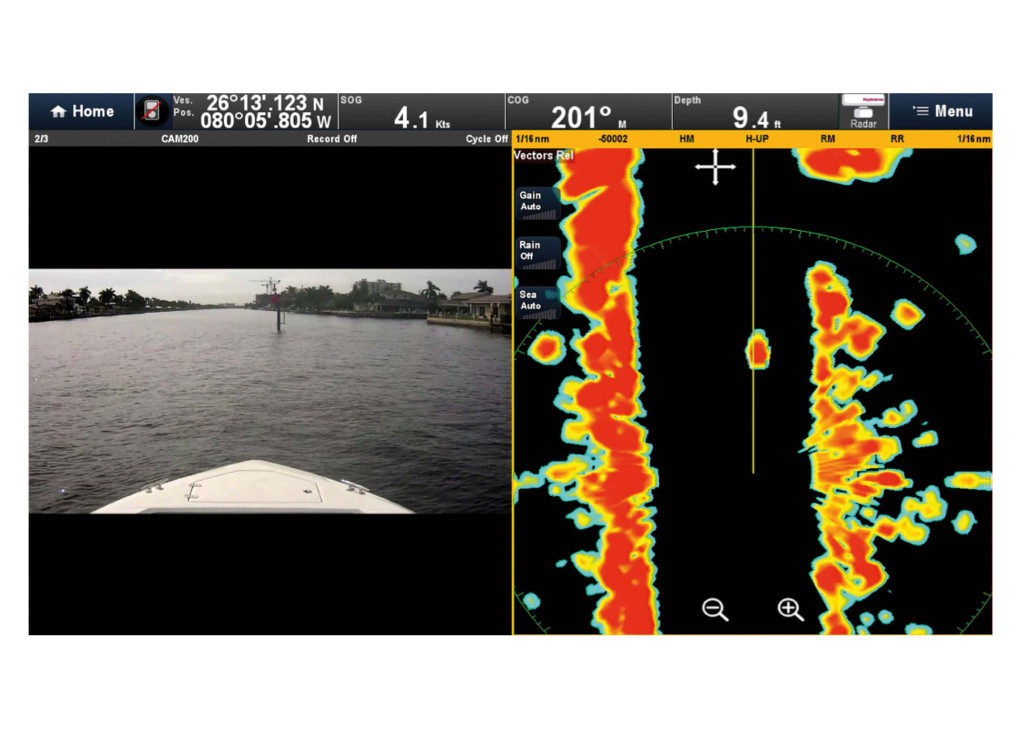

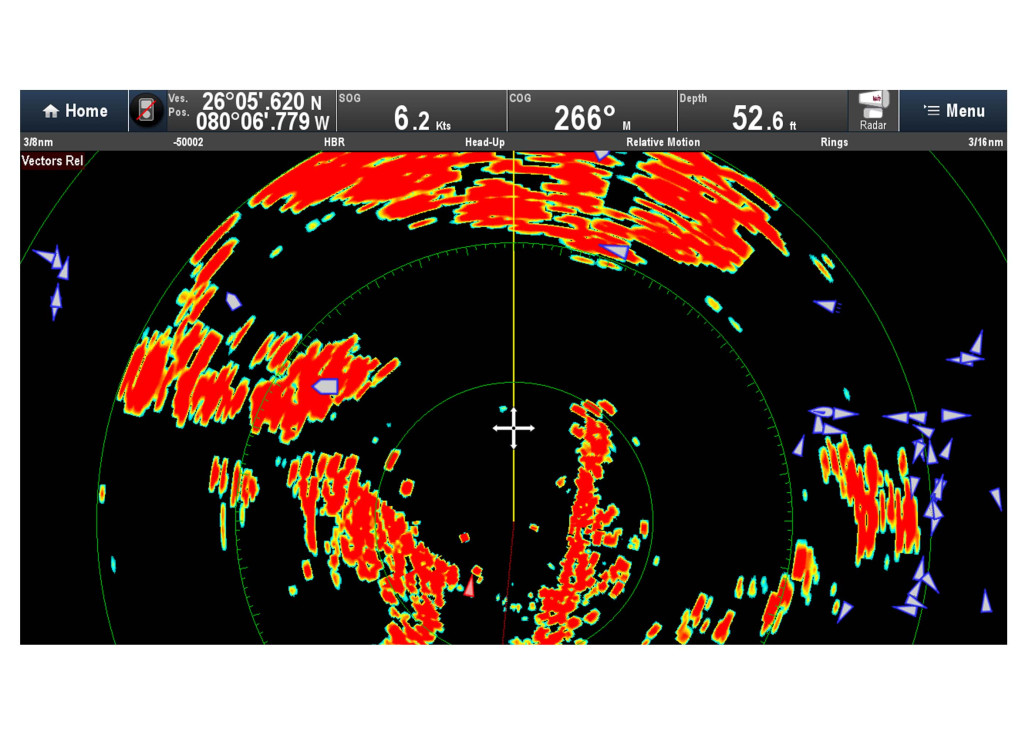

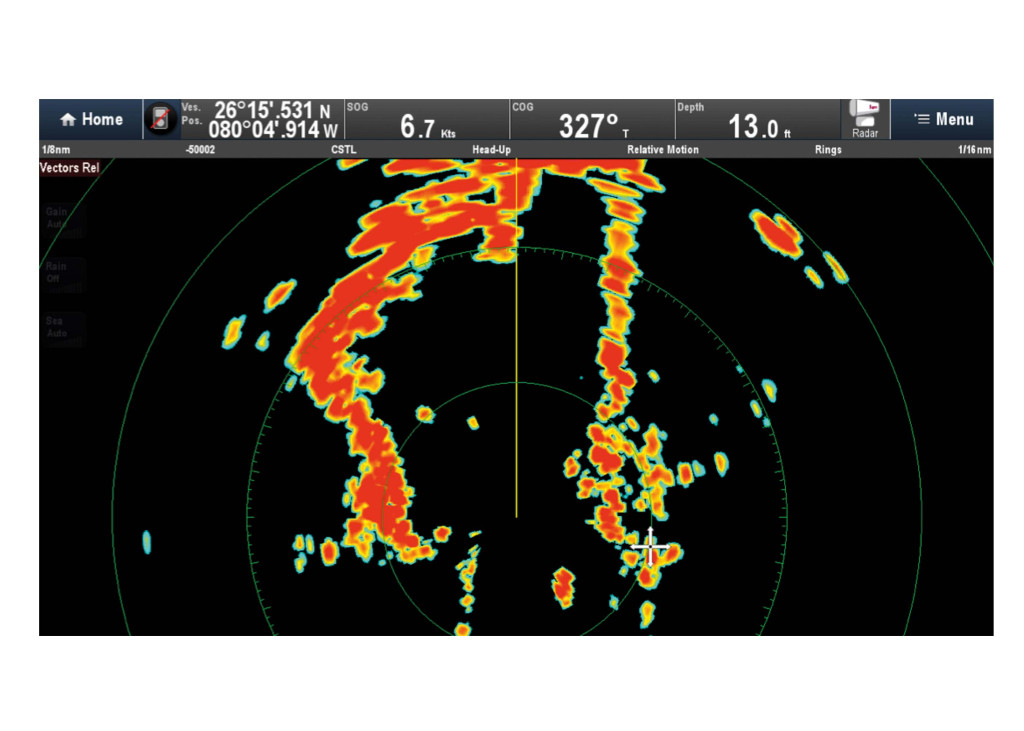

Quantum radar technology brings you exceptional short-range detection and remarkable target detail with a minimal 18' (6m) range. The use of CHIRP Pulse compression technology means that more energy is delivered to targets, ensuring that you get superior imaging even at long distances.

Details

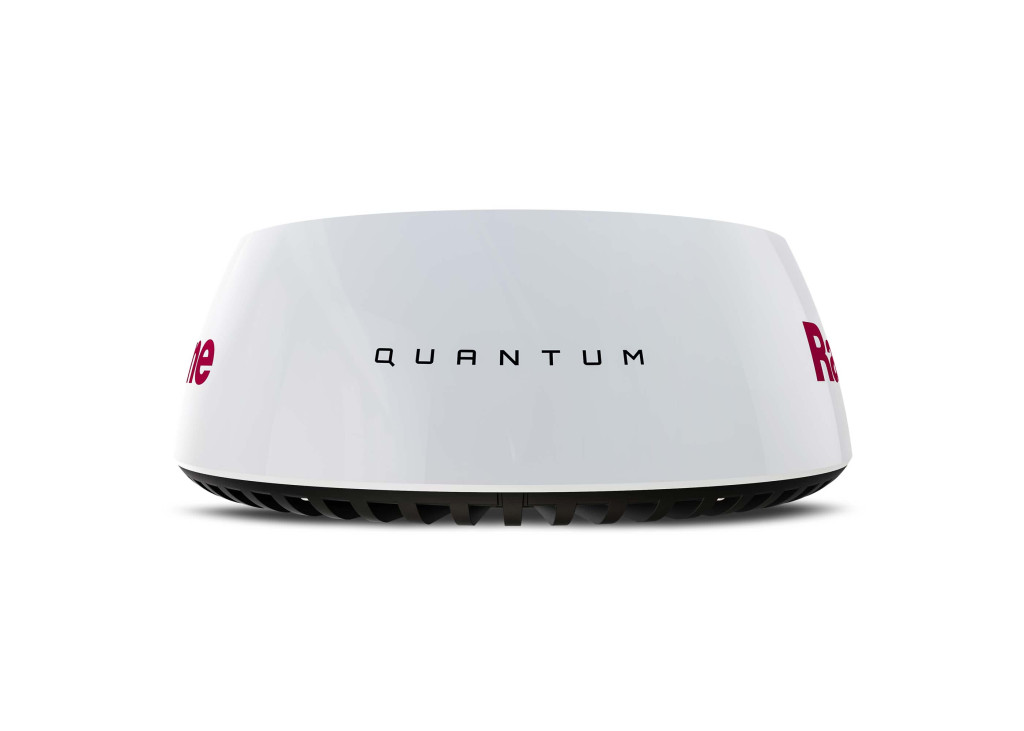

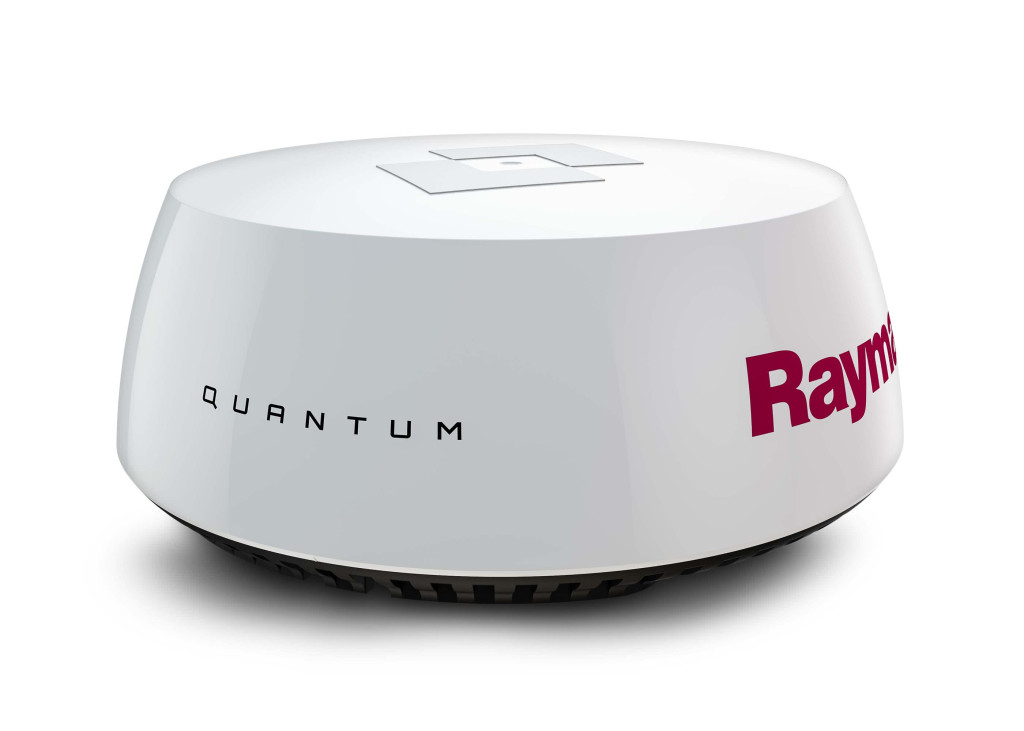

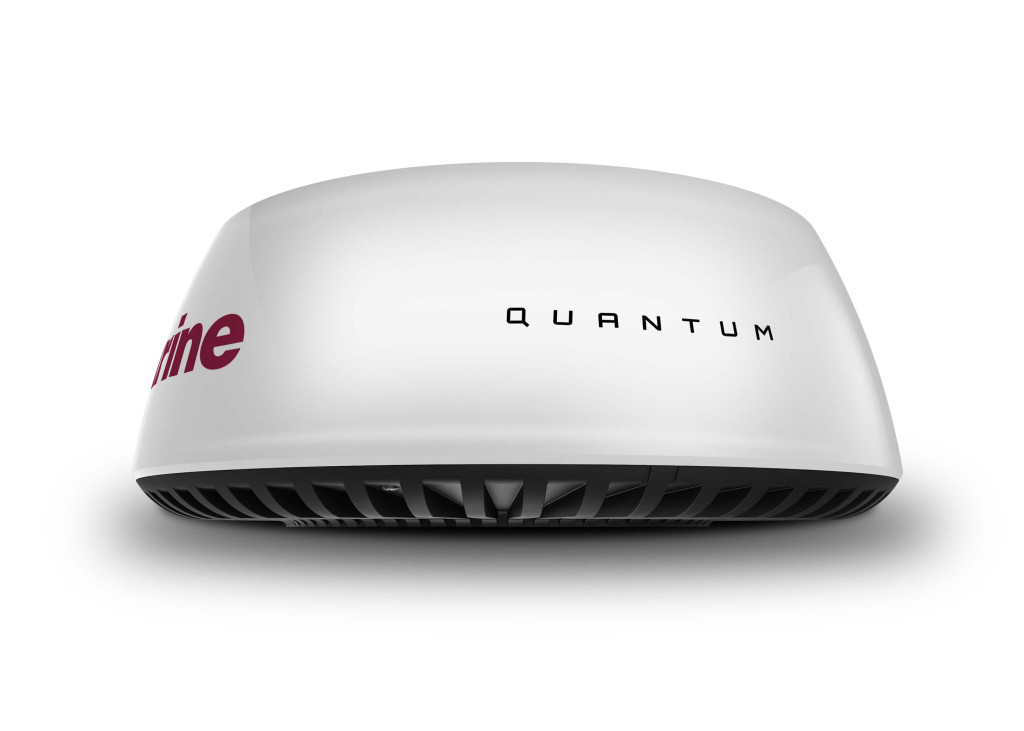

Raymarine Quantum Q24C 18" Radar with 15m Power and 15m Data Cable

Quantum Radar: Superior imaging for all vessels

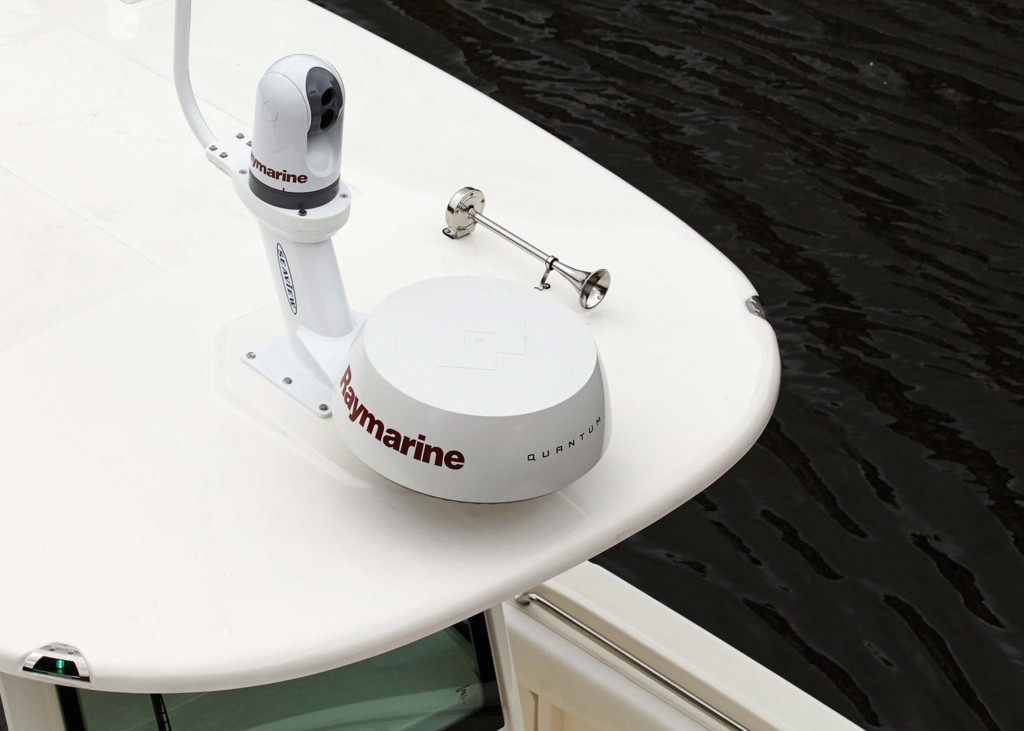

Ideal for a variety of vessels, including sailboats, RIBs, and smaller powerboats, Quantum offers broad utility. Installation is a breeze, and for those upgrading, existing cables can be repurposed with a simple adapter, making Quantum a convenient and versatile choice.

What's in the box?

The following parts are supplied with the Quantum radar.

1	Quantum Radome
2	15 m Power cable
3	M8 mounting bolts with spring washers and flat washers x4
4	Documentation

Info

Article number:

RM-T70266

Water resistance rating:

IPX6

Website:

https://www.raymarine.com/en-gb/our-products/marin...

Weight:

5.6 kg/pcs

Technical specification

General Specifications
Dimensions: Diameter \| Height	541.0 mm \| 209.5 mm
Weight	5.6 kg
Supply voltage	Either 12 V dc or 24 V dc nominal
Operating voltage range	Minimum: 10.8 V dc \| Maximum: 31.2 V dc
Power Consumption	Transmit mode (maximum): 17 W \| Standby mode: 7 W \| Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Waterproofing	IPX6
Operating temperature range	-10°C to +55°C
Storage temperature range	-25°C to +70°C
Additional storage conditions	Store upright; do not block vents on underside
Humidity	Up to 95% at 35°C
Maximum wind speed	100 kts
Range scales	1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

Transmitter
Type	X-band solid-state transmitter with pulse compression technology
Transmit frequency	9354 MHz to 9446 MHz
Peak power output	20W
Duplexer	Circulator
Pulse widths (3 dB)	40 ns to 14.7 us
Chirp lengths	400 ns to 22 us
Pulse repetition frequency	920 Hz to 5900 Hz
Chirp bandwidth	Up to 32 MHz
Standby mode	Scanner rotation - OFF \| Scanner transmission - OFF \| Wi-Fi link - ON

Receiver
IF frequency	26 MHz
Noise figure	Less than 4 dB

Antenna
Type	Patch array
Beamwidth (nominal)	Horizontal: 4.9° \| Vertical: 20°
Polarization	Horizontal
Rotation speed	24 rpm nominal

Target Tracking
Target tracking	Tracking of 10 simultaneous Radar targets

Transmitter
Type	X-band solid-state transmitter with pulse compression technology
CHIRP bandwidth	Up to 32 MHz
Standby mode	Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON
Duplexer	Circulator
Transmit frequency	9354 MHz to 9446 MHz
Pulse repitition frequency	920 Hz to 5900 Hz
CHIRP lengths	400 ns to 22 µs
Pulse widths (3 dB)	40 ns to 14.7µs
Peak power output	20 W

Environmental
Humidity	Up to 95% at 35°C
Additional storage conditions	Store upright; do not block vents on underside
Waterproof rating	IPx6
Storage temperature range	-25°C (-13° F) to +70°C (158° F)
Maximum wind speed	100 kts
Operating temperature range	-10°C (14° F) to +55°C (131° F)
Range scales	1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

Target tracking
Target tracking	Tracking of 10 simultaneous Radar targets.

Conformance
Standards (Canada)	RSS238 Iss. 1, Technical Acceptance Certificate
Standards (European Union & EFTA)	Radio Equipment Directive 2014/53/EU, Certificate of Opinion
Standards (Australia/New Zealand)	ACMA Declaration of Conformity, Compliance level 3
Standards (USA)	47CFR FCC Part 2 & Part 80, Certificate of Approval

Antenna
Type	Patch Array
Beamwidth (nominal)	Horizontal: 4.9°, Vertical: 20°
Polarization	Horizontal
Rotation speed	24 rpm nominal

Reciever
Noise figure	Less than 4 dB
IF frequency	26 MHz

Physical
Diameter	541.0 mm (21.3 in)
Weight	5.6 kg (12.35 lbs)
Height	209.5 mm (8.25 in)

Compatibility
Axiom 2 XL - 16", 19", 22" and 24" models	Yes
Axiom 2 Pro - 9", 12" and 16" RVM and -S variants	Yes
Axiom+ - 7", 9" and 12" RV and chartplotter variants	Yes
Element - 7", 9" and 12" HV and -S variants	Yes²
Axiom XL - 16", 19", 22" and 24" models	Yes
Axiom Pro - 9", 12" and 16" RVX and -S variants	Yes
Axiom - 7", 9" and 12" RV and chartplotter variants	Yes
gS-Series - gS95, gS125 and gS165	Yes³
eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165	Yes³
e-Series - e7, e7D, e95, e97, e125, e127, e165	Yes
c-Series - c95, c97, c125, c127	Yes
a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128	Yes
E-Series Widescreen - E90W, E120W, E140W	No
C-Series Widescreen - C90W, C120W, C140W	No
G-Series Classic - GPM400	No
E-Series Classic - E80, E120	No
C-Series Classic - C70, C80, C120	No ¹
Notes	1 - C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued. 2 - Must connect using Wi-Fi. Cabled connection not available with Element. 3 - eS Series and gS Series displays running LightHouse 3 only support a wired connection to Quantum; wireless (Wi-Fi) connection is NOT supported.
