Raymarine Quantum 2 Q24D Doppler 18" Radar with 15m Power Cable and 15m Data Cable

Manufacturer:

RAYMARINE

Manufacturer Article number:

T70417

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

Quantum 2, equipped with Doppler collision avoidance technology, simplifies the identification of potential risks amidst bustling marine traffic. Leveraging sophisticated Doppler processing, Quantum 2 clearly highlights moving radar contacts, applying color coding to clearly show if they are approaching or moving away, enhancing your navigational confidence and safety.

Details

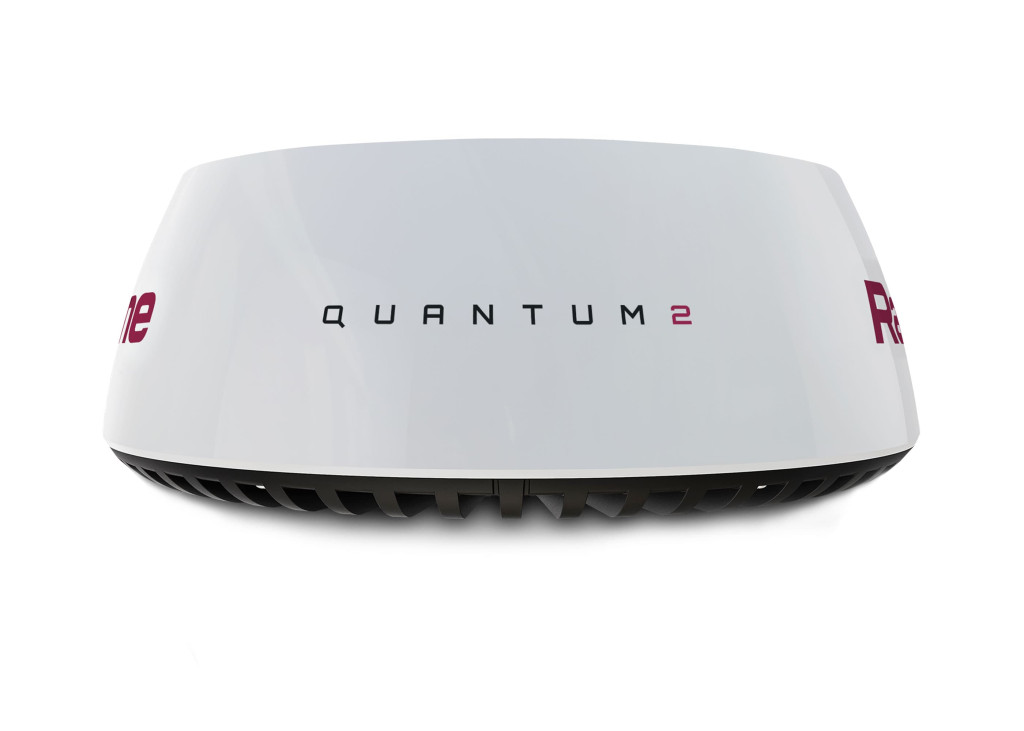

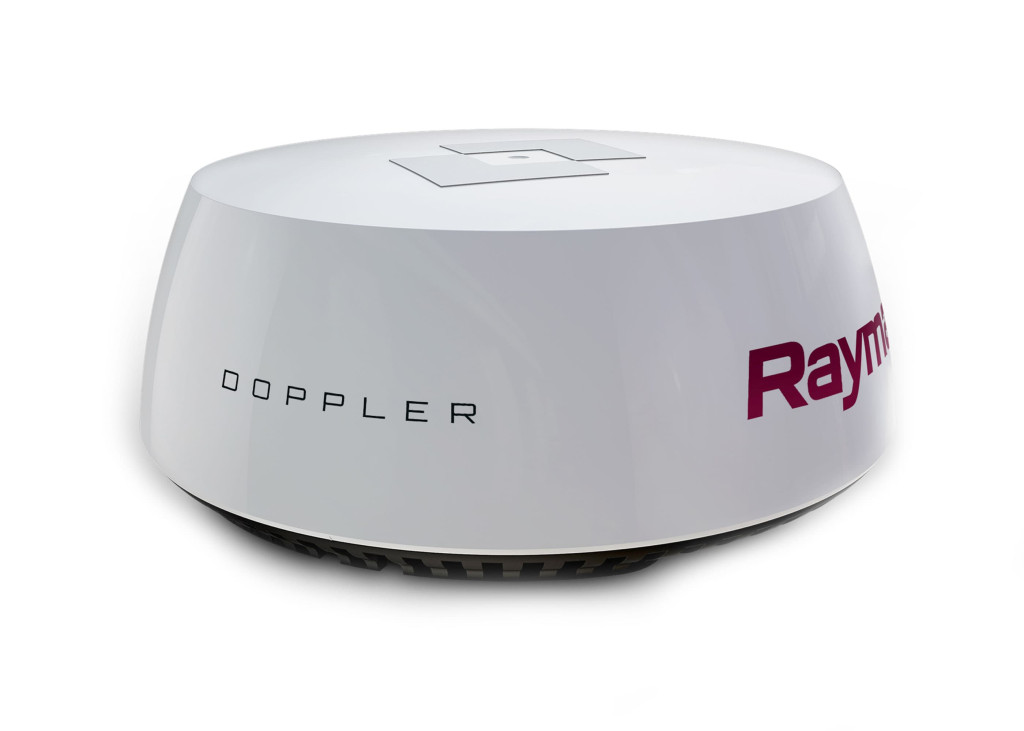

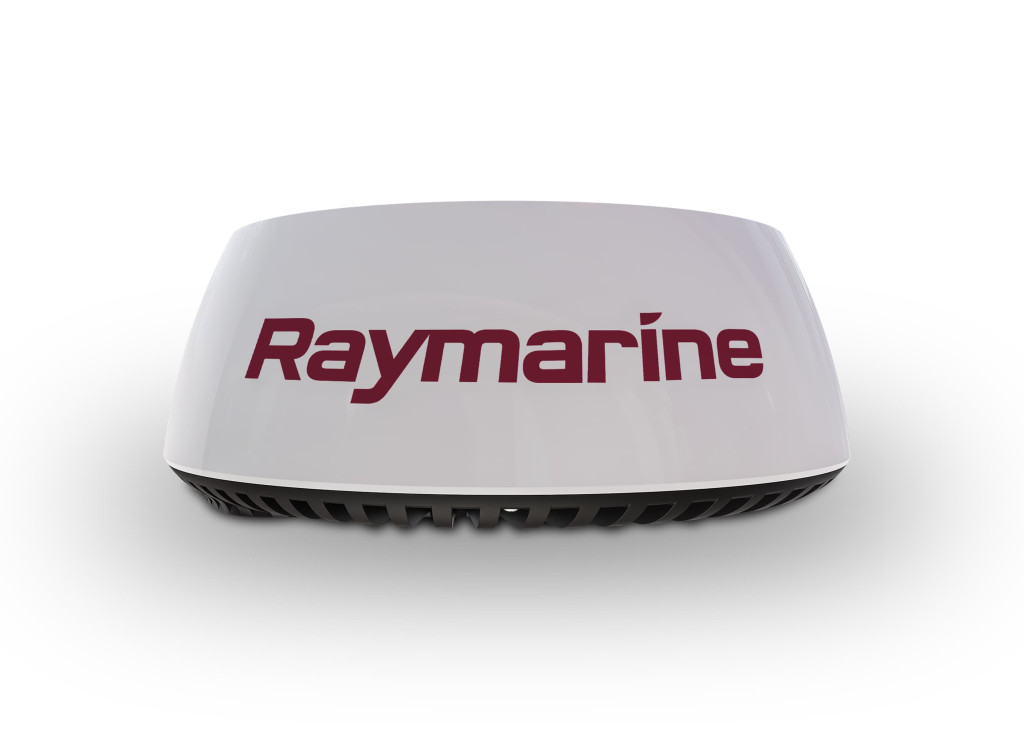

Raymarine Quantum 2 Q24D Doppler 18" Radar

Doppler Collision Avoidance Technology

Ensure a safe and stress-free boating experience, even in busy waters, by keeping unforeseen hazards and novice boaters at a distance.

QUANTUM 2 BLACK - STAY AWARE WITH STYLE

Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.

Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in a premium black housing.

Key Features

The Quantum 2 Doppler radar is an ideal addition for sailboats, RIBs, and smaller powerboats. It is available as a standalone scanner that doesn't require a power or data cable, or with options for 10m and 15m cables. This radar excels in short-range detection and offers enhanced detail of targets, with a minimum range of 18 feet (6m).

Installation is streamlined and quick, and it can be mounted using existing Raymarine scanner points. Once in place, the Quantum 2 powers up instantly, providing immediate situational awareness. Its MARPA mode is an efficient tool for tracking hazardous targets, employing the same technology relied upon by the United States Coast Guard.

What's in the box?

The following parts are supplied with the Quantum 2 radar.

1	Radome
2	Power cable 15 m (32.8 ft)
3	Fixing bolts with spring washers and flat washers (M8) x 4
4	Documentation

Info

Article number:

RM-T70417

Water resistance rating:

IPX6

Website:

https://www.raymarine.com/en-au/our-products/marin...

Weight:

5.6 kg/pcs

Technical specification

General Specifications
Dimensions: Diameter \| Height	541.0 mm \| 209.5 mm
Weight	5.6 kg
Supply voltage	Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc \| Maximum: 31.2 V dc
Operating voltage range	Minimum: 10.8 V dc \| Maximum: 31.2 V dc
Power Consumption	Transmit mode (maximum): 17 W \| Standby mode: 7 W \| Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Waterproofing	IPX6
Operating temperature range	-10°C to +55°C
Storage temperature range	-25°C to +70°C
Additional storage conditions	Store upright; do not block vents on underside
Humidity	Up to 95% at 35°C
Maximum wind speed	100 kts

Transmitter
Type	X-band solid-state transmitter with pulse compression technology
Transmit frequency	9354 MHz to 9446 MHz
Peak power output	20W
Duplexer	Circulator
Pulse widths (3 dB)	40 ns to 14.7 us
Chirp lengths	400 ns to 22 us
Pulse repetition frequency	920 Hz to 5900 Hz
Chirp bandwidth	Up to 32 MHz
Standby mode	Scanner rotation - OFF \| Scanner transmission - OFF \| Wi-Fi link - ON

Antenna
Type	Patch array
Beamwidth (nominal)	Horizontal: 4.9° \| Vertical: 20°
Polarization	Horizontal
Rotation speed	24 rpm nominal

Receiver
IF frequency	26 MHz
Noise figure	Less than 4 dB

Doppler
Target Tracking	Tracking of 25 simultaneous MARPA and / or ARPA targets
Target Filtering	True Motion mode identifies only those objects that are moving relative to the vessel

Radar
Transmitter type	X-band solid-state transmitter with pulse compression technology
Target tracking	Track up to 25 simultaneous Radar targets
Standby mode	Rotation: OFF, Transmission: OFF, Wi-Fi: ON
Antenna type	Patch Array
Noise	Less than 4 dB
Beamwidth (nominal)	Horizontal: 4.9°, Vertical: 20°
Polarization	Horizontal
Duplexer	Circulator
Transmit frequency	9354 MHz to 9446 MHz
Pulse repetition frequency	920 Hz to 5900 Hz
CHIRP lengths	400 ns to 22 µs
Pulse widths (3 dB)	40 ns to 14.7µs
IF frequency	26 MHz
Rotation speed	24 RPM
Peak power output	20 W

Conformance
Standards	USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3

Environmental
Relative humidity	Up to 95% @ 35°C (95°F)
Additional storage conditions	Store upright; do not block vents on underside
Waterproof rating	IPx6
Storage temperature	-25°C to +70°C (-13°F to 158°F)
Maximum wind speed	100 knots
Operating temperature	-10°C to +55°C (14°F to 131°F)

Physical
Dimensions	Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)
Weight	5.6 kg (12.35 lbs)

Compatibility
Axiom 2 XL - 16", 19", 22" and 24" models	Yes
Axiom 2 Pro - 9", 12" and 16" RVM and -S variants	Yes
Axiom+ - 7", 9" and 12" RV and chartplotter variants	Yes
Element - 7", 9" and 12" HV and -S variants	Yes²
Axiom XL - 16", 19", 22" and 24" models	Yes
Axiom Pro - 9", 12" and 16" RVX and -S variants	Yes
Axiom - 7", 9" and 12" RV and chartplotter variants	Yes
gS-Series - gS95, gS125 and gS165	Yes³
eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165	Yes³
e-Series - e7, e7D, e95, e97, e125, e127, e165	No
c-Series - c95, c97, c125, c127	No
a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128	No
E-Series Widescreen - E90W, E120W, E140W	No
C-Series Widescreen - C90W, C120W, C140W	No
G-Series Classic - GPM400	No
E-Series Classic - E80, E120	No
C-Series Classic - C70, C80, C120	No ¹
Notes	1 - C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued. 2 - Doppler mode is not available when connected to an Element series display 3 - eS Series and gS Series displays running LightHouse 3 only support a wired connection to Quantum; wireless (Wi-Fi) connection is NOT supported.
