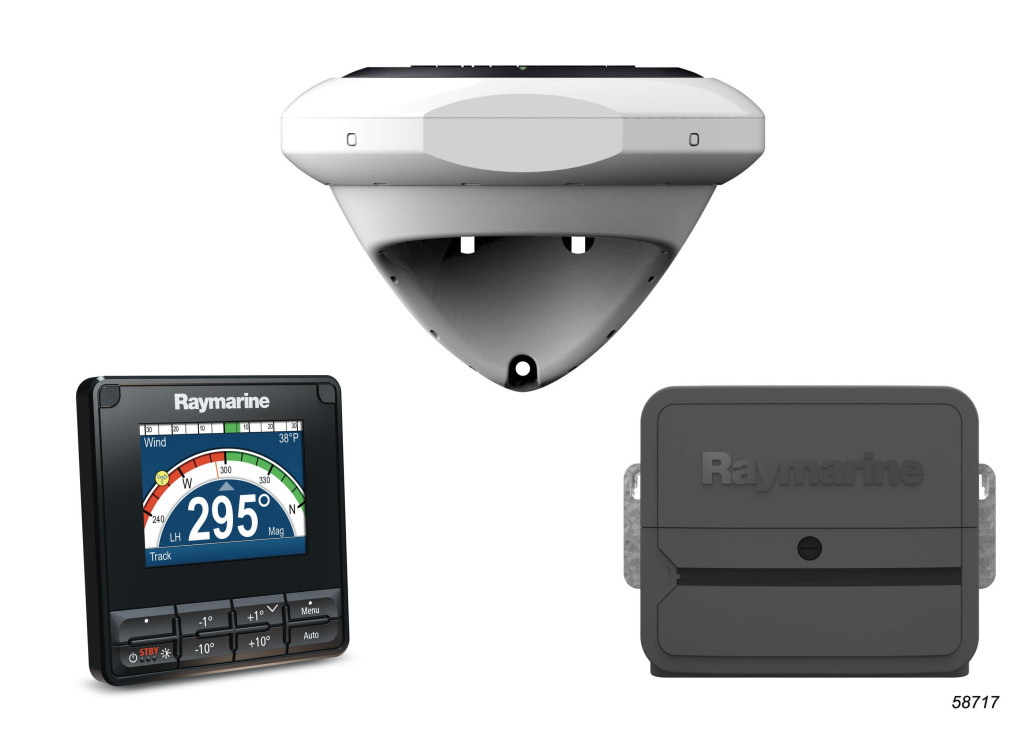

Raymarine Evolution Autopilot with p70s control head & ACU-200, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 1 drives)

Csomagajánlatok

• Details
• Info
• Technical specification

Details

Raymarine EV-200 Sail Pilot

Autopilot for Mechanically Steered Sailboats

The EV-200 Sail Pilot is a complete autopilot solution for mid-sized sailboats with mechanical steering.

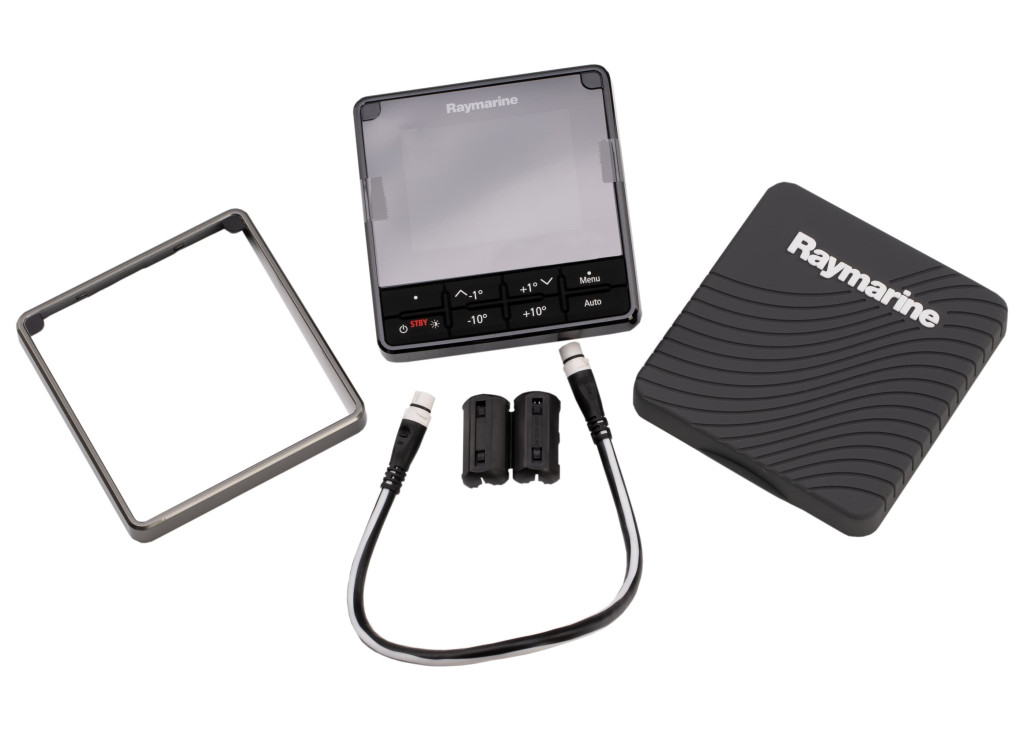

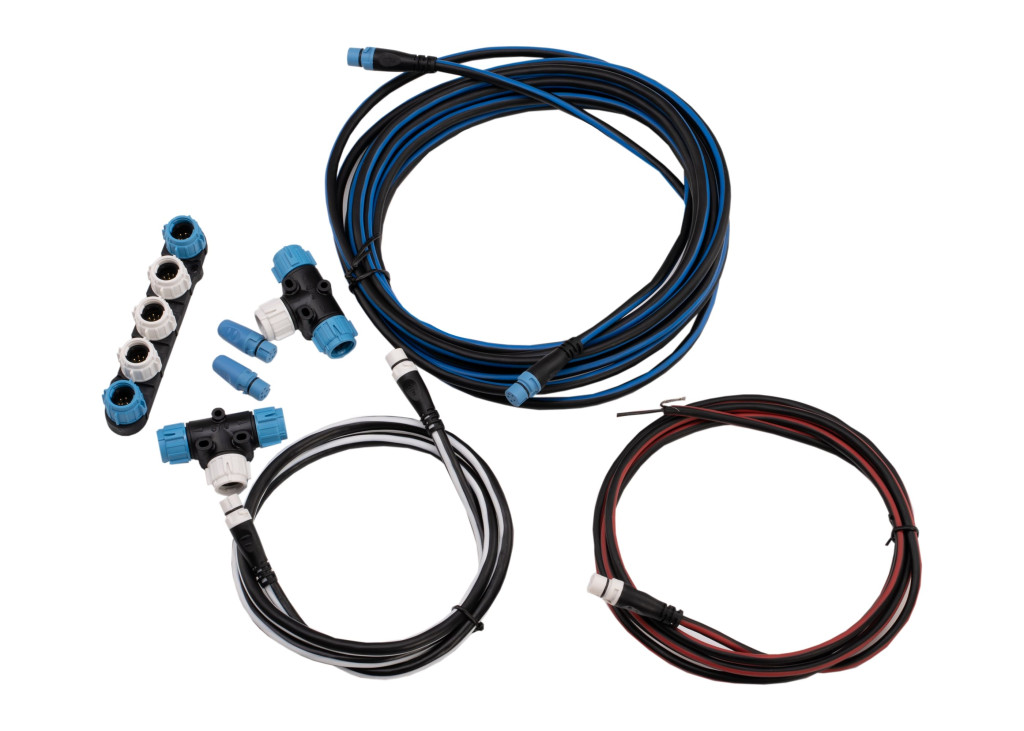

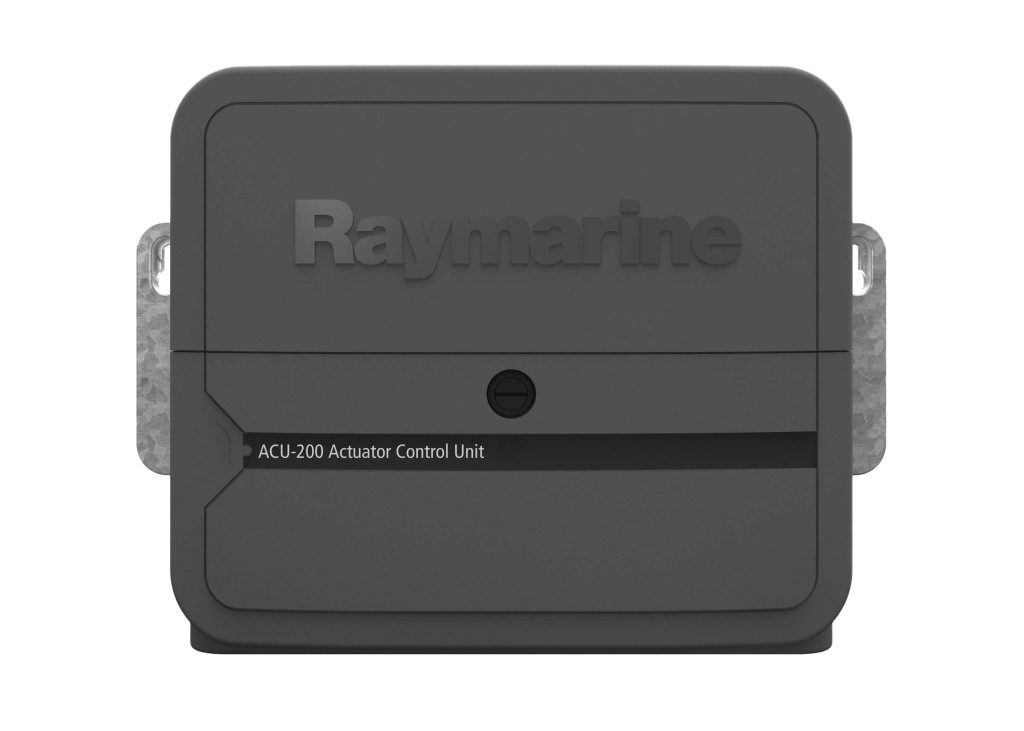

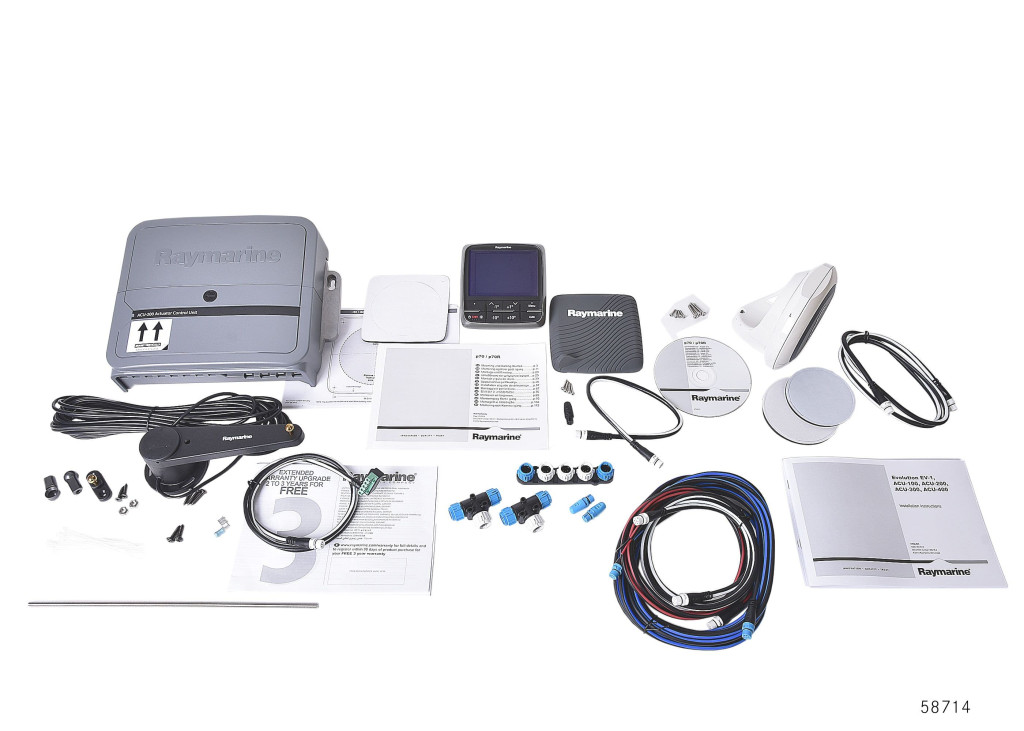

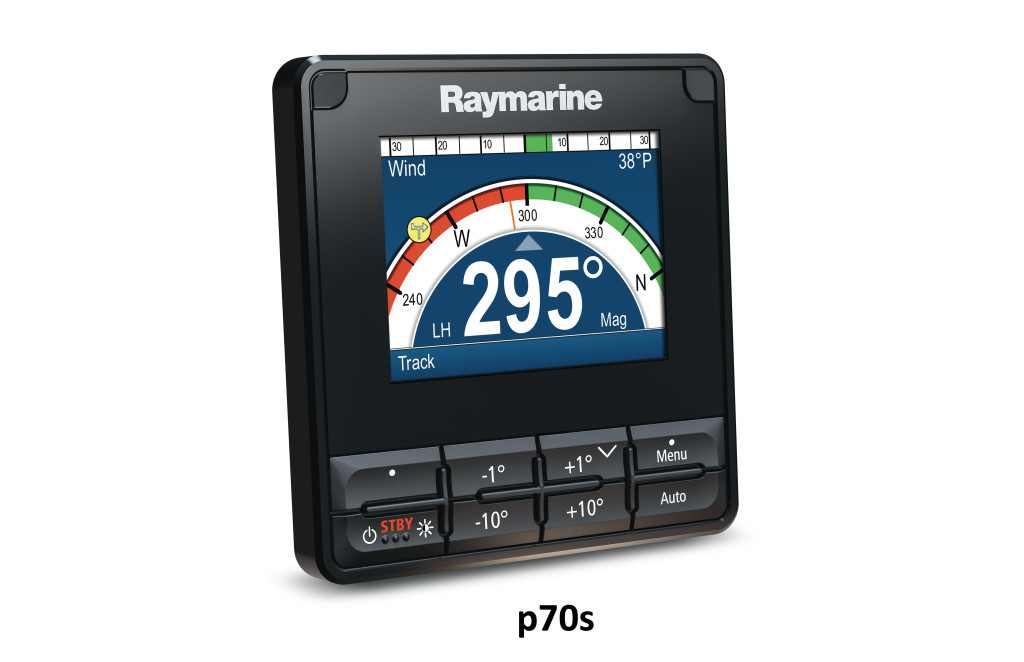

The Sail Pilot kit includes the p70s color, pushbutton autopilot controller, EV-1 sensor core, ACU-200 actuator control unit, a Type 1 mechanical linear drive and an Evolution cabling kit.

The Type 1, 12-Volt mechanical linear drive works on boats with a maximum displacement of 11,000 kg (24,000 lbs.)

For boaters looking to upgrade an older autopilot system, we also offer an EV-200 Sail Pilot bundle without a drive unit. Upgrade to the latest Evolution autopilot technology while utilizing your existing Type 1 mechanical linear drive system.



EV-200 Sail Pilot Key Features

• Suitable for mechanically steered sailboats up to 11,000 kg (24,000 lbs.) displacement
• Powerful and quiet below-decks drive system
• SeaTalk^NG/NMEA2000 for networking with sailing instruments and chartplotters
• Requires no complicated setup or autopilot calibration.

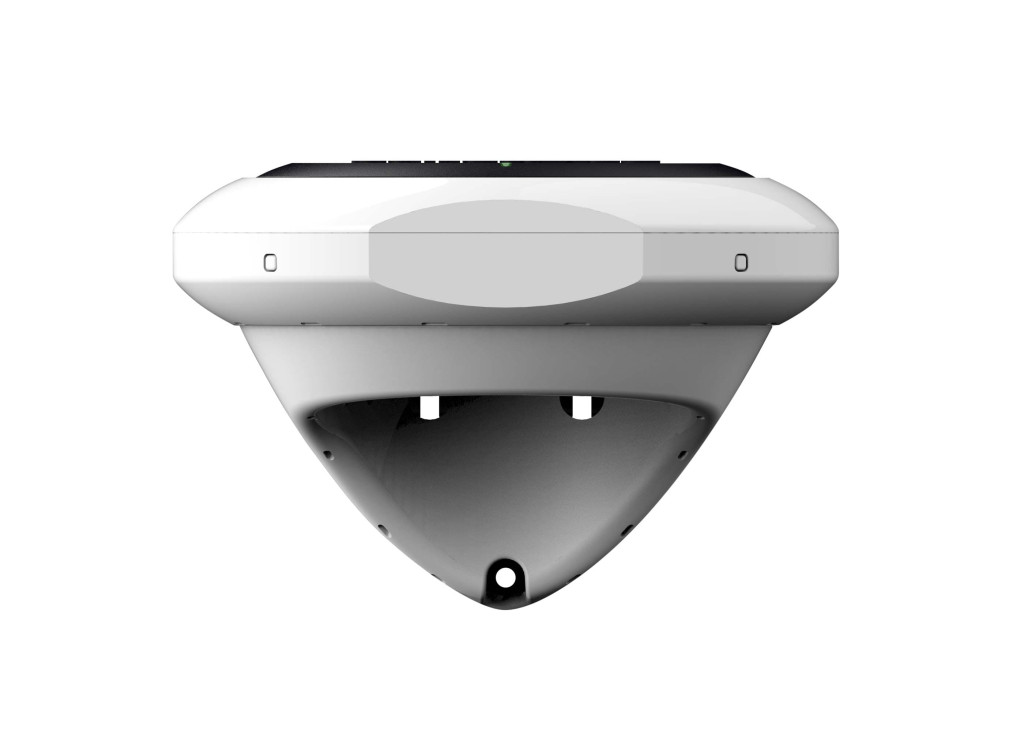

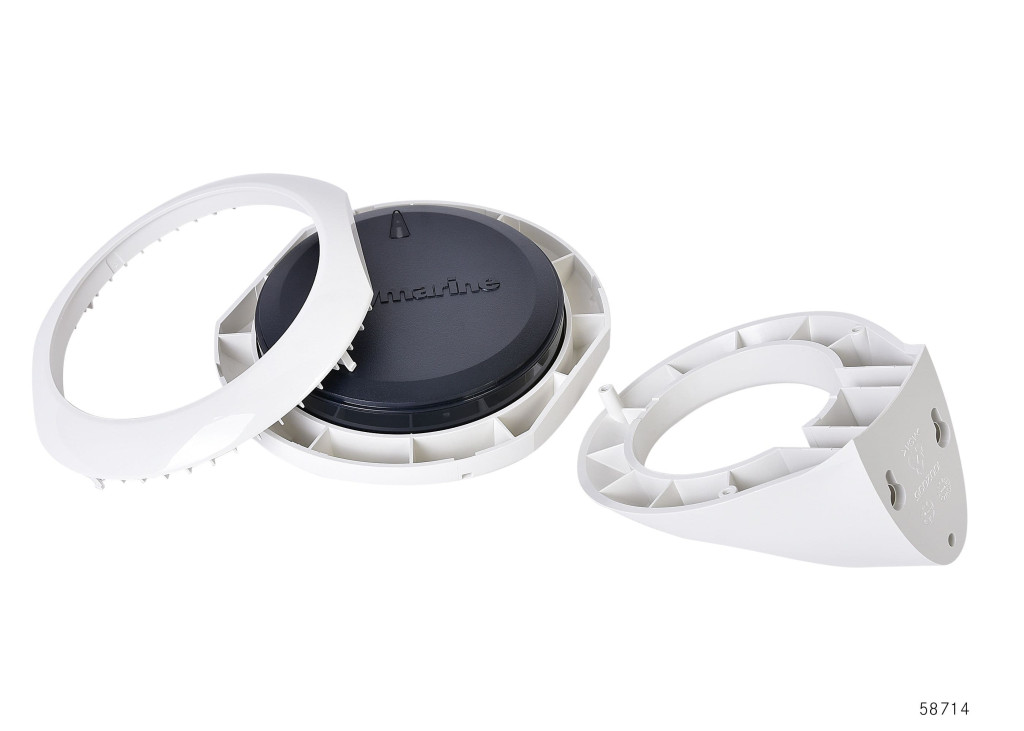

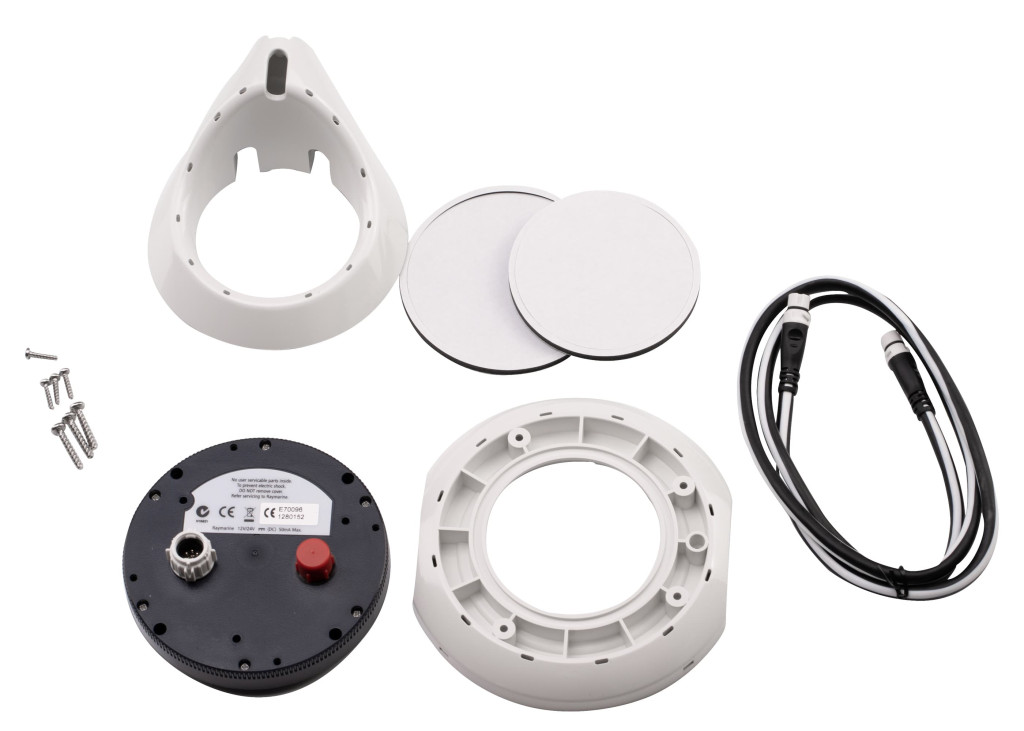

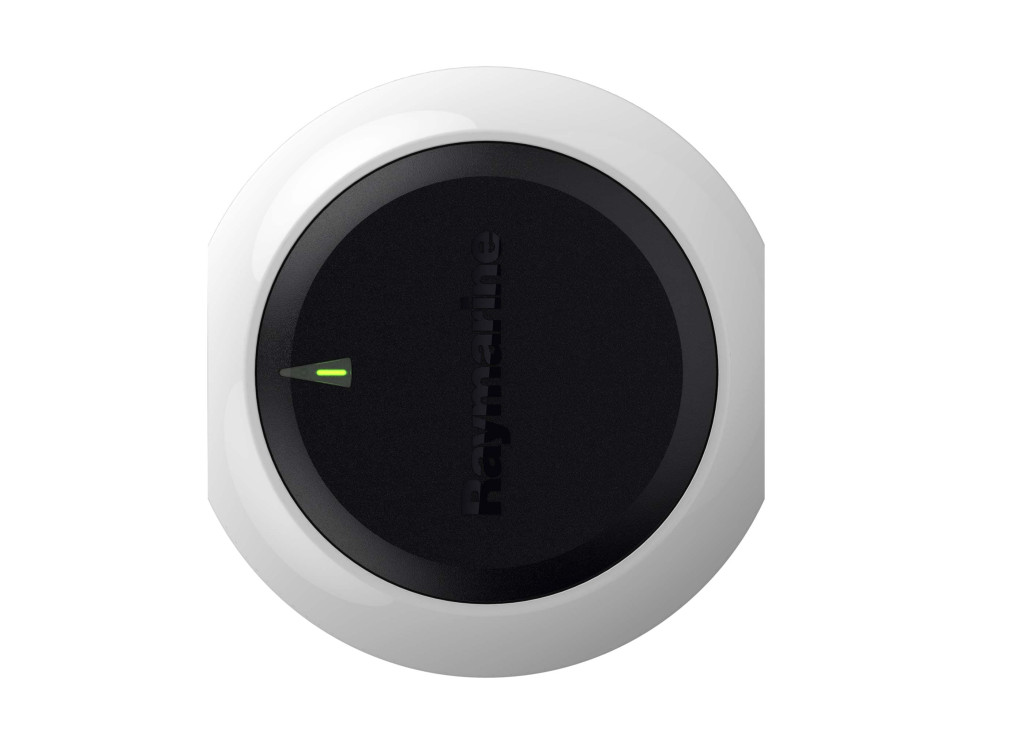

• Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics



What's in the box?



1	ACU unit
2	Documentation
3	Screws (pan head type)
4	SeaTalkng spur to bare wires cable 1 m (3.3 ft)

Info

Article number:

RM-T70155

Website:

https://www.raymarine.com/en-gb/our-products/boat-...

Technical specification

Output
Drive clutch output	Up to 2.0 A continuous, selectable between 12 / 24 V
Drive current output	Maximum continuous 15 A at supply voltage

Conformance
Standards	Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Physical
Dimensions	Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)
Weight	2.2 kg (4.84 lbs)

Power
Power consumption (standby) - main power supply	300 mA (12 / 24 V)
Power output to SeaTalkng bus	3 A @ 12 V (fuse protected at 3 A)
Power consumption (standby) - SeaTalkng bus	20 mA (12 V)
Nominal supply voltage	12 / 24 V dc
Operating voltage range	10.8 V dc to 31.2 V dc
LEN (NMEA 2000 Load Equivalency Number)	1

Environmental
Relative humidity	Max. 93%
Waterproof rating	Drip resistant
Storage temperature	-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature	-20 °C to +55 °C (-4 °F to 131 °F)
