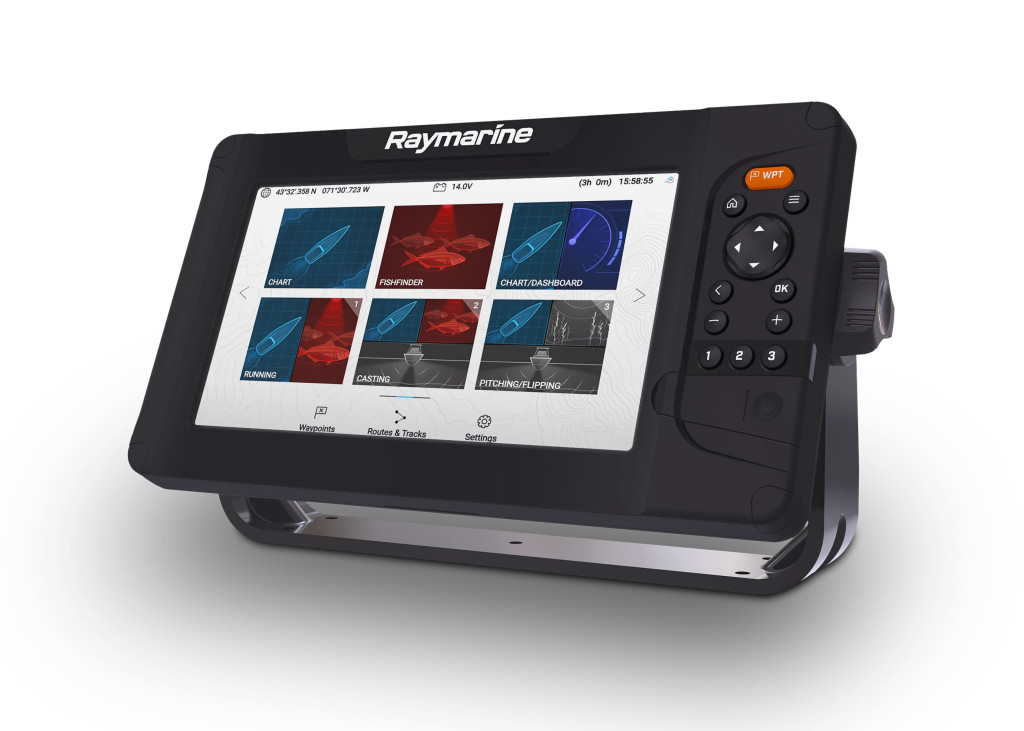

Raymarine Element 9 S - 9" Chartplotter with Wi-Fi & GPS, No Chart & No Transducer

Manufacturer:

RAYMARINE

Manufacturer Article number:

E70533

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

The Element S series of chartplotters gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver nautical charts and navigation data in beautiful color.

Details

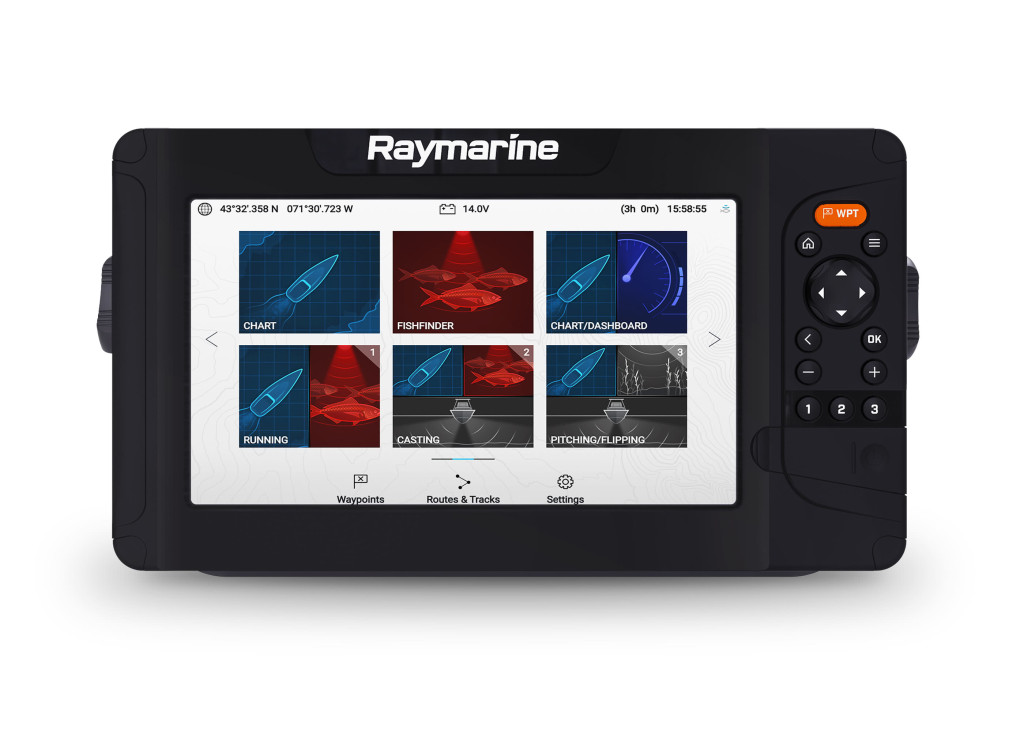

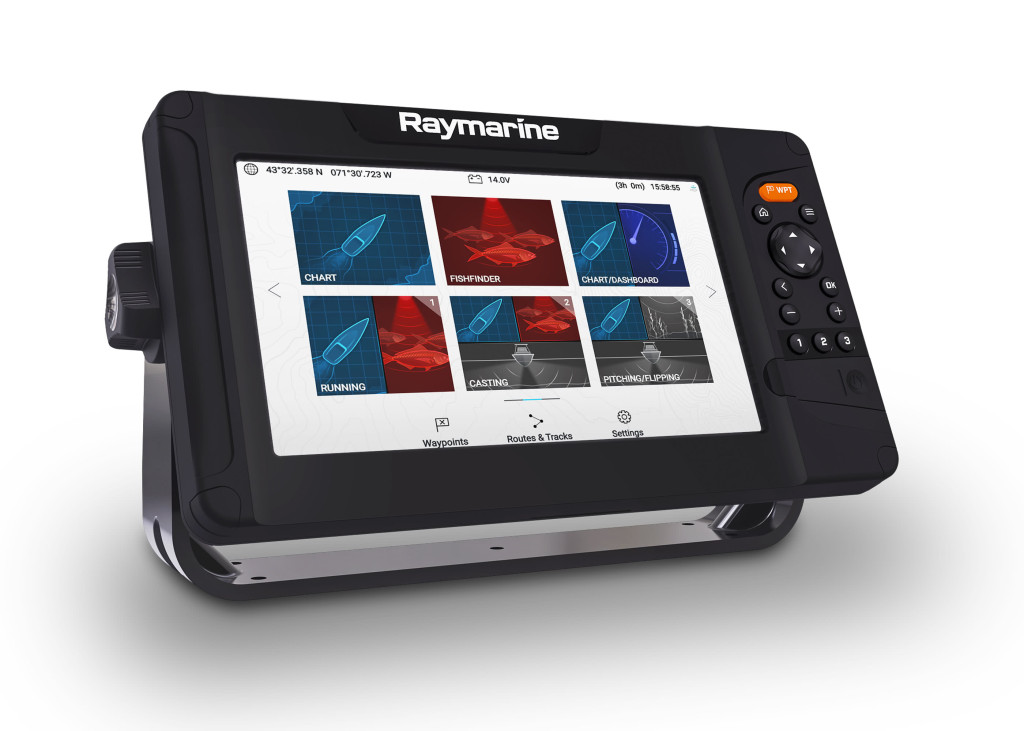

Raymarine Element 9 S - 9" Chartplotter

Navigate with confidence

Navigate With Confidence

sailboat cruising on the water

A TRUSTED CRUISING COMPANION

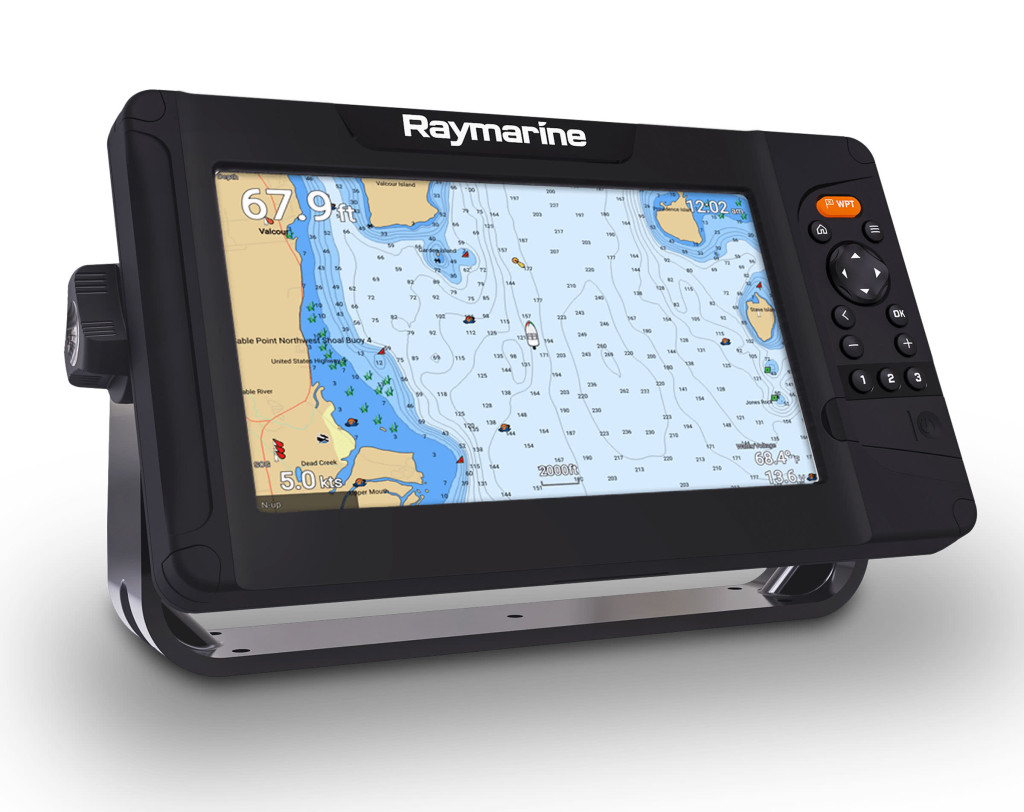

Easy planning and GPS navigation with your favorite charts.

Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
Safely navigate busy waterways with an optional Quantum™ wireless radar
Built-in High CHIRP sonar for depth and bottom contour imaging
Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF

SIMPLE AND STRAIGHT FORWARD

Element’s LightHouse Sport OS Designed for boaters that like to keep things simple.

From sailing to power cruising to fishing, the LightHouse Sport OS is easy to customize to your type of boating
An oversized waypoint key for quick and easy marking of your favorite locations
Three user-programmable quick keys provide access your favorite pages with one button push
Live menus let you customize charts while seeing the navigation display change in real time

E70533 Element 9S Navigation Display

Element S installed on the helm

SUPERIOR PERFORMANCE

Enjoy legendary Raymarine display and navigation technology at an affordable price.

7, 9, and 12 inch super bright display for all weather conditions
A powerful quad-core processor delivers fast chart redraw and responsive performance
Fast and accurate 10hz GPS/GNSS sensor
Rugged design and backed by Raymarine’s three-year warranty (product registration required)

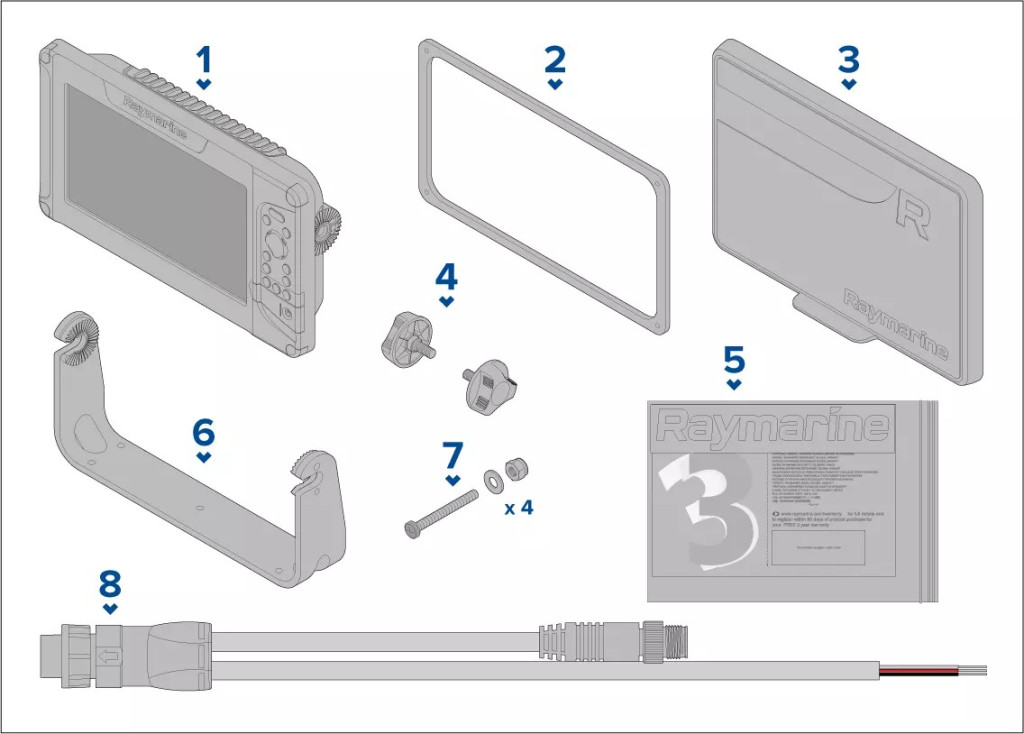

What's in the box?

1	Element display
2	Surface mount gasket
3	Suncover
4	Trunnion knobs (x 2)
5	Documentation
6	Trunnion bracket
7	Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
8	Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Info

Article number:

RM-E70533

Display size (inch):

Display type :

WVGA színes

Water resistance rating:

IPX6 & 7

Brightness (nit):

1500

Display Resolution:

800 x 480

Website:

https://www.raymarine.com/en-gb/our-products/chart...

Weight:

1.3 kg/pcs

Technical specification

Physical
Dimensions (Trunnion mount)	Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in) Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)
Dimensions (surface mount)	Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in) Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)
Weight (display only)	Element 7: 1.0 Kg (2.2lbs) Element 9: 1.3 Kg (2.86lbs) Element 12: 2.0 Kg (4.4lbs)

Physical

Dimensions (Trunnion mount)

Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

Weight (display only)

Element 7: 1.0 Kg (2.2lbs)

Element 9: 1.3 Kg (2.86lbs)

Element 12: 2.0 Kg (4.4lbs)

LCD
Size (diagonal):	Element 7: 7.0" Element 9: 9.0" Element 12: 12.1"
Resolution	Element 7: WVGA 800 x 480 Element 9: WVGA 800 x 480 Element 12: WXGA 1280 x 800
Ratio	Element 7: 5:3 Element 9: 5:3 Element 12: 8:5
Viewing angle (T / B / L / R):	Element 7: 50° / 60° / 70° / 70° Element 9: 50° / 70° / 70° / 70° Element 12: 89° / 89° / 89° / 89°
Type	Element 7: TN (Twisted Nematic) Element 9: TN (Twisted Nematic) Element 12: IPS (In-Plane Switching)
Color depth	24-bit
Maximum Illumination	1500 nits / 1500 cd/m2

Power
Operating voltage range	8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (Approximate @ 12 V dc)	Element 7: 15 Watts Element 9: 20 Watts Element 12: 25 Watts
Nominal supply voltage	12 V dc
Fuse requirements	Inline fuse = 5 A, Thermal breaker = 3 A
LEN (NMEA 2000 Load Equivalency Number)	1 (Based on 9 V dc nominal voltage)

Data connections
SeaTalkng / NMEA 2000	1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi	1 x 802.11/b/g/n

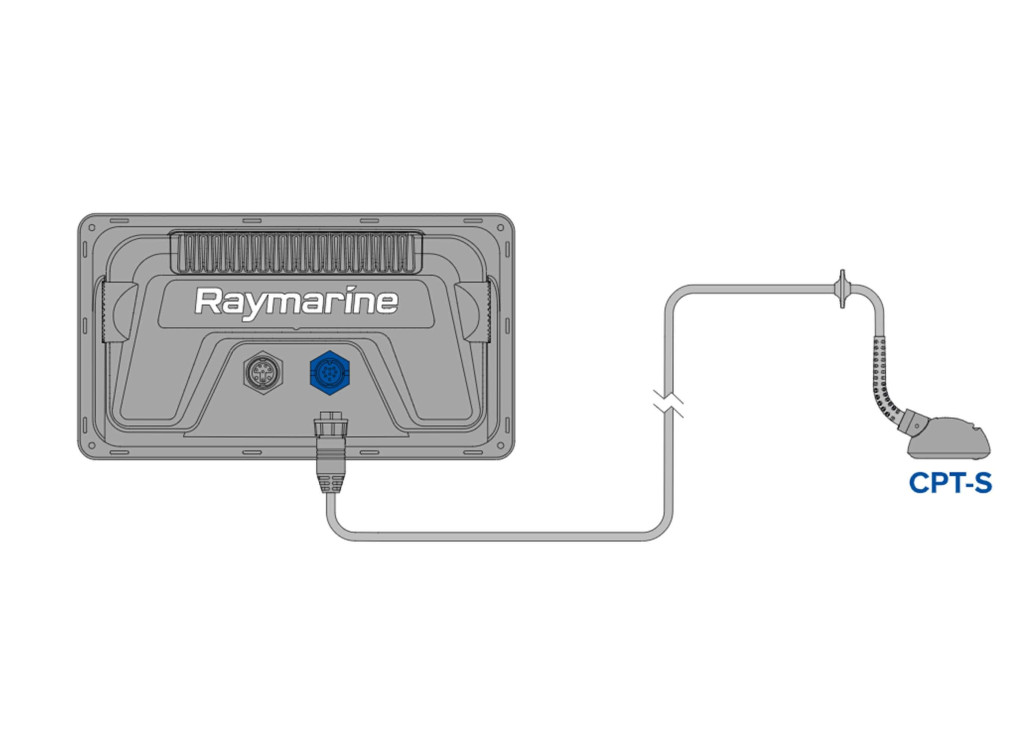

Transducer	1 x 15-pin connector

Storage
External	1 x MicroSDXC card slot

Environmental
Operating temperature range	-25°C (-13°F) to +55°C (+131°F)
Storage temperature range	-30°C (-22°F) to +70°C (+158°F)
Humidity	up to 93% @ 40°C (+104°F)
Waterproof rating	IPx6, IPx7

GPS Receiver
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Channels	Multiple - ability to simultaneously track up to 28 satellites
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, GLONASS, Beidou
SBAS compatibility	EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition	Automatic
Almanac Update	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Cold start	< 2 minutes

Conformance
Standards	EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
