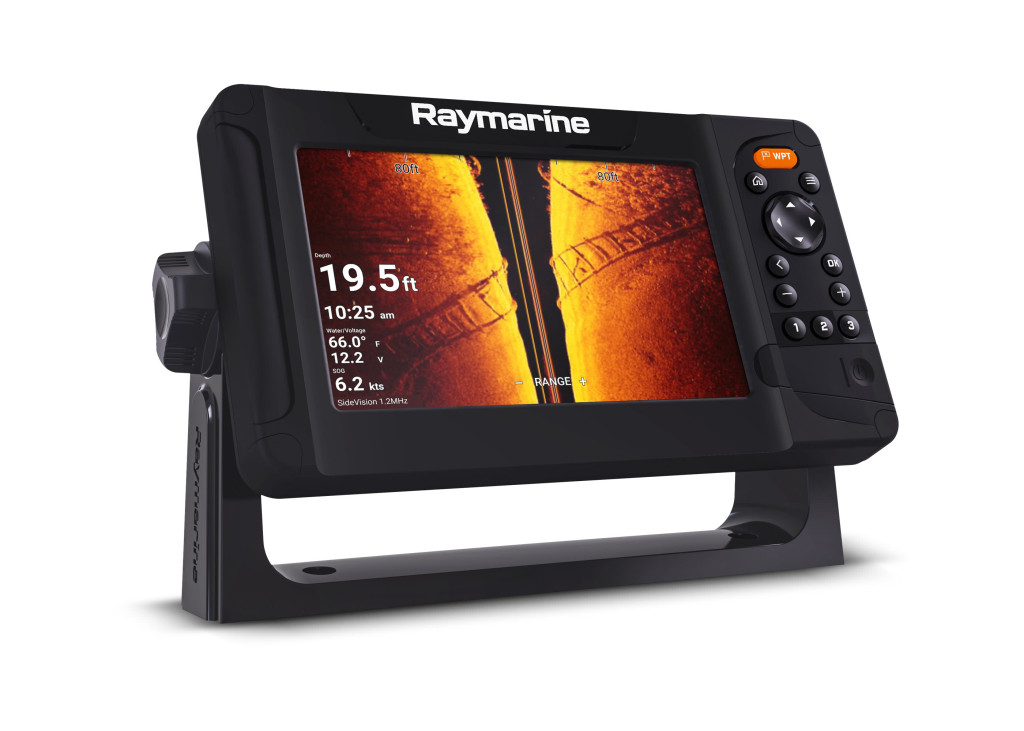

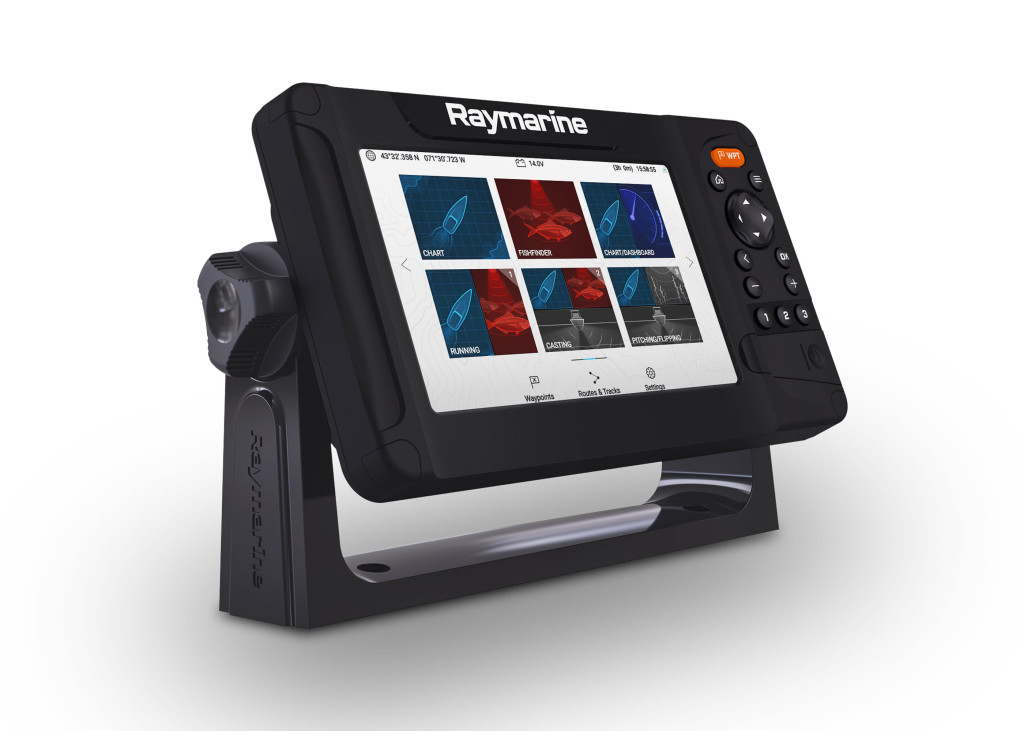

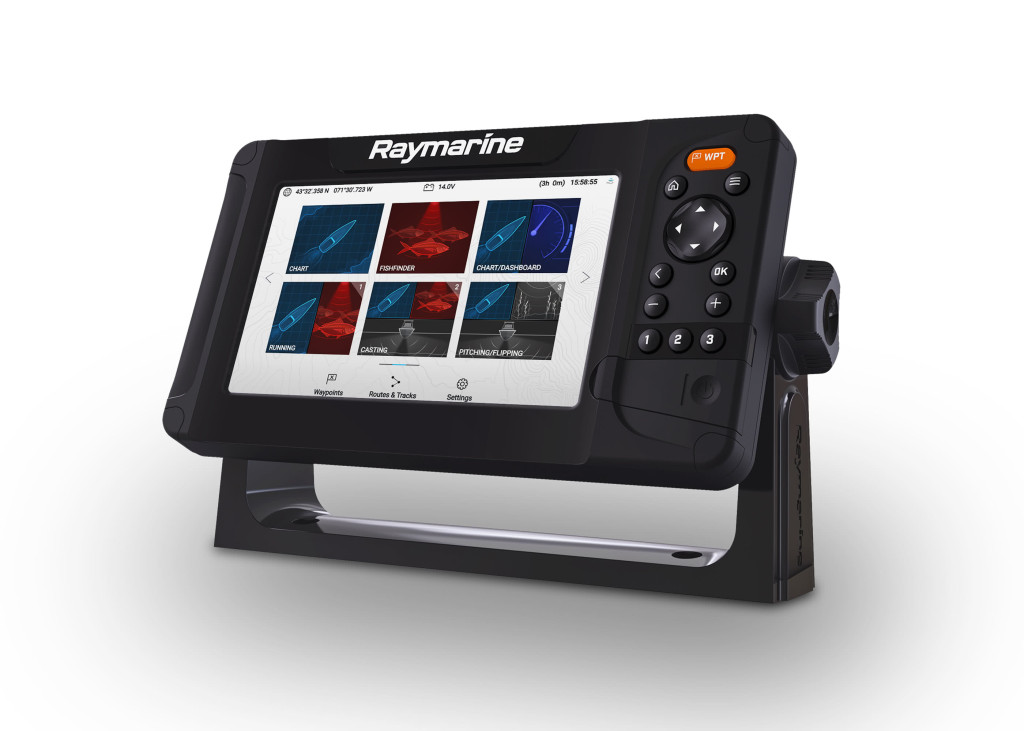

Raymarine Element 7 HV- 7" Chartplotter with CHIRP Sonar, HyperVision, Wi-Fi & GPS, HV-100+ transducer, No Chart

Manufacturer:

RAYMARINE

Manufacturer Article number:

E70644-05

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

The Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Details

Raymarine Element 7 HV- 7" Chartplotter with CHIRP Sonar, HyperVision, Wi-Fi & GPS, HV-100+ transducer, No Chart

Element HV Sonar

Knowledge Is Power

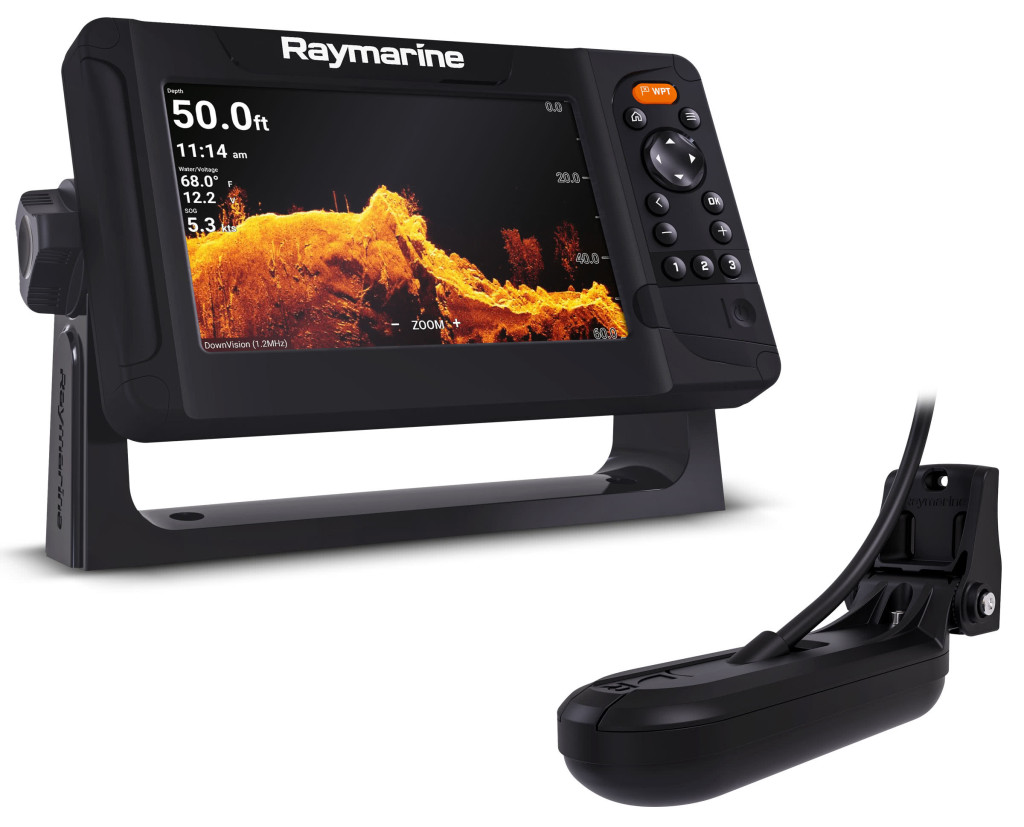

element display featuring hypervision with transducer

Element HV Features

Bright and Rugged - Sunlight viewable displays with integrated GPS/GNSS receiver.

Superior HyperVision™ - 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.

RealVision™ 3D Built-In - Accurately identify the location of ledges, channel beds, and other contour changes.

Fast Quad-Core Processor - For instantaneous chart re-draw and sharp 3D imaging.

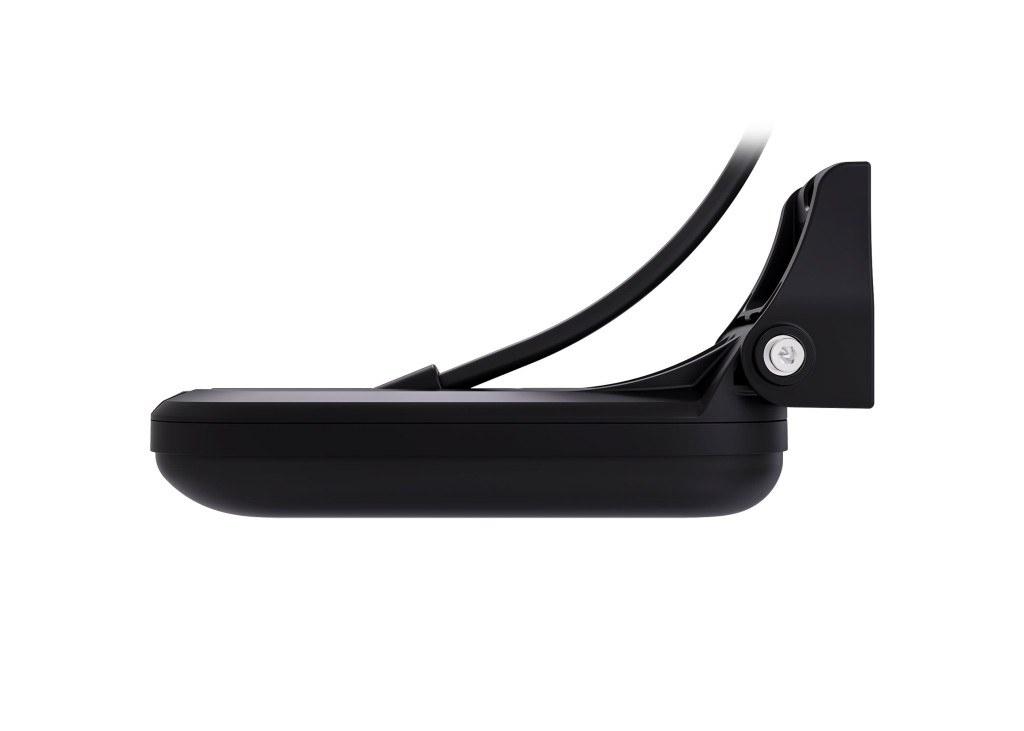

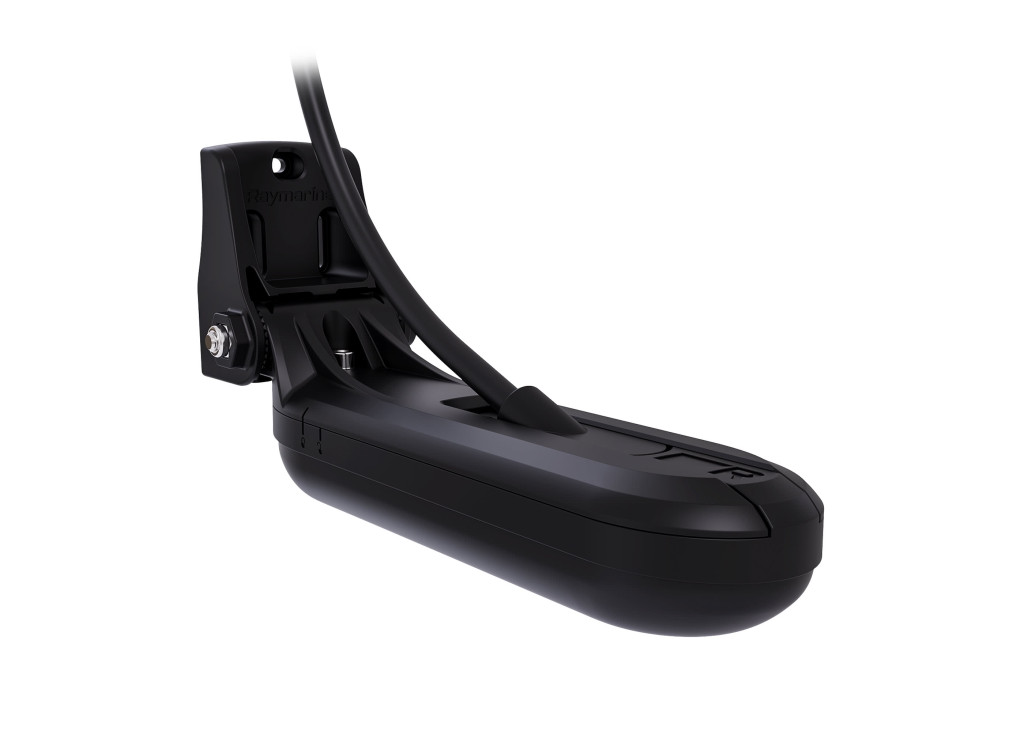

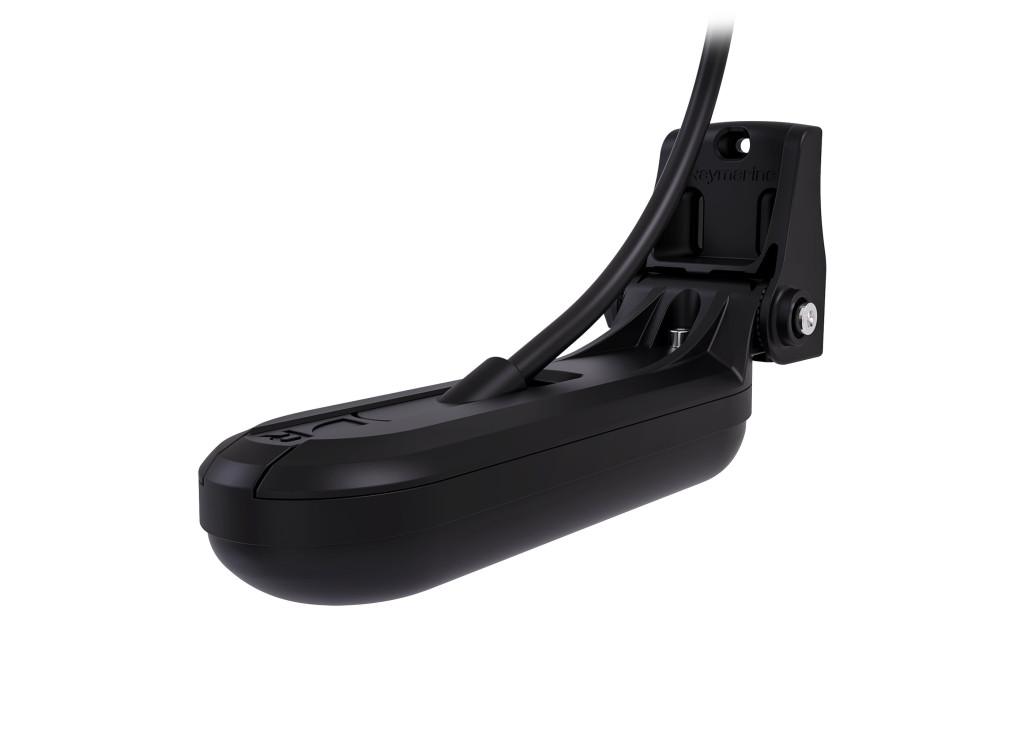

All-in-one Transducer - Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

SMART MAPPING

With support for Raymarine LightHouse Charts with Fishing Hot Spots®, Navionics, and C-MAP charts.

MAKE YOUR OWN MAPS

Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support.

lighthouse charts on element HV chartplotter

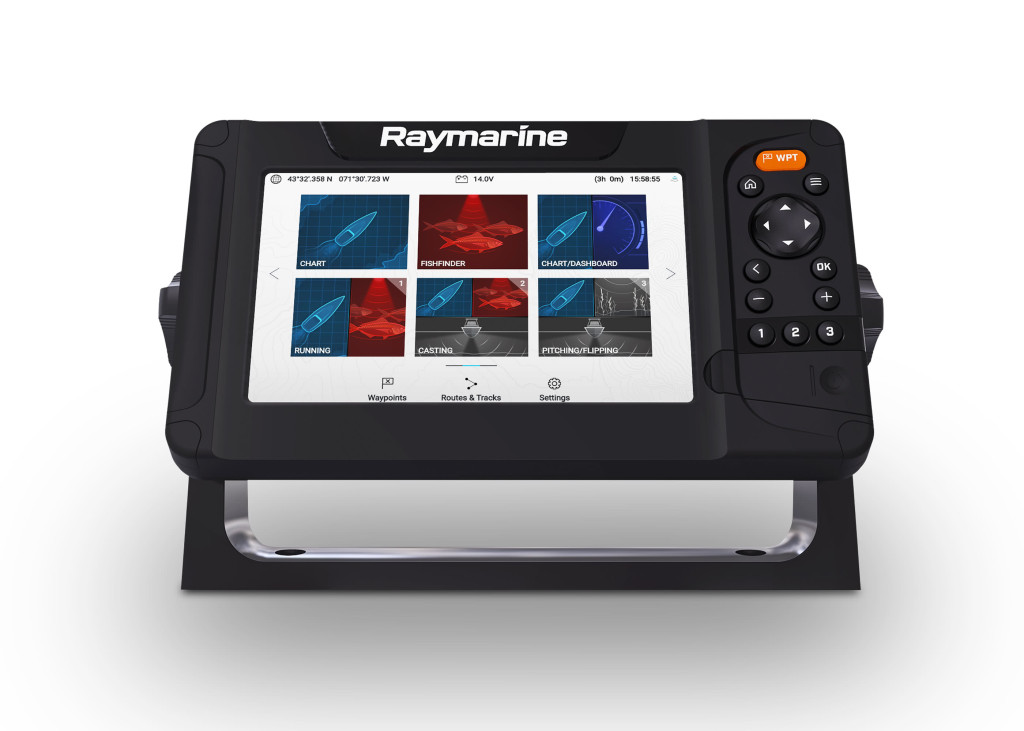

Element HV 12 Front Flat Homescreen

SIMPLE LIGHTHOUSE SPORT OPERATING SYSTEM

Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn.

INTUITIVE CONTROLS

An oversized waypoint key for marking your favorite spots and three user-programmable keys.

Turn Up the Resolution with HyperVision™

HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft

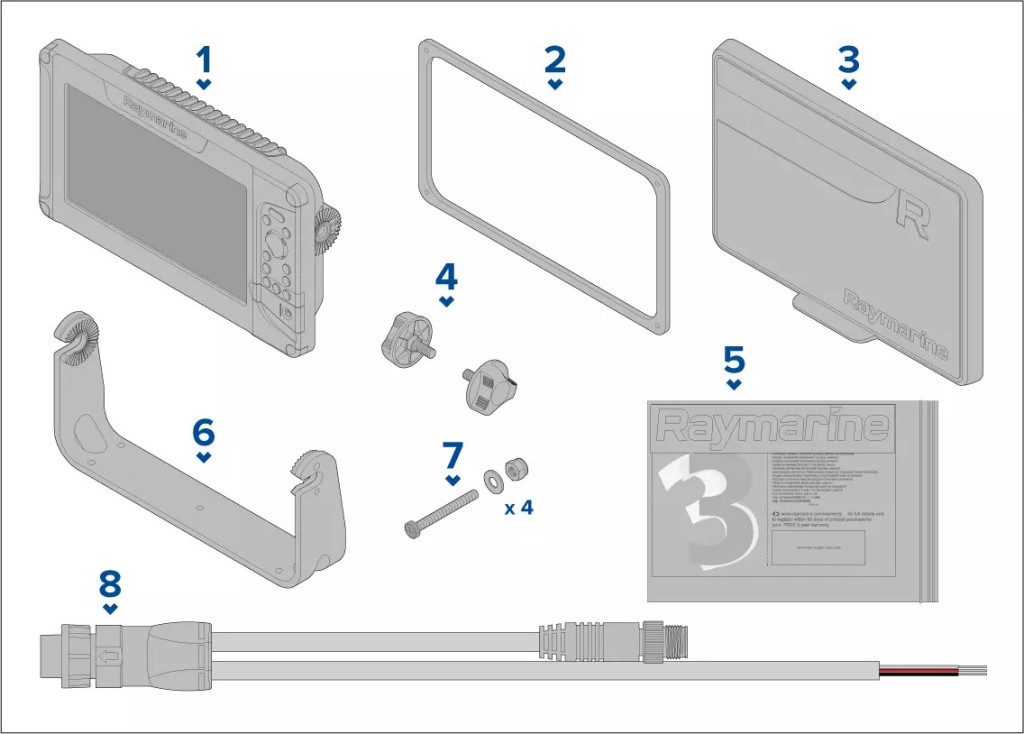

What's in the box?

1	Element display
2	Surface mount gasket
3	Suncover
4	Trunnion knobs (x 2)
5	Documentation
6	Trunnion bracket
7	Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
8	Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Info

Article number:

RM-E70644-05

Display size (inch):

Display type :

WVGA színes

Water resistance rating:

IPX6 & 7

Brightness (nit):

1500

Display Resolution:

800 x 480

Website:

https://www.raymarine.com/en-gb/our-products/chart...

Weight:

1 kg/pcs

Technical specification

Physical
Dimensions (Trunnion mount)	Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in) Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)
Dimensions (surface mount)	Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in) Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)
Weight (display only)	Element 7: 1.0 Kg (2.2lbs) Element 9: 1.3 Kg (2.86lbs) Element 12: 2.0 Kg (4.4lbs)

Physical

Dimensions (Trunnion mount)

Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Dimensions (surface mount)

Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)

Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)

Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

Weight (display only)

Element 7: 1.0 Kg (2.2lbs)

Element 9: 1.3 Kg (2.86lbs)

Element 12: 2.0 Kg (4.4lbs)

LCD
Size (diagonal):	Element 7: 7.0" Element 9: 9.0" Element 12: 12.1"
Resolution	Element 7: WVGA 800 x 480 Element 9: WVGA 800 x 480 Element 12: WXGA 1280 x 800
Ratio	Element 7: 5:3 Element 9: 5:3 Element 12: 8:5
Viewing angle (T / B / L / R):	Element 7: 50° / 60° / 70° / 70° Element 9: 50° / 70° / 70° / 70° Element 12: 89° / 89° / 89° / 89°
Type	Element 7: TN (Twisted Nematic) Element 9: TN (Twisted Nematic) Element 12: IPS (In-Plane Switching)
Color depth	24-bit
Maximum Illumination	1500 nits / 1500 cd/m2

Power
Operating voltage range	8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (Approximate @ 12 V dc)	Element 7: 15 Watts Element 9: 20 Watts Element 12: 25 Watts
Nominal supply voltage	12 V dc
Fuse requirements	Inline fuse = 5 A, Thermal breaker = 3 A
LEN (NMEA 2000 Load Equivalency Number)	1 (Based on 9 V dc nominal voltage)

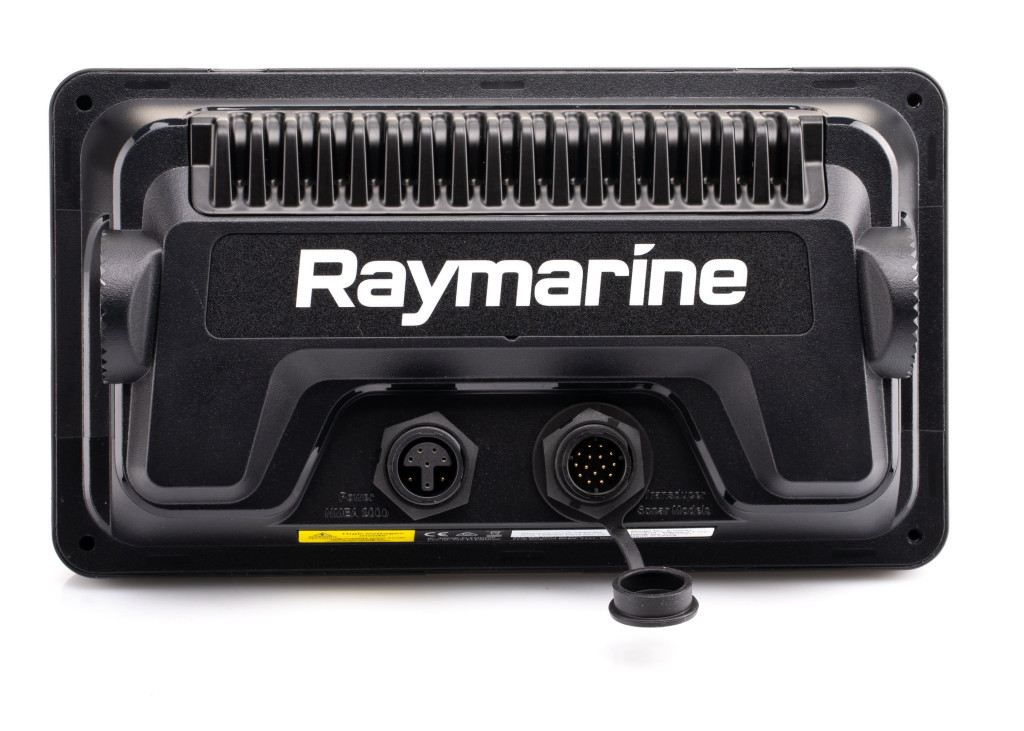

Data connections
SeaTalkng / NMEA 2000	1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi	1 x 802.11/b/g/n
Transducer	1 x 15-pin HyperVision connector

Hypervision
350 kHz (Standard) range	RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) range	RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar channels	Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz range	Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
Frequencies	1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
Power	1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W

Storage
External	1 x MicroSDXC card slot

Environmental
Operating temperature range	-25°C (-13°F) to +55°C (+131°F)
Storage temperature range	-30°C (-22°F) to +70°C (+158°F)
Humidity	up to 93% @ 40°C (+104°F)
Waterproof rating	IPx6, IPx7

GPS Receiver
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Channels	Multiple - ability to simultaneously track up to 28 satellites
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, GLONASS, Beidou
SBAS compatibility	EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition	Automatic
Almanac Update	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Cold start	< 2 minutes

Conformance
Standards	EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
