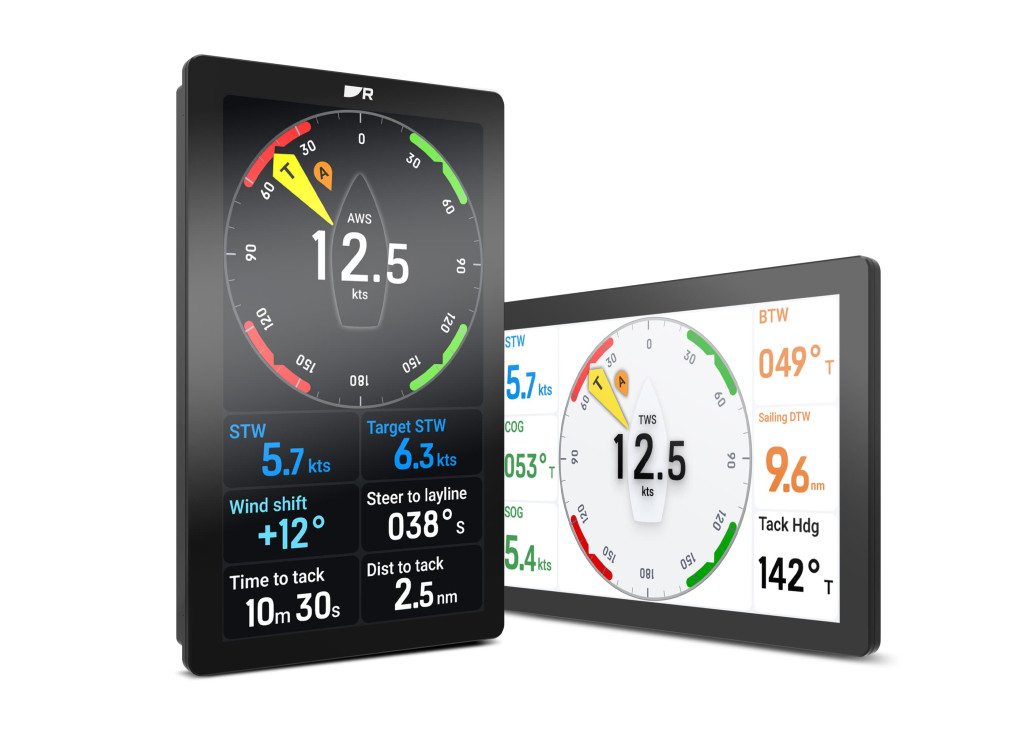

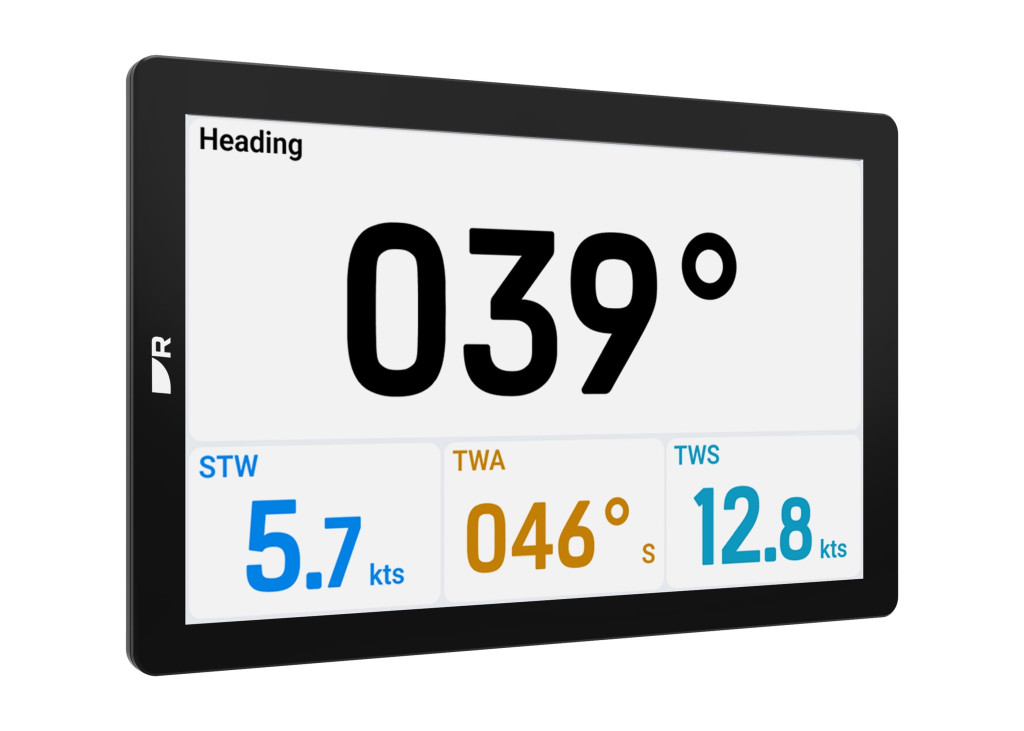

Raymarine Alpha 9” Performance Display

The Ultimate, Award-Winning Sailing Display

Alpha Performance Displays are our most versatile marine data displays. High-bright touchscreen instruments with wide view angles offer excellent visibility from anywhere onboard. Alpha's extensive data dashboard options and widgets make critical sailing, navigation, and engine data easy to interpret at a glance.

Winner of the prestigious Dame Award, the jury of marine industry experts said; "We are impressed with the Alpha Performance Display System’s performance given its lower-than-expected price point, making hi-res big screen sailing data accessible to a wider base of users."

A network of possibilities

Use your Alpha Performance Display as part of a connected Axiom chartplotter network and visualize your navigation, autopilot controls and boat systems data with stunning clarity.

NEW - Alpha Autopilot Controls

Launching with Alpha 3.0, boaters can now benefit from an exciting new feature – autopilot control – Alpha's big, bold and bright displays make seeing your autopilot controls either on-deck, at the mast and at the helm easy.

Alpha & Raymarine Evolution Autopilots

A match made in heaven. Connect your existing Alpha Performance Display to your Evolution Autopilot System for instant access to all operating modes.

A network of possibilities

Use your Alpha Performance Display as part of a connected Axiom chartplotter network and visualize your navigation, autopilot controls and boat systems data with stunning clarity.

NEW - Alpha Autopilot Controls

Launching with Alpha 3.0, boaters can now benefit from an exciting new feature – autopilot control – Alpha's big, bold and bright displays make seeing your autopilot controls either on-deck, at the mast and at the helm easy.

Alpha & Raymarine Evolution Autopilots

A match made in heaven. Connect your existing Alpha Performance Display to your Evolution Autopilot System for instant access to all operating modes.

A network of possibilities

Use your Alpha Performance Display as part of a connected Axiom chartplotter network and visualize your navigation, autopilot controls and boat systems data with stunning clarity.

Optimum Performance

High Visibility

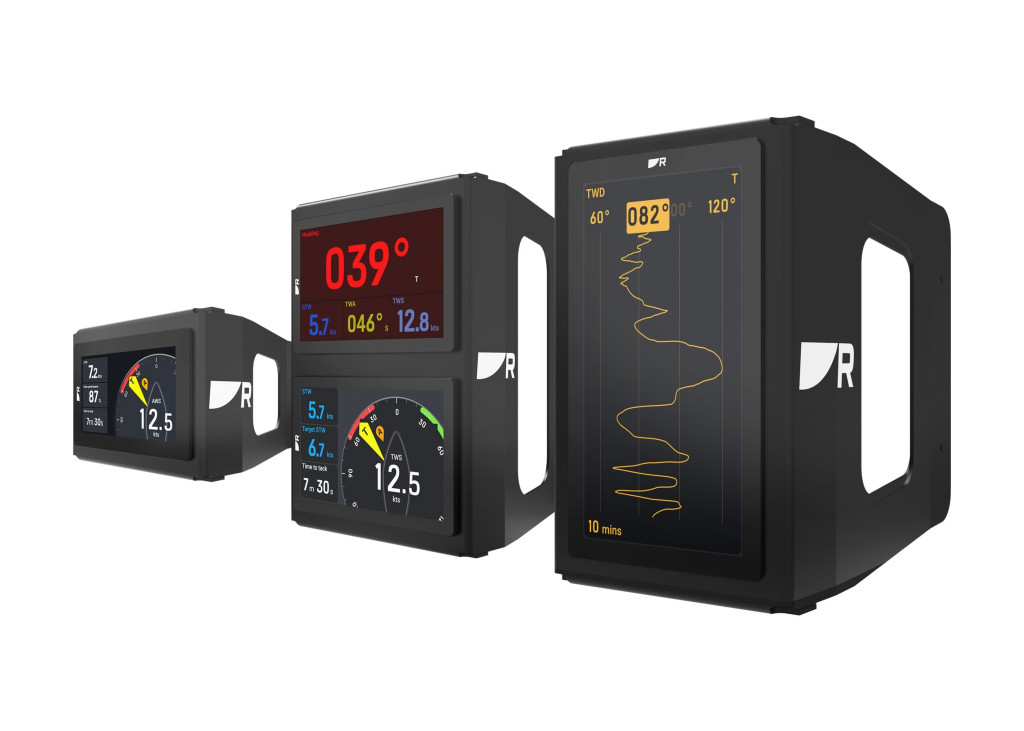

Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote location

Rugged Build

Tested to the extreme and built with our exclusive HydroTough^TM nano-coating that repels water and oils for reliable touchscreen control

Fully Scaleable

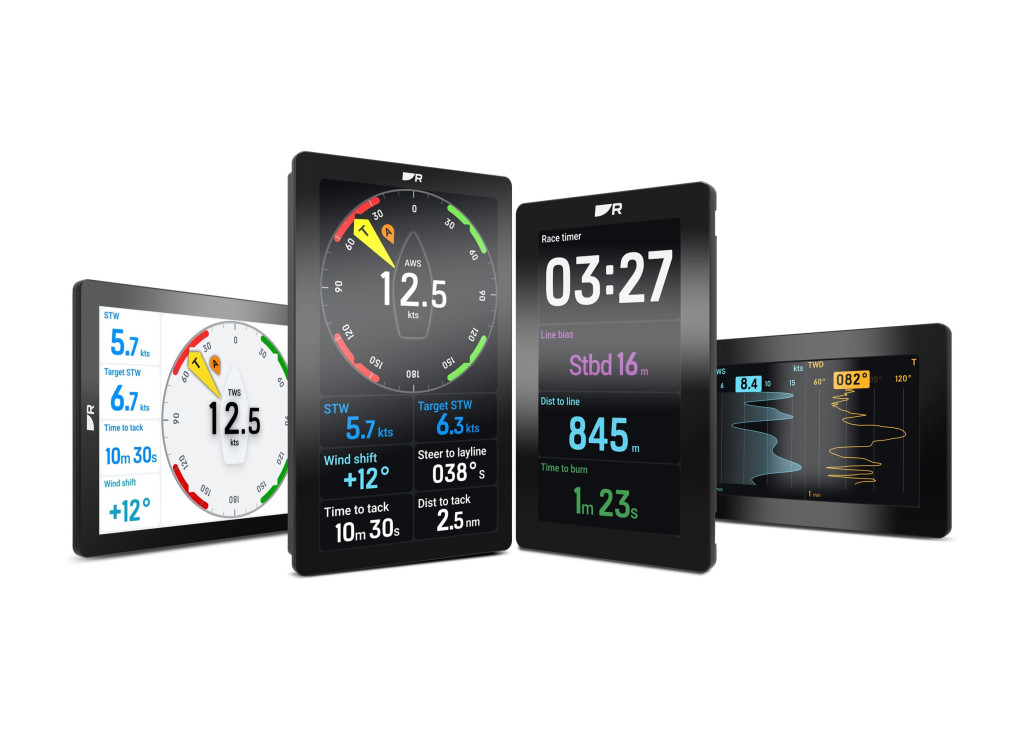

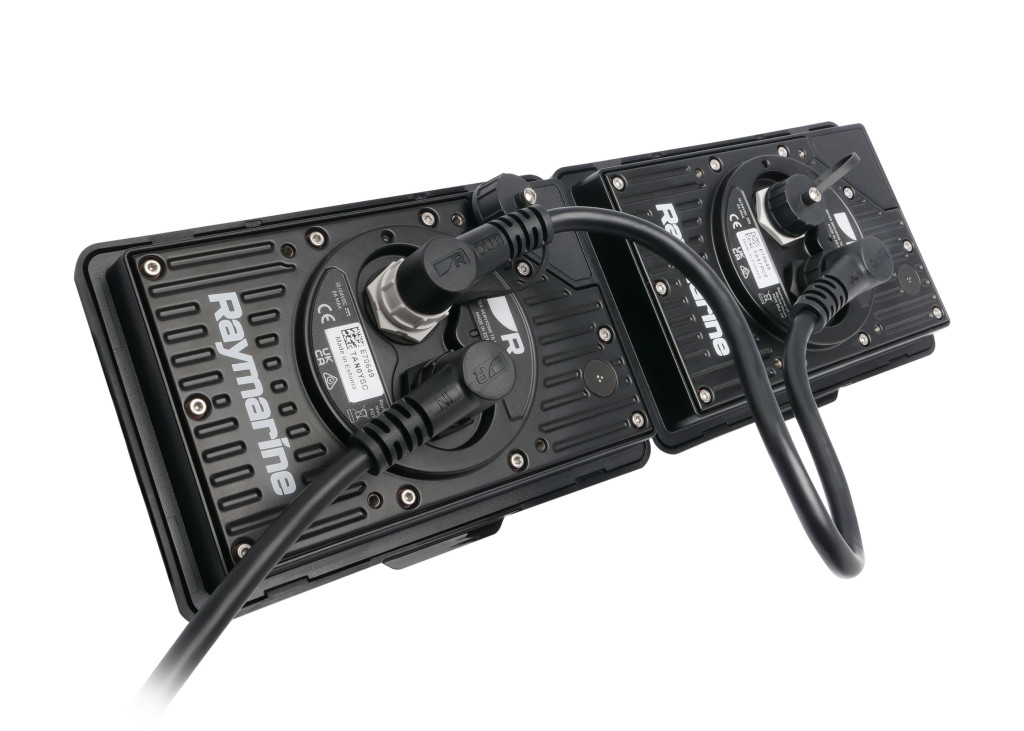

A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displays

Be a Better Sailor

Tactical Awareness

Intuitively designed graphical instrument displays, aimed at enhancing tactical awareness and facilitating better decision-making on the water.

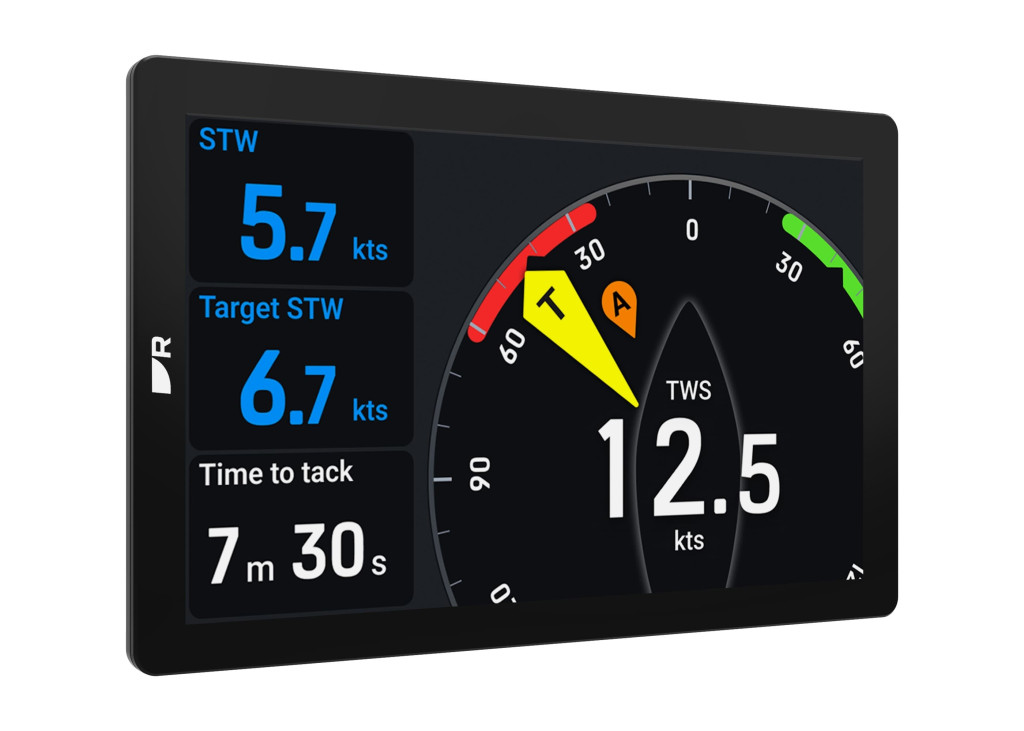

Dynamic Wind

The dynamic wind performance display provides automatic zoom to the most critical part of the instrument display based on wind direction.

SailPoint mode

Optimise your sailing performance with SailPoint™ mode. SailPoint mode provides you with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind. Watch the video to find out more.

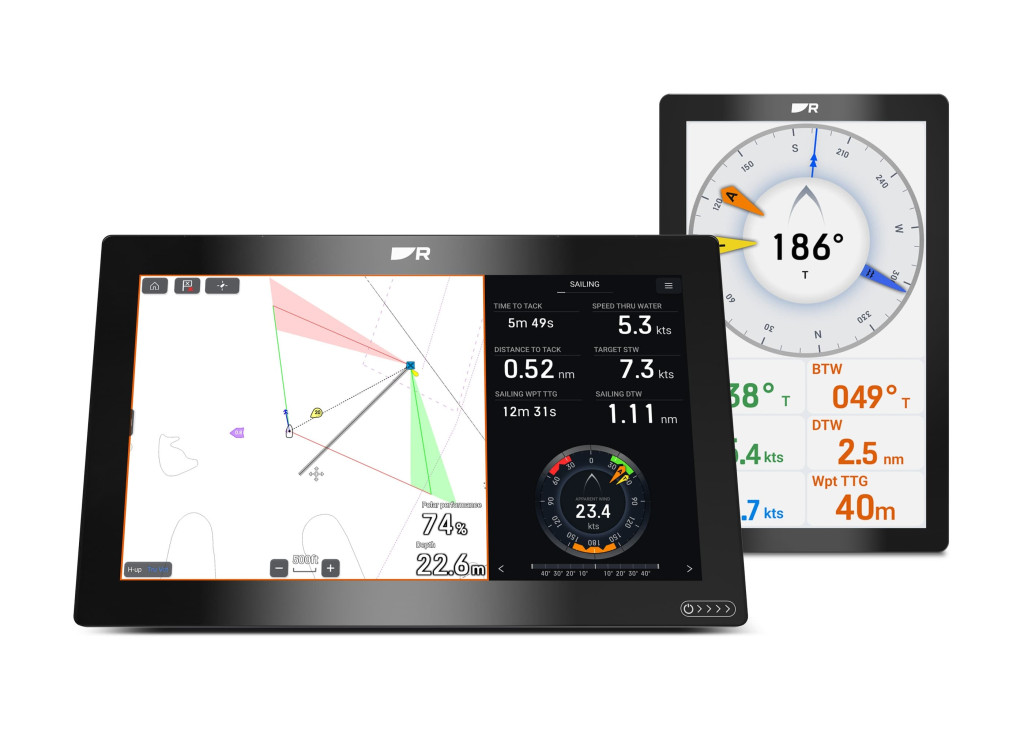

Alpha and Axiom Systems

Alpha Performance Displays are companion instruments for Raymarine Axiom chartplotters. A simple RayNet Ethernet cable between Axiom and the Alpha display gives Alpha access to Axiom's connected transducers and NMEA2000/SeaTalk NG devices.

Once paired with an Axiom network, you can customise and configure your Alpha display into powerful performance sailing, navigation, and engine data instrument.



What's in the box?

The following parts are supplied with the Alpha 7" and 9" displays.

1	Alpha Series performance display
2	Suncover
3	Waterproof gasket
4	Documentation pack
5	4 x Threaded studs, M4 x 40 mm
6	4 x Thumb nuts
7	* Supplied with Alpha 7 only — 2 x mounting brackets
8	* Supplied with Alpha 9 only — 2 x mounting brackets



Info

Article number:

RM-E70650

Display size (inch):

9

Water resistance rating:

IPX6 & 7

Brightness (nit):

1500

Display Resolution:

1280 x 720

Website:

https://www.raymarine.com/en-gb/our-products/marin...

Weight:

1.18 g/pcs

Technical specification

Physical
Width	Alpha 7" display — 120.1 mm (4.72 in) Alpha 9" display — 148.9 mm (5.86 in)
Height	Alpha 7" display — 188.4 mm (7.42 in) Alpha 9" display — 235.9 mm (9.29 in)
Depth	Alpha 7" display — 32 mm (1.26 in) Alpha 9" display — 34 mm (1.34 in)
Port separation distance	5.71 mm (0.22 in)
Weight	Alpha 7" display — 0.72 kg (1.59 lbs) Alpha 9" display — 1.18 kg (2.60 lbs)

Power
Nominal supply voltage	12 V / 24 V dc
Operating voltage range	10.8 V to 32 V dc
Current	Alpha 7" display — 0.84 A (nominal) @ 12 V dc / 0.43 A (nominal) @ 24 V dc Alpha 9" display — 1.02 A (nominal) @ 12 V dc / 0.52 A (nominal) @ 24 V dc
Power consumption	Alpha 7" display — 10 W (maximum) Alpha 9" display — 12 W (maximum)
Inline fuse rating	8 A
Thermal breaker rating	8 A

Network
Axiom	The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
Data connections	1 x Daisy-chain connector. 1 x Power / RayNet Ethernet connector

Environmental
Operating temperature range	-25°C to +55°C (-13°F to +131°F)
Storage temperature range	-30°C to +70°C (-22°F to +158°F)
Relative humidity	93% Max
Waterproof rating	IPx6 and IPx7

Display
Display screen	Alpha 7" display — 7” IPS TFT LCD Alpha 9" display — 9” IPS TFT LCD
Brightness / Luminance	1500 nits / 1500 cd/m2
Viewing angles	Portrait — 85 + / 85 + Landscape — 85 + / 85 +
Resolution	Alpha 7" display — 1024 (H) x 600 (V) Alpha 9" display — 1280 (H) x 720 (V)
PPI (Pixels Per Inch)	Alpha 7" display — 170 PPI Alpha 9" display — 163 PPI
Color	24-bit color (16.7 million colors)
Refresh rate	60 Hz

Conformance
Europe, Australia & New Zealand	EN 60945:2002
Canada	ICES-003
USA	CFR47 Part 15
Japan / China	IACS section E10
Product markings	UKCA CE Australian Tick WEEE Directive Industry Canada
