Philippi Coupling socket 2-pol. - 692

Bundle offers

• Details
• Data
• Technical specification

Details

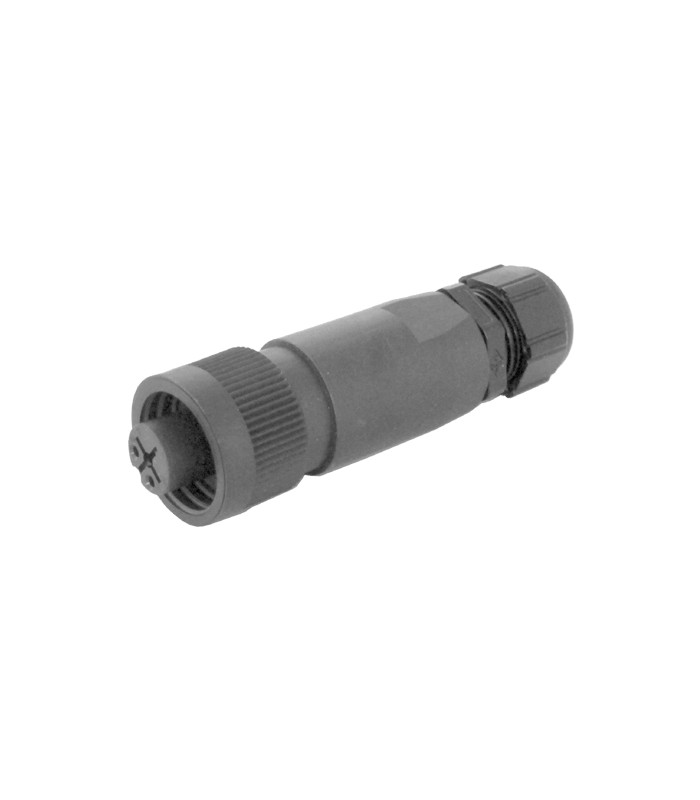

Philippi Coupling socket 2-pol. - 692

For the separation of electrical cables on board yachts, waterproof circular connectors are preferably used. The glass-fibre reinforced plastic design ensures high durability in maritime use. The 2- and 4-pole versions are suitable for the supply line to the position lights. The 7-pole version for wind measuring systems and similar applications. The 2+PE version is only used for disconnecting the shore connection (230V).

Technical data

Number of poles	2+PE	2	4	7
Connection cross section  max.	2,5mm²	2,5mm²	2,5mm²	1,50mm²
Connection type	screws	screws	screws	screws
Cable aperture	10-12mm	6-8mm	6-8mm	6-8mm
Connection surface	Ag	Ag	Ag	Ag
Connection type	IP67	IP67	IP67	IP67
Housing material	PBT-gv	PBT-gv	PBT-gv	PBT-gv
Rated current per contact	16A	16A	16A	10A
Rated voltage accorfing to VDE 0110/77	230V	50V	50V	50V
Flammability to  UL-94	Self extinguishing	Non combustible	Non cumbustible	Non combustible

Data

Energy distribution category:

PHI-445024405

Number of pins:

2 pin

IP rating:

IP67

Website:

https://www.philippi-online.de/en/produkt/coupling...

Weight:

47 g/pcs

Technical specification

Weight	0,047 kg
Dimensions	10 × 3 × 3 cm
Brand	Philippi
Voltage	AC230V
Pole	2
