B&G Zeus³S Glass Helm 19" System Pack

Supreme Performance

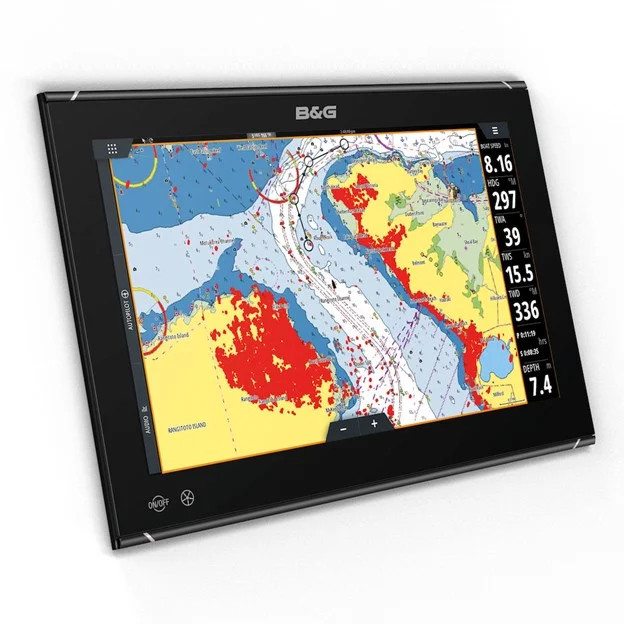

The new Zeus³S Glass Helm display has twice the previous version’s performance, delivering category leading response times for incredibly smooth transitions. It gives you instant access to the sailing and system information you need, when you need it, all thanks to the new iMX 8 integrated six-core processor.

Unbeatable sailing performance

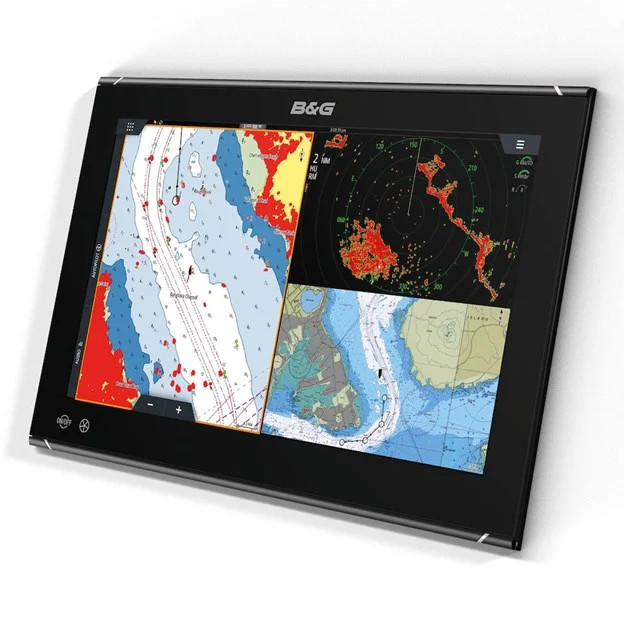

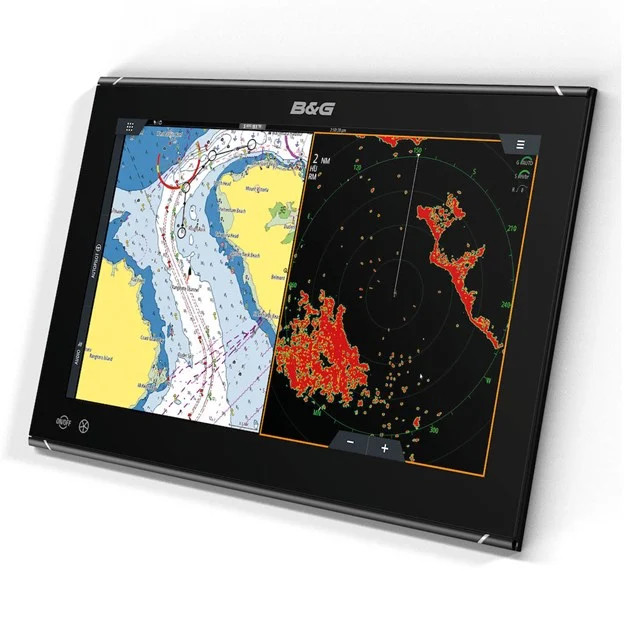

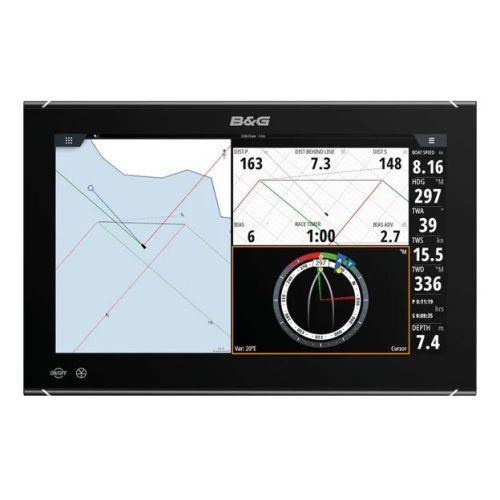

Zeus³S Glass Helm delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen visible, even if you’re wearing polarised sunglasses. Experience stunning clarity with full HD resolution, and the option to combine up to six panels in a split-screen layout. Navigate charts and use your sailing features such as RacePanel and SailSteer, whilst also viewing connected systems such as autopilot, radar and sonar, with a single touch.



Fully Connected

Built-in wireless connectivity links Zeus³S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, autopilot and much more.

Key Features

• The Fastest / Most Responsive B&G System yet
• Large Wide Format Displays (16”/19”/24)” – all in Full HD 1920x1080
• Best in class visibility from all angles with and without polarized glasses
• Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
• Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
• 6-Way display panel split
• Built in Wi-Fi
• HDMI and Video Inputs
• Connect with smartphones, tablets, and internet hotspots
• Kit includes ZC2 keypad, GPS antenna, and chart card reader



What's in the box?

• MI10 Dual Micro-SD Card Reader
• B&G ZC2 remote
• LABEL ZEUS3S-19 GH SYSTEM PACK
• ZG100 GPS Antenna with Compass

Info

Article number:

BG-000-15130-001

Display size (inch):

19

Network Protocol:

NMEA2000

GPS:

Igen

Website:

https://www.bandg.com/en-gb/bg/type/chartplotter/z...

Technical specification

Category	Details
Display
Backlight Color	White
Display Resolution	1920x1080
Display Size	19 inches
Screen Brightness	1200 nits
Viewing Angles	80° top/bottom, 80° left/right
Connectivity
Bluetooth	Internal
Ethernet Ports	3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
Wi-Fi	Internal 802.11b/g/n
N2K PG Ns	Receive only: 59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage. Transmit and Receive: 61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration. Transmit only: 65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183 Supported Sentences	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	HDMI Video in from a PC
SD Card Storage	1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots, max. 32GB each, >32 GB format to NTFS
Video	2x composite video (BNC), 1x high definition video (1080p, HDCP 1.4, HDMI-A), 1x high definition video output (1080p, no HDCP, HDMI-A)
Autopilot
Maneuvers Turn Patterns	Tack / Gybe, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals
Approvals Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Electrical
Power Consumption max	50 W ± 4 W
Recommended Fuse Rating	7 A @ 12 V DC
Supply Voltage	10 - 32 V DC
Environment
Operating Temperature Range	-15°C to +55°C (5°F to 131°F)
Shock Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof Rating	IPX6 on the front (when panel mounted correctly with only the front exposed), Rear not waterproof
MFD
AIS	Receive AIS data over NMEA 2000 or NMEA 0183 (AIS is not bridged to N2K)
Autopilot	Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included	World basemap
Digital Switching	BEP C-Zone, Naviop
GPS	External GPS required
Internal Storage	16 GB
Multimedia	via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUS & NZ only)
Sonar Compatibility	External echo sounder module or connection to an MFD with built-in echo sounder that can share sonar over Ethernet is required.
Waypoints, Routes, Tracks	6000 waypoints, 500 routes with 100 max route points, 50 tracks with up to 12,000 track points
Weather	SiriusXM (USA only), GRIB, Predict Wind
Physical
Compass Safe	50 cm (20")
Dimensions W x H x D	478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27”) With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45”)
Mounting Type	Panel or Bracket mount (use optional heavy-duty bracket 000-13547-001)
Weight	4.8 kg (10.5 lbs.)
Other
Interface	Touch screen, ZC1 or ZC2 controller via NMEA 2000
Languages	Standard Language Pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks: Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese. Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish. Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian. Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian.
