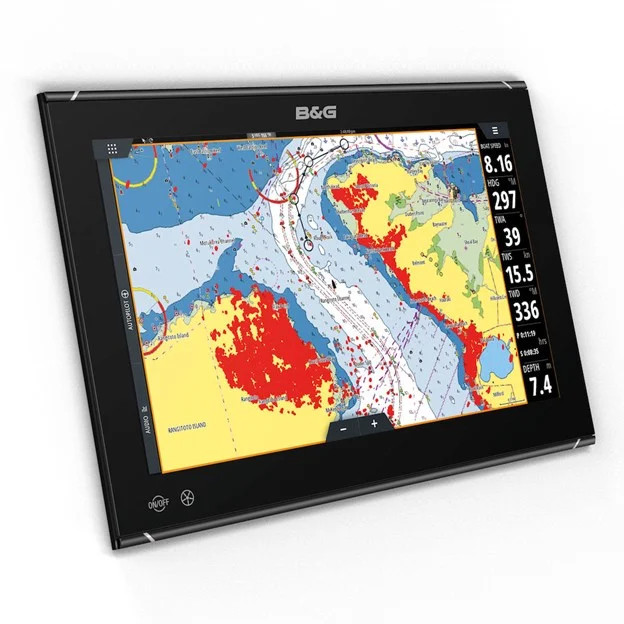

B&G Zeus³S Glass Helm 19" Display Only

Supreme Performance

The new Zeus³S Glass Helm display has twice the previous version’s performance, delivering category leading response times for incredibly smooth transitions. It gives you instant access to the sailing and system information you need, when you need it, all thanks to the new iMX 8 integrated six-core processor.

Unbeatable sailing performance

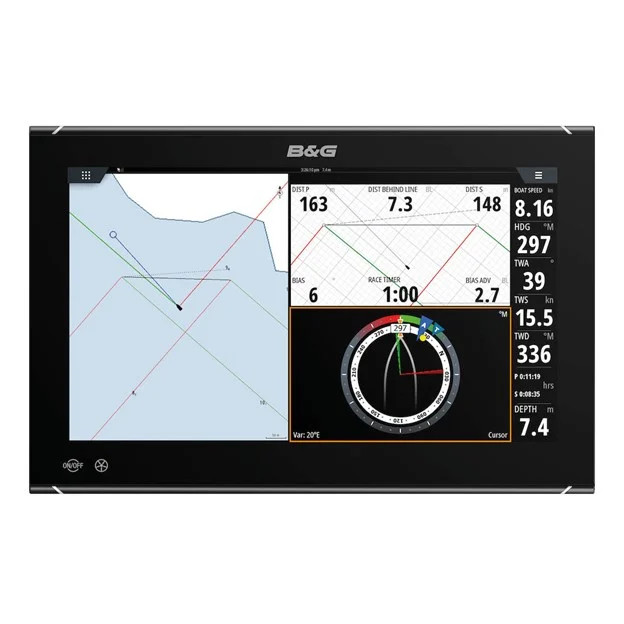

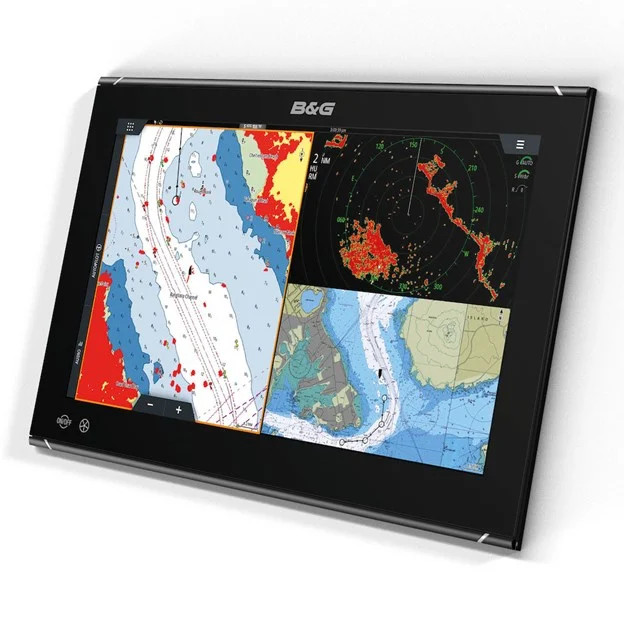

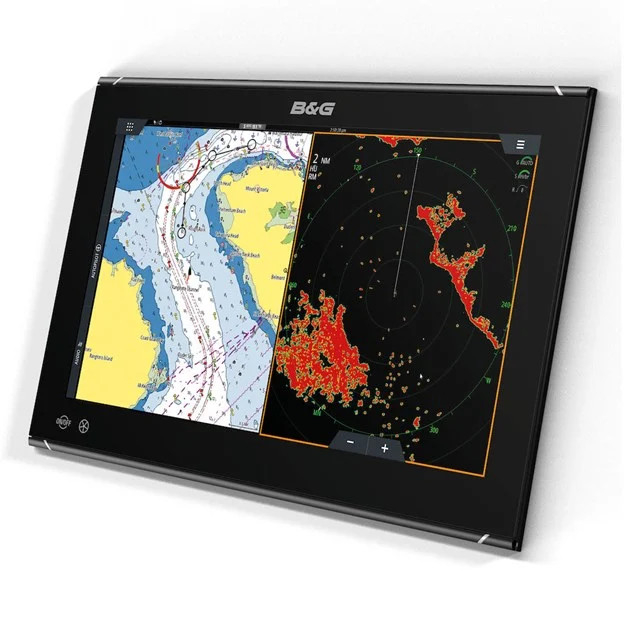

Zeus³S Glass Helm delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen visible, even if you’re wearing polarised sunglasses. Experience stunning clarity with full HD resolution, and the option to combine up to six panels in a split-screen layout. Navigate charts and use your sailing features such as RacePanel and SailSteer, whilst also viewing connected systems such as autopilot, radar and sonar, with a single touch.



Fully Connected

Built-in wireless connectivity links Zeus³S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, autopilot and much more.



Key Features

• The Fastest / Most Responsive B&G System yet
• Large Wide Format Displays (16”/19”/24)” – all in Full HD 1920x1080
• Best in class visibility from all angles with and without polarized glasses
• Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
• Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
• 6-Way display panel split
• Built in Wi-Fi
• HDMI and Video Inputs
• Connect with smartphones, tablets, and internet hotspots



What's in the box?

• NMEA 2000 Micro-C Low Loss 4 Way Joiner
• N2K-PWR-RD Network Power Node
• TR-120-KIT Network Terminator Kit
• NMEA 2000 6ft Network Extension Cable
• RJ45 - Ethernet Adapter Cable
• MO16/19/24 Cable Retention Bracket
• Rear mount bracket kit for MO16/19/24 monitors

Info

Article number:

BG-000-15050-001

Display size (inch):

19

Network Protocol:

NMEA2000

GPS:

Igen

Website:

https://www.bandg.com/en-gb/bg/type/chartplotter/z...

Weight:

4.8 kg/pcs

Technical specification

Feature	Details
Display
Backlight Color	White
Display Resolution	1920x1080
Display Size	19 inches
Screen Brightness	1200 nits
Viewing Angles	80° top/bottom, 80° left/right
Connectivity
Bluetooth	Internal
Ethernet Ports	3 x 100 Mbits/s ports, RJ 45 (Adapt to 5 pin yellow using adapter cable 000-11246-001)
Connectivity Wi-Fi	Internal 802.11b/g/n
N2K PG Ns	Receive only: 59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, etc.
NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM.
NMEA 2000 Connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	HDMI Video in from a PC
SD Card Storage	1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. Max. 32GB each. >32 GB format to NTFS
Video	2x composite video (BNC), 1x high definition video (1080p, HDCP 1.4, HDMI-A), 1x high definition video output (1080p, no HDCP, HDMI-A)
Autopilot
Maneuvers Turn Patterns	Tack / Gybe, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals	Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Electrical
Power Consumption max	50 W ± 4 W
Recommended Fuse Rating	7 A @ 12 V DC
Supply Voltage	10 - 32 V DC
Environment
Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Shock Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof Rating	IPX6 on the front (when panel mounted correctly with only the front exposed) Rear not waterproof
MFD
AIS	Receive AIS data over NMEA 2000 or NMEA 0183 (AIS is not bridged to N2K)
Autopilot	Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included	World basemap
Digital Switching	BEP C-Zone, Naviop
GPS	External GPS required
Internal Storage	16 GB
Multimedia	via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)
Sonar Compatibility	External echo sounder module or connection to an MFD with built-in echo sounder that can share sonar over Ethernet is required.
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Weather	SiriusXM (USA only), GRIB, Predict Wind
Physical
Compass Safe	50 cm (20")
Dimensions	W x H x D 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27”) With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45”)
Mounting Type	Panel or Bracket mount (use optional heavy-duty bracket 000-13547-001)
Weight	4.8 kg (10.5 lbs.)
Other
Interface	Touch screen, ZC1 or ZC2 controller via NMEA 2000
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
