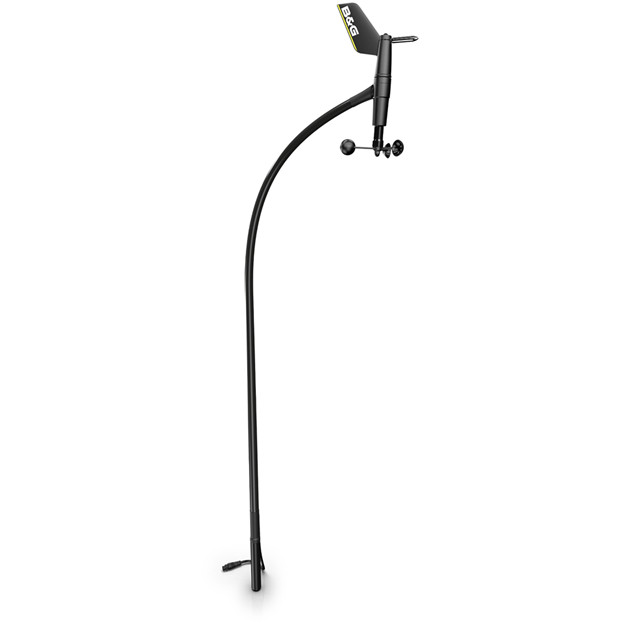

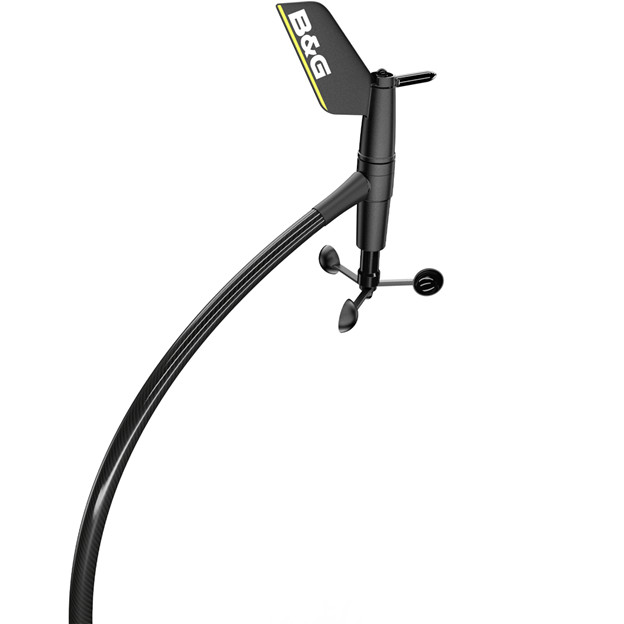

B&G WS730S Ocean Spec Vertical Wind Sensor (1450mm)

Csomagajánlatok

• Details
• Info
• Technical specification

Details

B&G WS720S Ocean Spec Vertical Wind Sensor

WS700 Series Wind Sensors

The WS700 series is the ultimate wind sensor for performance sailing, providing the most accurate wind angle and speed data. The new one-piece vane design gives superb aerodynamics and stability, as a result of over 200,000 hours of combined design and wind tunnel testing.

Higher altitude for clearer readings

The vertical spar minimises the effect of sail-plan disturbance on wind measurement ensuring the best performance with minimum calibration. This means reliable True Wind Direction to make precise race calls when needed and better steer-to-wind performance in all conditions when on autopilot.

Flexibility

Choose from 4 options of vertical high-modulus carbon spars from 0.8 to 1.8m** in standard or ocean specification.

WS700 series follows the same physical mounting as previous models (VHMU) providing an easy upgrade path.

**Spar sizes are indicative

Wide compatibility

Connect directly to H5000 or WTP3 via a NMEA 0183 input or to NMEA 2000 via the wired interface (sold separately).

Straightforward installation

WS700 connects to your instrument system via a single mast cable, available in 4 different lengths from 25 to 80m.

Key Features

• High precision and accuracy
• High performance aerodynamic design
• Ocean Race proven
• Straightforward installation

Info

Article number:

BG-000-14984-001

IP rating:

IPX6

Website:

https://www.bandg.com/en-eu/bg/type/instrument-sen...

Weight:

500 g/pcs

Technical specification

Category	Details
Connectivity
NMEA 0183 Sentences Supported	MWV, R at 10Hz
Approvals
Approvals Compliance	IEC/EN 60945
Electrical
Power Consumption Typical	< 0.2W
Supply Voltage	12V DC (9 - 16V DC)
Environment
Operating Temperature Range	-15°C to +55°C (5°F to 131°F)
Storage Temperature Range	-20°C to +60°C (4°F to 140°F)
Waterproof Rating	IPX6
Physical
Dimensions W x H x D	356 x 1450 x 22mm (14 x 57 x 1") nominal
Weight	0.5 kg (1.1 lbs)
