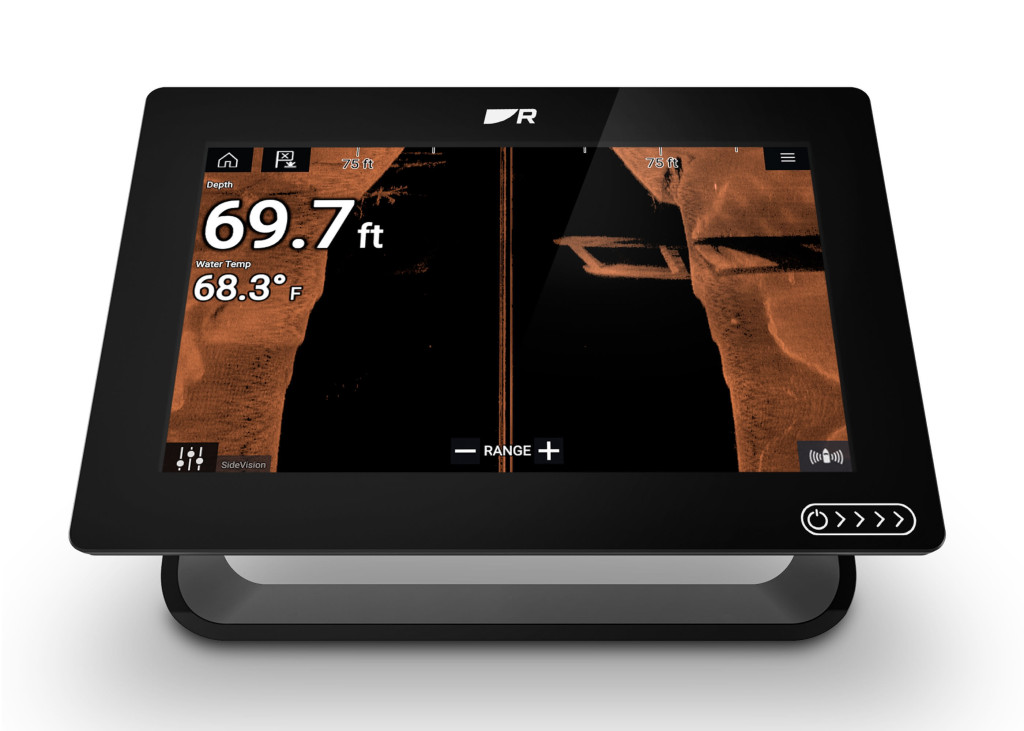

Raymarine AXIOM+ 9, Multi-function 9" Display (Without Chart)

Manufacturer:

RAYMARINE

Manufacturer Article number:

E70636

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

Axiom®+ is a new generation of Axiom chartplotters upgraded with all-weather higher resolution displays that are 25 percent brighter than the previous generation. Axiom+ displays are equipped with a powerful quad-core processor for industry-leading speed and responsiveness.

Details

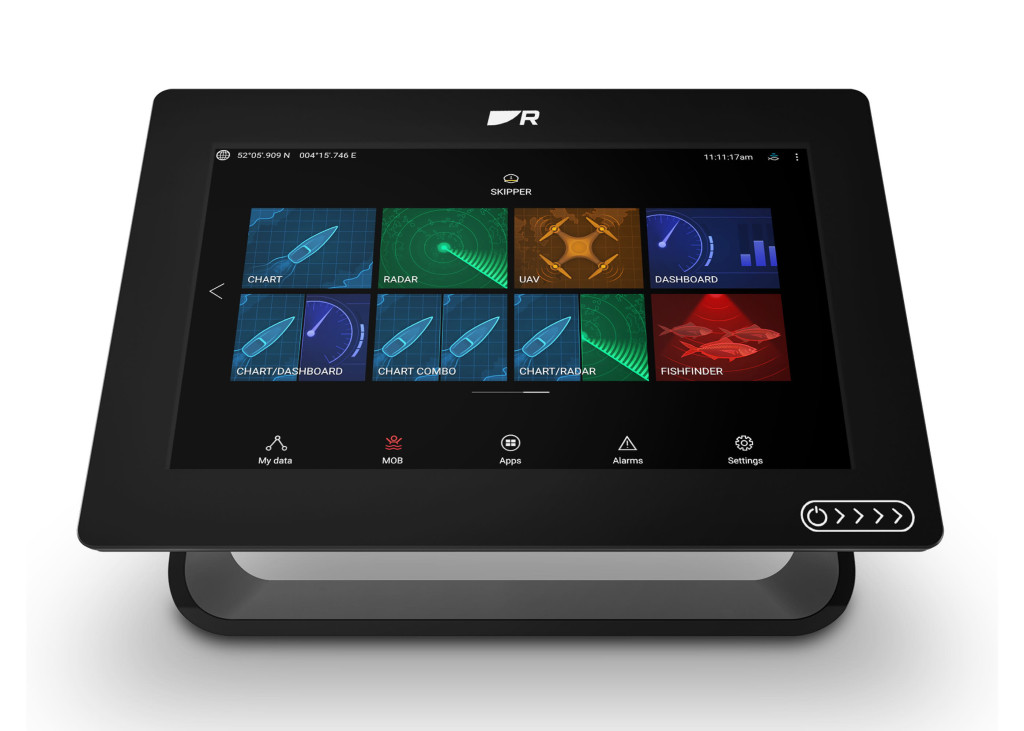

AXIOM+ 9, Multi-function 9" Display

All-in-One Chartplotter, Plus More

Seamlessly redraw charts and expand Axiom+ with solid state radar, and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ features the renowned LightHouse operating system, so you can easily navigate and expand your system.

Performance Tuned

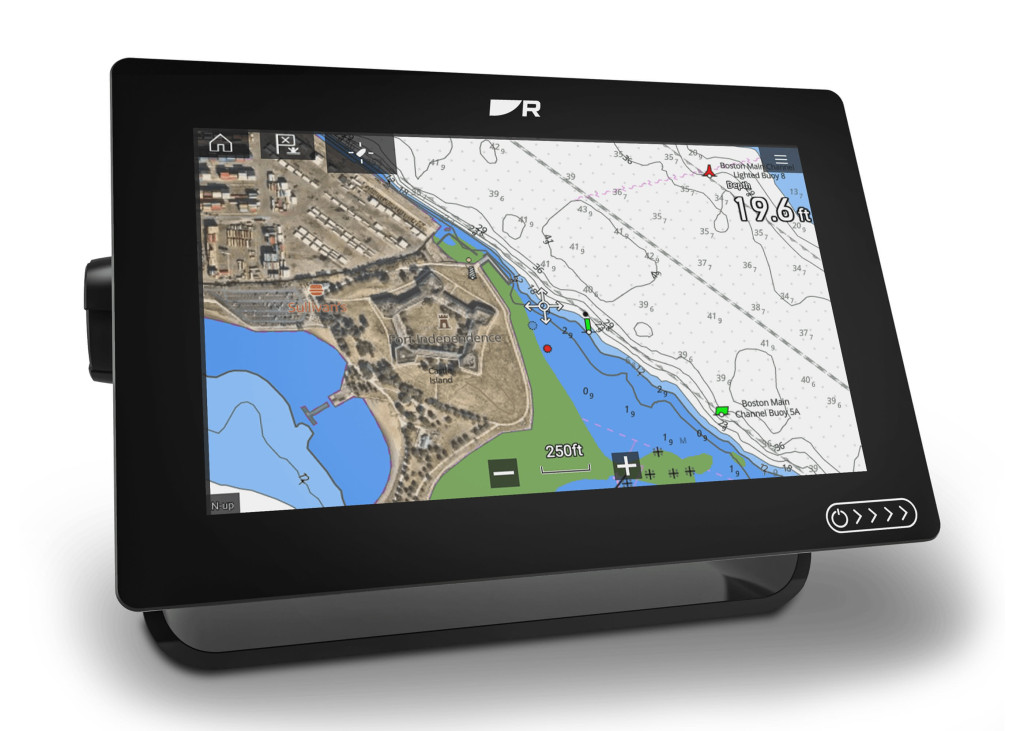

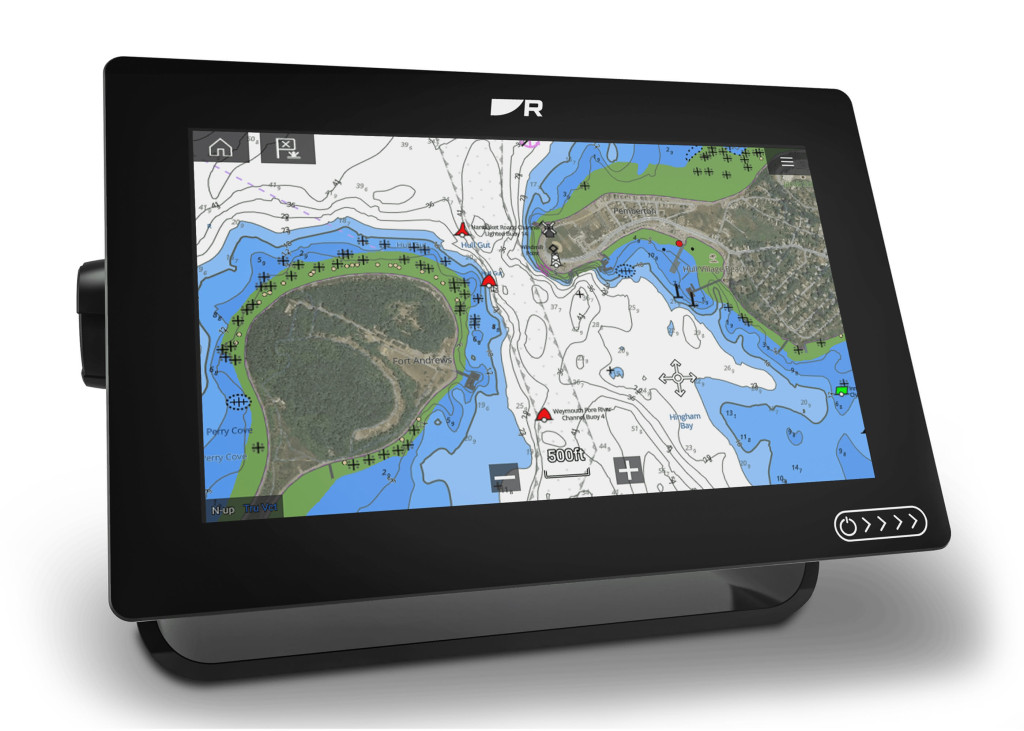

Fast and fluid chart redraw of LightHouse, Navionics and C-MAP electronics charts.

Powerful quad-core processor, plus increased onboard storage for personal data and apps.

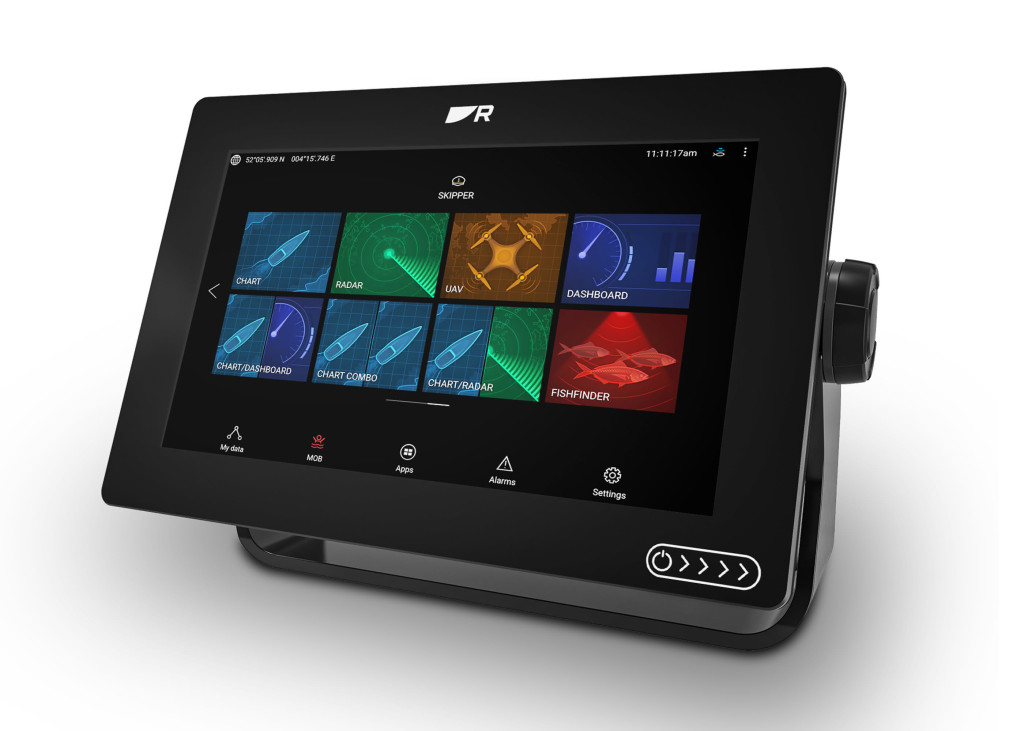

Smart and intuitive LightHouse OS makes navigating easy.

Ready to Expand - Network with multiple displays, radars, engines, marine cameras, and more.

Maximum Visibility

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.

Improved viewing with new LightHouse color themes, including Day, Dusk and Night mode.

25 percent brighter (up to 1,800 nits)

HydroTough^TM

Axiom+ features HydroTough nano-coated, impact-resistant screens that dispels water, oil, and smudges.

All-weather HydroTough technology delivers improved color and contrast and accurate touch controls - even when wet.

HydroTough display coating for wet weather touch screen operation

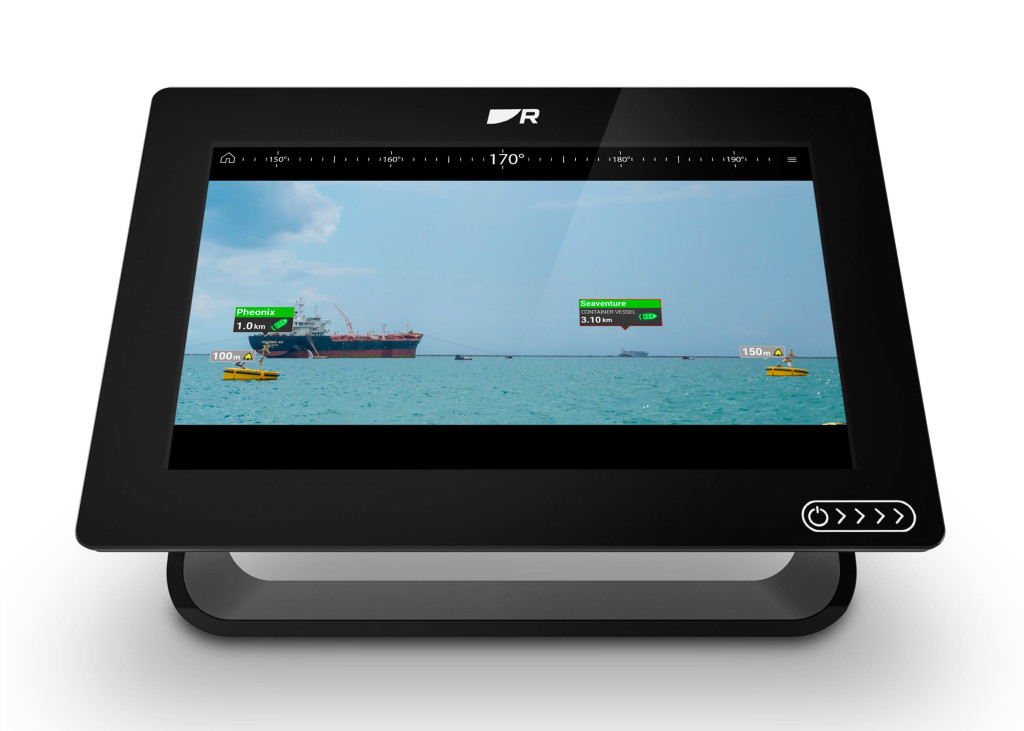

Axiom+ 9 display ClearCruise Augmented Reality

Make Smarter Navigation Decisions

Add an AIS (automatic identification receiver) and safely navigate busy waterways with AIS target overlays

Upgrade to ClearCruise Augmented Reality and visualize AIS targets, navigation aids, and waypoints in high-definition video.

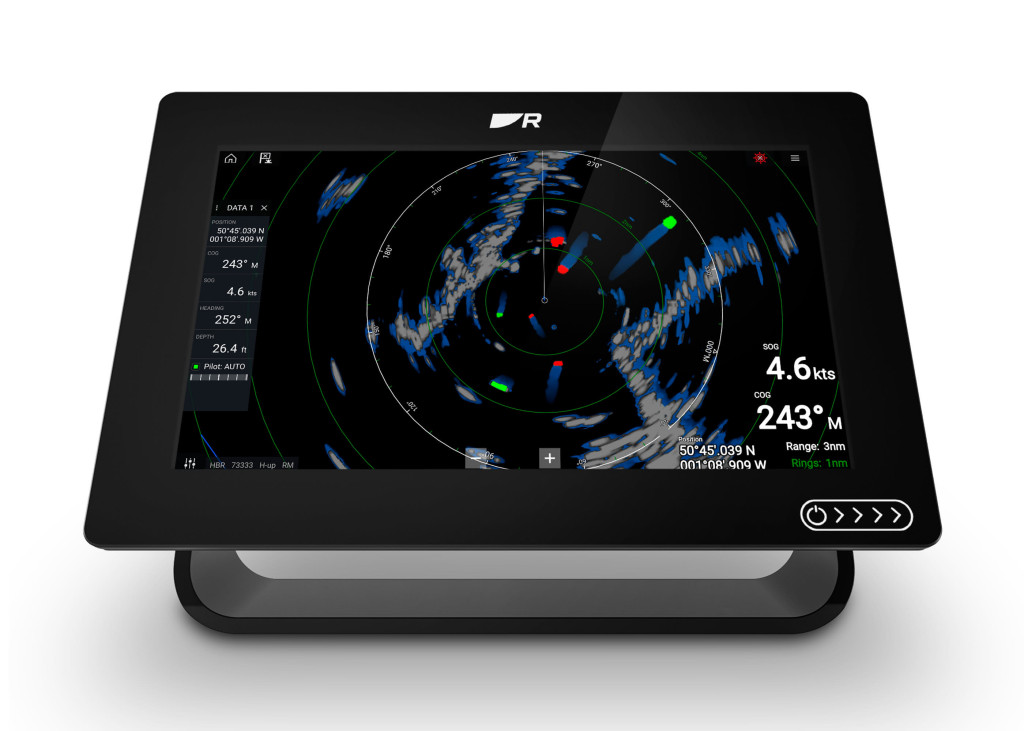

Avoid obstacles with optional Quantum and Cyclone radars and Doppler target tracking.

Axiom+ 7 installed on sailing yacht helm alongside the p70R autopilot

What's in the box?

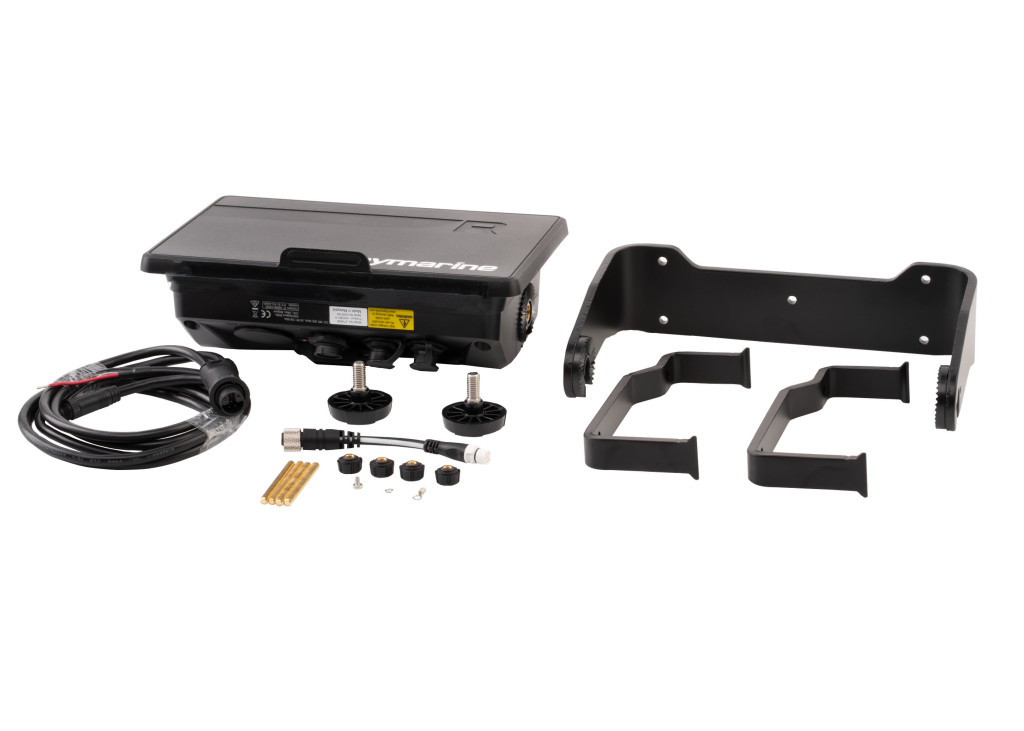

1	MFD (Chartplotter)
2	Trunnion bracket
3	Trunnion knobs x 2
4	Suncover
5	Documentation
6	Panel mount gasket
7	Rear mounting brackets for 9" display
8	Rear mounting brackets for 12" display
9	Threaded studs (M5x58) x 4
10	Thumb nuts (M5) x 4
11	Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
12	DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)

Info

Article number:

RM-E70636

Display size (inch):

Display type :

Widescreen HD

Water resistance rating:

IPX6 & 7

Brightness (nit):

1500

Display Resolution:

1280 x 720

Website:

https://www.raymarine.com/en-us/our-products/chart...

Technical specification

Physical
Dimensions (Trunnion mounted)	Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions (Surface/Flush mounted)	Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Accessory connection	USB Micro B
Ethernet connection	RayNet (10/100 Mbits/s)
External storage	MicroSDXC card slot x 1

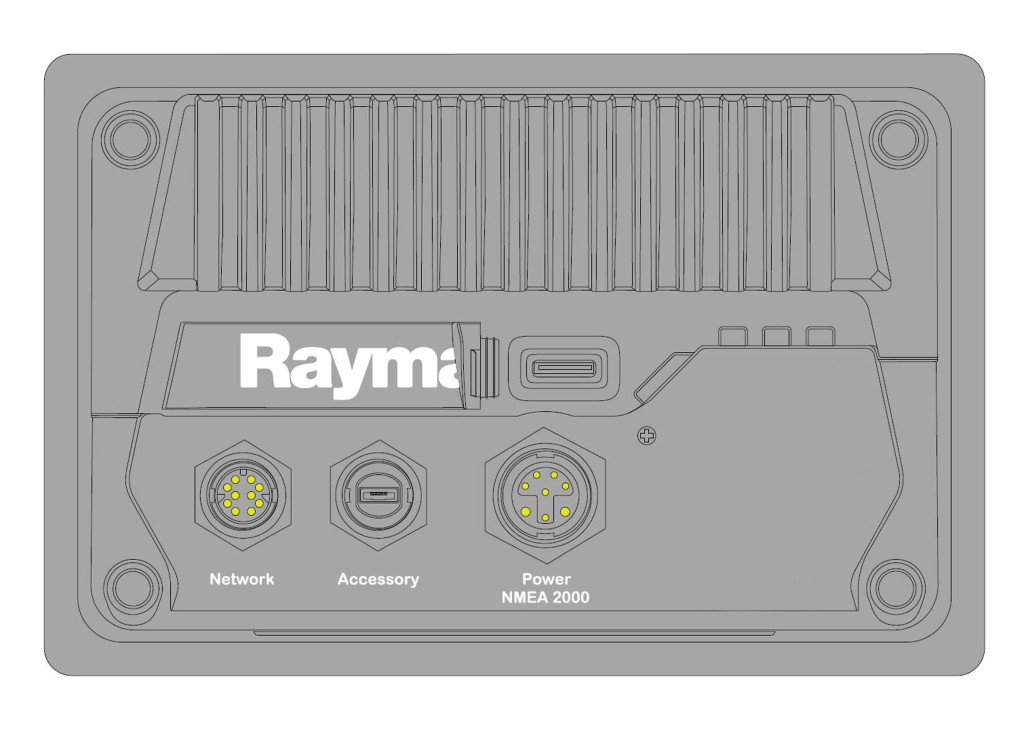

NMEA 2000 connection	DeviceNet (male connector built into power cable)
Wireless connections	Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage	16 GB Solid State (14 GB usable)
Transducer connection	25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers

LCD
Size (diagonal)	Axiom+ 7: 7" Axiom+ 9: 9" Axiom+ 12: 12"
Resolution	Axiom+ 7: WSVGA 1024 x 600 Axiom+ 9: Widescreen HD 1280 x 720 Axiom+ 12: WXGA 1280 x 800
Viewing angle	Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°
Illumination	Axiom+ 7: 1800 nits / 1800 cd/m2 Axiom+ 9:1500 nits / 1500 cd/m2 Axiom+ 12: 1800 nits / 1800 cd/m2
Protective coating	HydroToughTM Oleophobic
Type	IPS (In-Plane Switching)
Color depth	24-bit
Number of simultaneous touches	2

Power
Power consumption	Axiom+ 7: 7.34 W Axiom+ 9: 8.95 W Axiom+ 12: 18.96 W
Operating voltage range	8 V dc to 16 V dc
Fuse rating	7 A
Nominal supply voltage	12 V dc
LEN (NMEA 2000 Load Equivalency Number)	1

Environmental
Operating temperature	-25°C to +55°C (-13°F to 131°F)
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Relative humidity	Up to 93% @ 40°C (104°F)
Waterproof rating	IPx6, IPx7

GPS
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)	WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels	Track up to 28 satellites simultaneously
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, GLONASS, Beidou
Almanac Update	Automatic
Signal Acquisition	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Refresh rate	10 Hz (10 times per second)
Time to first fix from cold start	< 2 minutes
